Product Code: 101172553

Explore the Schmersal BNS16 series safety sensor, designed for machine safety applications. This robust sensor features a thermoplastic enclosure and requires a prerequisite evaluation unit for operation. It is equipped with two openers and one shutter, utilizing a magnet as its actuating element. The BNS16 ensures secure connections through its screw terminal connector. With a switching voltage of 100 V AC/DC and a current of 0.4 A, it offers reliable performance with a switching capacity of 10 W. Ideal for engineers seeking dependable safety solutions in industrial settings.

Cable Note	All indications including the conductor ferrules.
eCl@ss Number, Version 11.0	27-27-27-04
eCl@ss Number, Version 9.0	27-27-27-04
ETIM 6.0	EC002549
ETIM 7.0	EC002549
Gross Weight (g)	145
Housing Construction Form	Block
Maximum Actuating Speed (m/s)	1
Maximum Fuse Rating	6 A gG D-fuse quick blow
Maximum Temperature (°C)	70
Minimum Ambient Temperature (°C)	-30
Minimum Temperature (°C)	-25
Net Weight (g)	55
No. of Auxiliary Contacts	1
No. of Safety Contacts	1
Nominal Output Current (A)	0.4
Nominal Power (W)	10
Rated Maximum Operational Voltage AC (V)	100
Rated Maximum Operational Voltage DC (V)	100
Rated Short-circuit Current (A)	1000
Sensor Height (mm)	114
Sensor Length (mm)	46
Switching Element	NO contact, NC contact
Switching Principle	Snap action
Thermal Test Current (A)	0.25
Utilisation Category	DC-13 \| AC-15
Working Principle	Inductive
Brand	SCHMERSAL
Actuator Type	Roller plunger S300
Contact Material	Silver
Degree of Protection	IP67
EAN	4030660000000
Enclosure Material	Light alloy die-casting
Maximum Ambient Temperature (°C)	80
Maximum Cable Cross Section (mm²)	2 x 2.5
Minimum Cable Cross Section (mm²)	1 x 0.75
Minimum Mechanical Life	20000000 Operations
Rated Impulse Withstand Voltage (kV)	6
Rated Insulation Voltage (V)	400
Series	BNS16
Standards	EN 81-20 / EN 81-50
Terminal Type	Cable

Presence Sensing Safety Devices

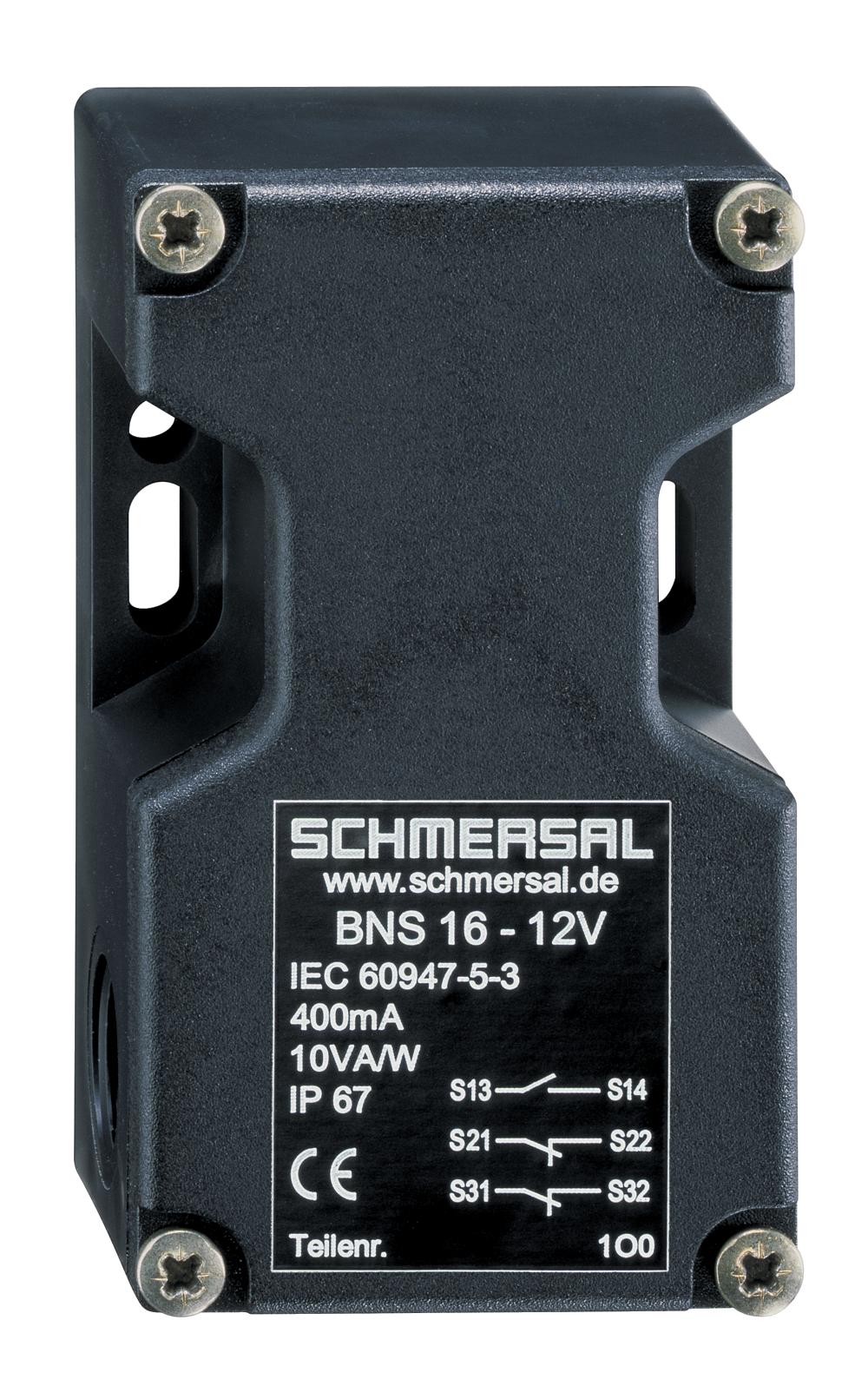

SCHMERSAL BNS16-12ZV SAFETY SENSOR 101172553
