SCHMERSAL SE-P70-2500 SAFETY-RELATED TACTILE SENSOR 101172168

Product Code: 101172168

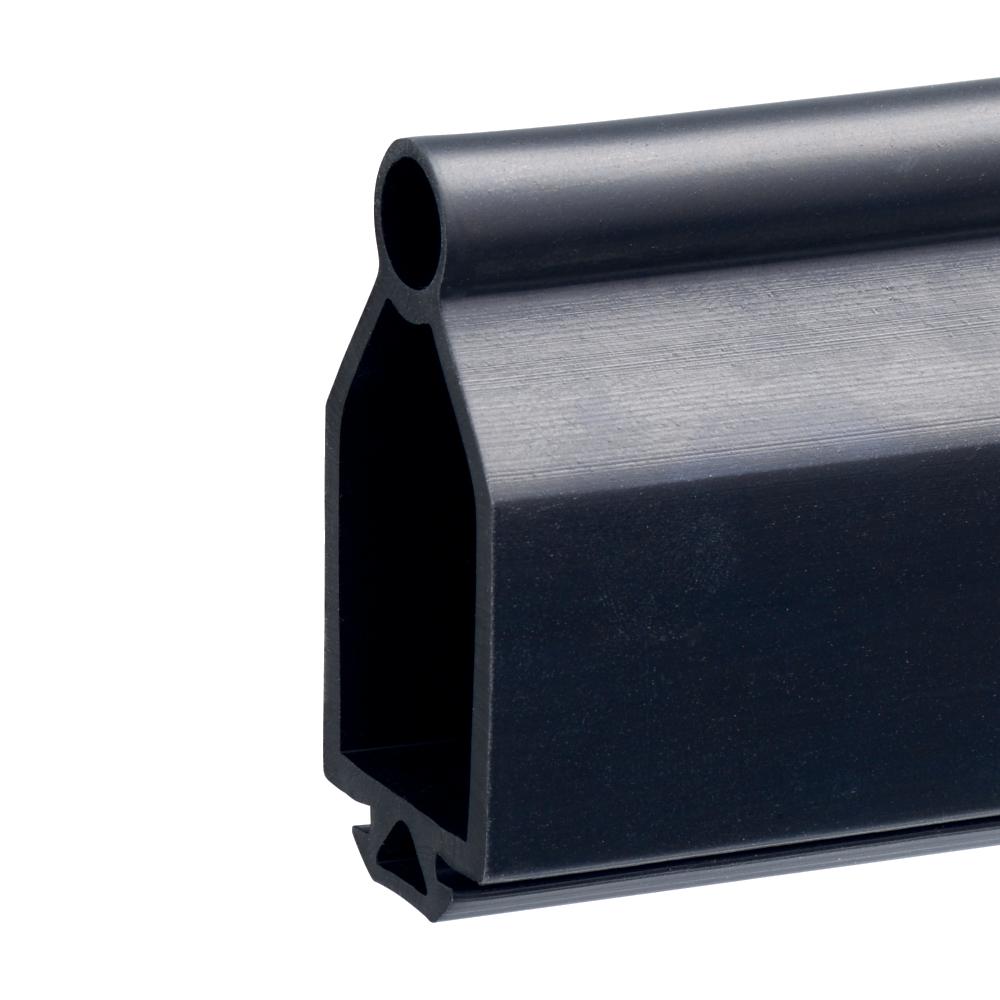

Enhance your machine safety with the Schmersal SE-P70 safety edge, a robust safety-related tactile sensor designed for protective equipment. Crafted from durable EPDM rubber with a hardness of 65 Shore A, this sensor measures 2,500mm in length, 30mm in width, and 70mm in height. The SE-P70 series is engineered to deliver reliable performance and heightened safety in demanding industrial environments.

Technical Specifications

Cable Note All indications including the conductor ferrules.
eCl@ss Number, Version 11.0 27-27-27-04
eCl@ss Number, Version 9.0 27-27-27-04
ETIM 6.0 EC002549
ETIM 7.0 EC000030
Gross Weight (g) 125
Housing Construction Form Block
Maximum Actuating Speed (m/s) 1
Maximum Fuse Rating 6 A (slow blow)
Maximum Temperature (°C) 170
Minimum Ambient Temperature (°C) -30
Minimum Temperature (°C) -50
Net Weight (g) 4910
No. of Auxiliary Contacts 1
No. of Safety Contacts 1
Rated Short-circuit Current (A) 100
Sensor Height (mm) 40
Sensor Length (mm) 30
Switching Element NO contact, NC contact
Switching Principle Slow action with overlapping contacts
Utilisation Category DC-13 | AC-15
Working Principle Inductive
Brand SCHMERSAL
Actuator Type Roller lever N300
Contact Material Silver
Degree of Protection IP67
EAN 4030660000000
Enclosure Material Aluminium
Maximum Ambient Temperature (°C) 80
Maximum Cable Cross Section (mm²) 2.5
Minimum Cable Cross Section (mm²) 1 x 0.5
Minimum Mechanical Life 30000000 Operations
Rated Impulse Withstand Voltage (kV) 6
Rated Insulation Voltage (V) 250
Series SE-P70
Standards EN 81-20 / EN 81-50
Terminal Type Cage clamps, WAGO-Cage-Clamp
