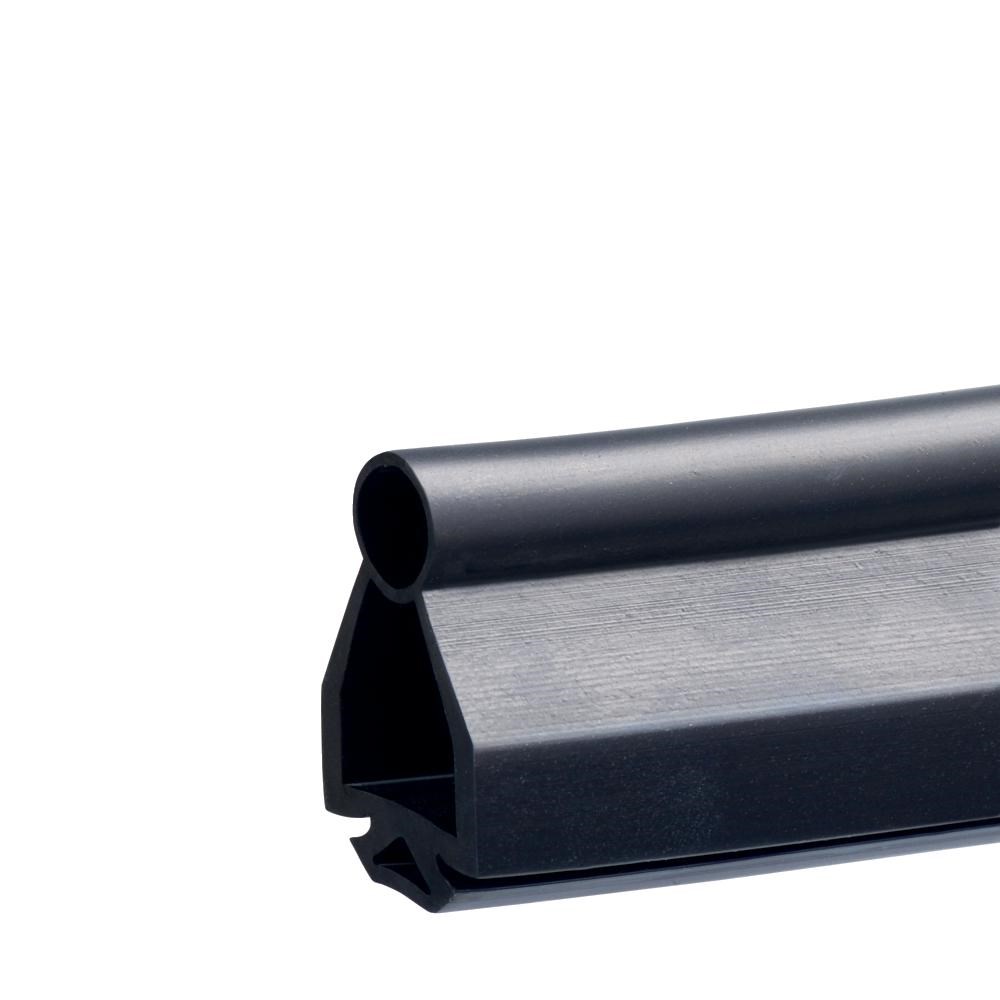

SCHMERSAL SE-P40-1250 SAFETY-RELATED TACTILE SENSOR 101172155

Product Code: 101172155

Ensure machine safety with the Schmersal SE-P40 safety edge, a robust safety-related tactile sensor designed for protection and accident prevention. Crafted from durable EPDM rubber with a hardness of 65 Shore A, this sensor measures 1,250mm in length, 25mm in width, and 40mm in height. It's an essential component for any setup requiring reliable and responsive safety measures within the Machine Safety category.

Technical Specifications

Cable Note All indications including the conductor ferrules.
eCl@ss Number, Version 11.0 27-27-27-04
eCl@ss Number, Version 9.0 27-06-03-11
ETIM 6.0 EC002549
ETIM 7.0 EC000030
Gross Weight (g) 85
Housing Construction Form Block
Maximum Actuating Speed (m/s) 2.5
Maximum Fuse Rating 6 A (slow blow)
Maximum Temperature (°C) 170
Minimum Ambient Temperature (°C) -30
Minimum Temperature (°C) -50
Net Weight (g) 58
No. of Auxiliary Contacts 1
No. of Safety Contacts 2
Rated Short-circuit Current (A) 100
Sensor Height (mm) 118.5
Sensor Length (mm) 30
Switching Element NO contact, NC contact
Switching Principle Slow action with overlapping contacts
Utilisation Category DC-13 | AC-15
Working Principle Inductive
Brand SCHMERSAL
Actuator Type Roller lever H300
Contact Material Silver
Degree of Protection IP67
EAN 4030660000000
Enclosure Material Aluminium
Maximum Ambient Temperature (°C) 80
Maximum Cable Cross Section (mm²) 1 x 1.5
Minimum Cable Cross Section (mm²) 1 x 0.5
Minimum Mechanical Life 20000000 Operations
Rated Impulse Withstand Voltage (kV) 6
Rated Insulation Voltage (V) 500
Series SE-P40
Standards EN 81-20 / EN 81-50
Terminal Type Screw terminals M20 x 1.5
