Brand	SCHMERSAL
Cable Note	All indications including the conductor ferrules.
eCl@ss Number, Version 11.0	27-27-06-09
eCl@ss Number, Version 9.0	27-27-27-03
ETIM 6.0	EC002591
ETIM 7.0	EC002549
Gross Weight (g)	50
Housing Construction Form	Norm construction design
Maximum Actuating Speed (m/s)	2
Maximum Fuse Rating	6 A gG D-fuse
Minimum Ambient Temperature (°C)	-30
Net Weight (g)	70
No. of Auxiliary Contacts	2
No. of Safety Contacts	1
Rated Short-circuit Current (A)	1000
Sensor Height (mm)	33.2
Sensor Length (mm)	33
Switching Element	Opener (NC)
Switching Principle	Slow action
Utilisation Category	DC-13 \| AC-15
Working Principle	Electromechanical
Actuator Type	Roller lever H200
Contact Material	Silver
Degree of Protection	IP65
EAN	4030660000000
Enclosure Material	Aluminium
Maximum Ambient Temperature (°C)	80
Maximum Cable Cross Section (mm²)	2.5
Minimum Cable Cross Section (mm²)	0.75
Minimum Mechanical Life	1000000 Operations
Overvoltage Category	3
Rated Impulse Withstand Voltage (kV)	0.8
Rated Insulation Voltage (V)	500
Standards	EN IEC 60947-5-1
Terminal Type	Screw terminals M20 x 1.5

Position Switches & Sensors

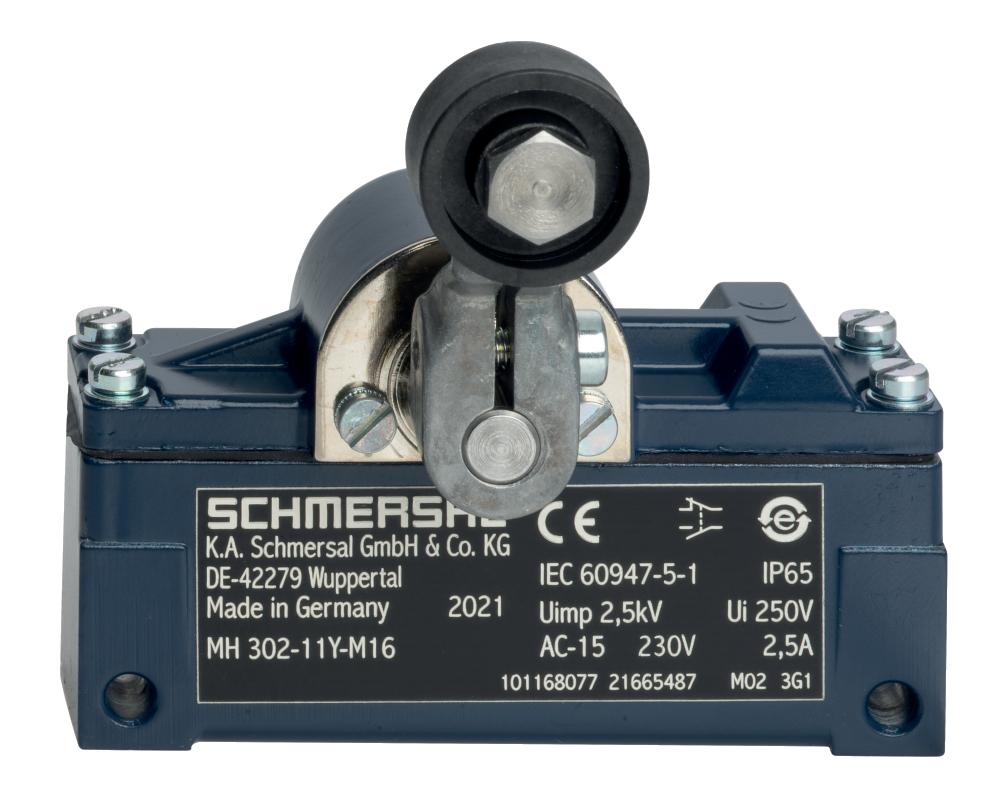

SCHMERSAL MICRO SWITCH MH 302-11Y-M16
