Product Code: 101167206

The Schmersal AZM415 solenoid interlock ensures machine safety with its robust metal enclosure and power-to-lock functionality. Designed for a single guard door, this interlock offers straightforward cut clamp termination and a secure screw connection. It features one actuating direction, two auxiliary contacts, and two safety contacts to maintain operational integrity. With a thermal test current of 6 A and rated control voltage of 24 VAC/DC, it meets utilisation categories AC-15 (230 VAC at 4 A) and DC-13 (24 VDC at 1 A), making it a reliable choice for safeguarding machinery in various industrial settings.

Brand	SCHMERSAL
Cable Note	All indications including the conductor ferrules.
eCl@ss Number, Version 11.0	27-27-27-04
eCl@ss Number, Version 9.0	27-27-27-04
ETIM 6.0	EC002549
ETIM 7.0	EC001038
Gross Weight (g)	67
Housing Construction Form	Norm construction design
Maximum Actuating Speed (m/s)	2
Maximum Fuse Rating	6 A gG D-fuse
Maximum Temperature (°C)	50
Minimum Ambient Temperature (°C)	-30
Minimum Temperature (°C)	-25
Net Weight (g)	72.279
No. of Auxiliary Contacts	1
No. of Safety Contacts	2
Rated Short-circuit Current (A)	1000
Sensor Height (mm)	84
Sensor Length (mm)	33
Switching Element	1 NO contact, 2 NC contacts
Switching Principle	Slow action
Utilisation Category	DC-13 \| AC-15
Working Principle	RFID
Actuator Type	Roller plunger R200
Contact Material	Silver
Degree of Protection	IP67
EAN	4030660000000
Enclosure Material	Light alloy die-casting
Maximum Ambient Temperature (°C)	65
Maximum Cable Cross Section (mm²)	2.5 , rigid \| 1.5 , flexible
Minimum Cable Cross Section (mm²)	2 x 0.75
Minimum Mechanical Life	30000000 Operations
Overvoltage Category	3
Rated Impulse Withstand Voltage (kV)	2.5
Rated Insulation Voltage (V)	500
Series	AZM415
Standards	EN IEC 60947-5-3 / BG-GS-ET-14
Terminal Type	Connector M12, 4-pole

Safety Interlocks

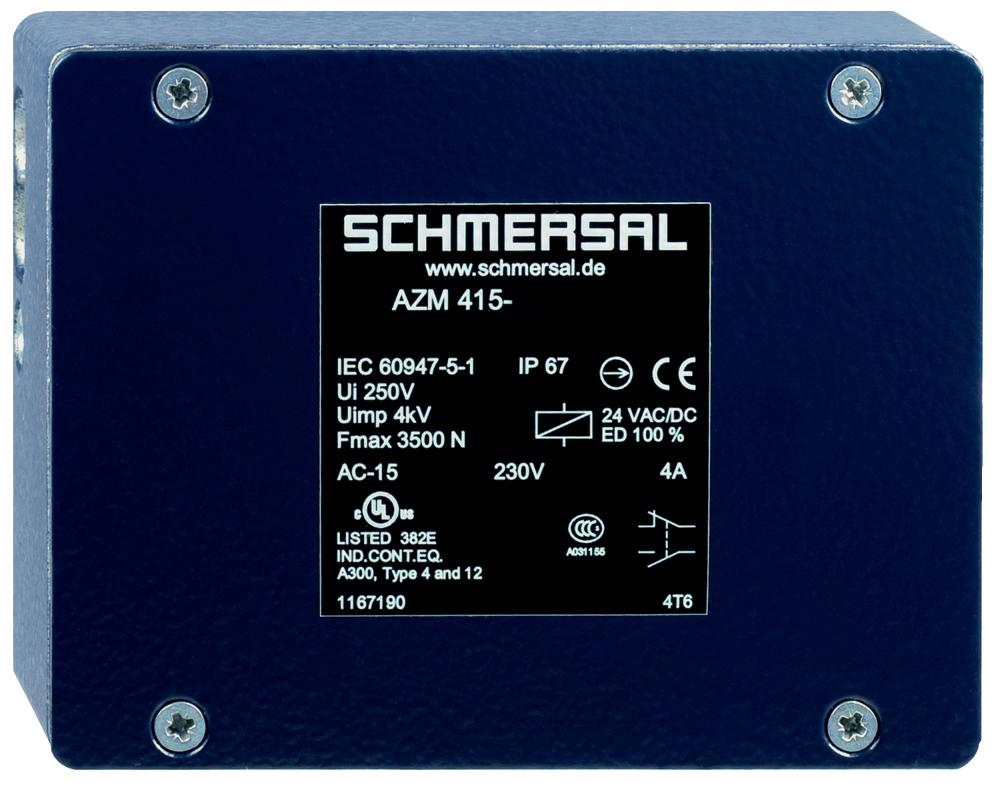

SCHMERSAL AZM415-11/11ZPKA-24VAC/DC SOLENOID INTERLOCK 101167206
