Product Code: 101167204

The Schmersal AZM415 solenoid interlock is a robust machine safety solution featuring a metal enclosure designed for single guard door applications. This unit requires power to unlock, ensuring secure operation and safety. It offers straightforward cut clamp termination and screw connection for reliable installation. The interlock is equipped with one actuating direction, two auxiliary contacts, and two safety contacts, supporting comprehensive control systems integration. With a thermal test current of 6 A and rated control voltage of 230 VAC, it meets utilisation category AC-15 at 230 VAC/4 A and DC-13 at 24 VDC/1 A standards. Ideal for engineers seeking dependable interlocking with straightforward functionality in industrial settings.

Brand	SCHMERSAL
Cable Note	All indications including the conductor ferrules.
eCl@ss Number, Version 11.0	27-27-27-04
eCl@ss Number, Version 9.0	27-27-27-04
ETIM 6.0	EC002549
ETIM 7.0	EC001038
Gross Weight (g)	3000
Housing Construction Form	Norm construction design
Maximum Actuating Speed (m/s)	2
Maximum Fuse Rating	6 A gG D-fuse quick blow
Maximum Temperature (°C)	50
Minimum Ambient Temperature (°C)	-30
Minimum Temperature (°C)	-25
Net Weight (g)	71
No. of Auxiliary Contacts	1
No. of Safety Contacts	1
Rated Short-circuit Current (A)	1000
Sensor Height (mm)	91.5
Sensor Length (mm)	33
Switching Element	NO contact, NC contact
Switching Principle	Slow action
Utilisation Category	DC-13 \| AC-15
Working Principle	RFID
Actuator Type	Roller plunger R200
Contact Material	Silver
Degree of Protection	IP67
EAN	4030660000000
Enclosure Material	Glass-fibre, reinforced thermoplastic
Maximum Ambient Temperature (°C)	65
Maximum Cable Cross Section (mm²)	2.5 , rigid \| 1.5 , flexible
Minimum Cable Cross Section (mm²)	0.75
Minimum Mechanical Life	1000000 Operations
Overvoltage Category	3
Rated Impulse Withstand Voltage (kV)	4
Rated Insulation Voltage (V)	500
Series	AZM415
Standards	EN IEC 60947-5-2 / DIN VDE 0660-208
Terminal Type	Connector

Safety Interlocks

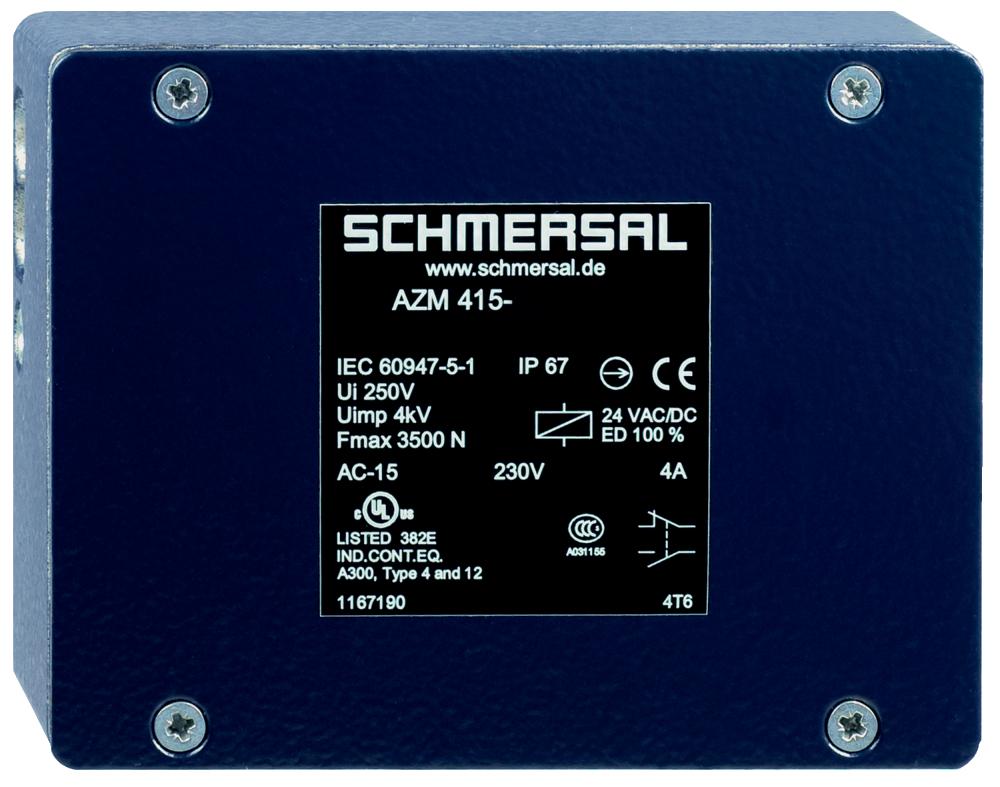

SCHMERSAL AZM415-11/11ZPK-230VAC SOLENOID INTERLOCK 101167204
