Product Code: 101167190

The Schmersal AZM415 solenoid interlock is a robust machine safety solution designed with a durable metal enclosure and cut clamp termination for secure installation. This device requires power to unlock, ensuring controlled access, but also features a manual release for emergency situations. It supports one actuating direction and is equipped with two auxiliary contacts as well as two safety contacts, making it suitable for single guard door applications. Connection is made simple with screw terminals, and the unit includes both normally open (NO) and normally closed (NC) contact configurations. The interlock has a thermal test current of 6 A and operates effectively at a rated control voltage of 24 VAC/DC. For reliability in various applications, it meets utilisation categories AC-15 at 230 VAC up to 4 A and DC-13 at 24 VDC up to 1 A. This Schmersal series emphasizes machine safety without compromising on functionality or ease of use.

Brand	SCHMERSAL
Cable Note	All indications including the conductor ferrules.
eCl@ss Number, Version 11.0	27-37-12-12
eCl@ss Number, Version 9.0	27-37-12-12
ETIM 6.0	EC002549
ETIM 7.0	EC002544
Gross Weight (g)	325.47
Housing Construction Form	Norm construction design
Maximum Actuating Speed (m/s)	2
Maximum Fuse Rating	6 A gG D-fuse quick blow
Maximum Temperature (°C)	50
Minimum Ambient Temperature (°C)	-15
Minimum Temperature (°C)	-25
Net Weight (g)	350
No. of Auxiliary Contacts	2
No. of Safety Contacts	1
Rated Short-circuit Current (A)	1000
Sensor Height (mm)	103.5
Sensor Length (mm)	33
Switching Element	NO contact, NC contact
Switching Principle	Snap action
Utilisation Category	DC-13 \| AC-15
Utilisation Category AC-15	2.5 A
Working Principle	Electromechanical
Actuator Type	Angle roller lever K240
Contact Material	Silver
Degree of Protection	IP67
EAN	4030660000000
Enclosure Material	Metal, zinc die-cast
Maximum Ambient Temperature (°C)	70
Maximum Cable Cross Section (mm²)	2.5 , flexible
Minimum Cable Cross Section (mm²)	0.75
Minimum Mechanical Life	1000000 Operations
Overvoltage Category	3
Rated Impulse Withstand Voltage (kV)	4
Rated Insulation Voltage (V)	500
Series	AZM415
Standards	EN IEC 60947-5-2 / DIN VDE 0660-208
Terminal Type	Screw terminals M20 x 1.5

Safety Interlocks

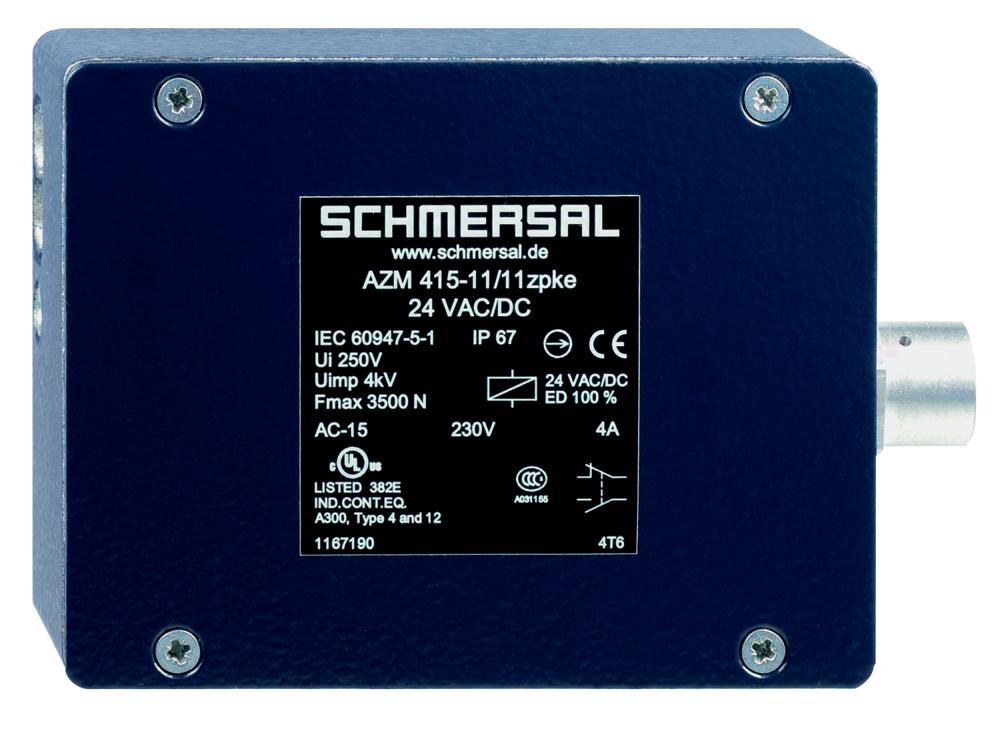

SCHMERSAL AZM415-11/11ZPKE-24VAC/DC SOLENOID INTERLOCK 101167190
