Cable Note	All indications including the conductor ferrules.
Coding Level According to EN ISO 14119	High
eCl@ss Number, Version 11.0	27-27-26-01
eCl@ss Number, Version 9.0	27-44-01-02
ETIM 6.0	EC000221
ETIM 7.0	EC002544
Gross Weight (g)	450
Housing Construction Form	Norm construction design
Maximum Actuating Speed (m/s)	2
Maximum Fuse Rating	6 A (slow blow)
Minimum Ambient Temperature (°C)	-30
Minimum Positive Break Force (N)	20
Net Weight (g)	45
No. of Auxiliary Contacts	1
No. of Safety Contacts	2
Rated Short-circuit Current (A)	1000
Sensor Height (mm)	27
Sensor Length (mm)	33
Switching Element	NC contact, NO contact
Switching Principle	Slow action
Thermal Test Current (A)	0.25
Utilisation Category	DC-13 \| AC-15
Utilisation Category DC-13	0.05 A
Wire Cross-Section	13 AWG
Working Principle	Electromechanical
Brand	SCHMERSAL
Actuator Type	Plunger
Contact Material	Silver
Degree of Protection	IP30
EAN	4030660000000
Enclosure Material	Aluminium
Maximum Ambient Temperature (°C)	70
Maximum Cable Cross Section (mm²)	2 x 2.5
Minimum Cable Cross Section (mm²)	0.34
Minimum Mechanical Life	1000000 Operations
Overvoltage Category	3
Rated Impulse Withstand Voltage (kV)	4
Rated Insulation Voltage (V)	250
Standards	EN IEC 61496-1 / EN IEC 61496-2
Storage Temperature (°C)	-40 to 85
Terminal Type	Screw terminals M20 x 1.5

Safety Pushbuttons & Operator Devices

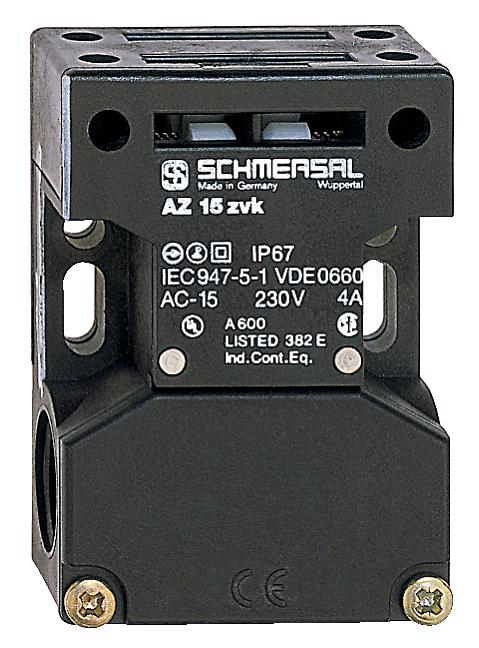

SCHMERSAL SAFETY SWITCH, 1 SAFETY CONTACT 101157376
