Product Code: 101154291

The Schmersal T4C235 safety switch is a robust machine safety solution designed for industrial applications. This swing-door, metal-enclosed switch features a swivel lever actuating element and offers both normally open (NO) and normally closed (NC) contacts. It ensures secure connections with its screw terminal connector and includes one auxiliary contact as well as one safety contact. With a thermal test current of 10 A, it operates efficiently under utilisation categories AC-15 at 230 VAC with 4 A, and DC-13 at 24 VDC with 1 A. The T4C235 series is engineered to enhance the safety of your machinery while maintaining operational integrity.

Cable Note	All indications including the conductor ferrules.
Coding Level According to EN ISO 14119	Low
eCl@ss Number, Version 11.0	27-27-34-02
eCl@ss Number, Version 9.0	27-27-27-92
ETIM 6.0	EC002887
ETIM 7.0	EC001855
Gross Weight (g)	35
Housing Construction Form	Norm construction design
Maximum Actuating Speed (m/s)	1
Maximum Fuse Rating	6 A gG D-fuse
Maximum Temperature (°C)	65
Minimum Ambient Temperature (°C)	-30
Minimum Positive Break Force (N)	40
Minimum Temperature (°C)	-25
Net Weight (g)	15
No. of Auxiliary Contacts	1
No. of Safety Contacts	1
Rated Short-circuit Current (A)	1000
Sensor Height (mm)	25
Sensor Length (mm)	33
Switching Element	Normally open contact (NO)
Switching Principle	Slow action
Utilisation Category	DC-13 \| AC-15
Wire Cross-Section	1.5 mm
Working Principle	Electromechanical
Brand	SCHMERSAL
Actuator Type	Magnet
Contact Material	Silver
Degree of Protection	IP65
EAN	4030660000000
Enclosure Material	Aluminium
Maximum Ambient Temperature (°C)	70
Maximum Cable Cross Section (mm²)	2.5
Minimum Cable Cross Section (mm²)	0.34
Minimum Mechanical Life	1000000 Operations
Overvoltage Category	3
Rated Impulse Withstand Voltage (kV)	6
Rated Insulation Voltage (V)	500
Series	T4C235
Standards	EN IEC 61496-1 / EN IEC 61496-2
Storage Temperature (°C)	-25 to 85
Terminal Type	Screw terminals M20 x 1.5

Position Switches & Sensors

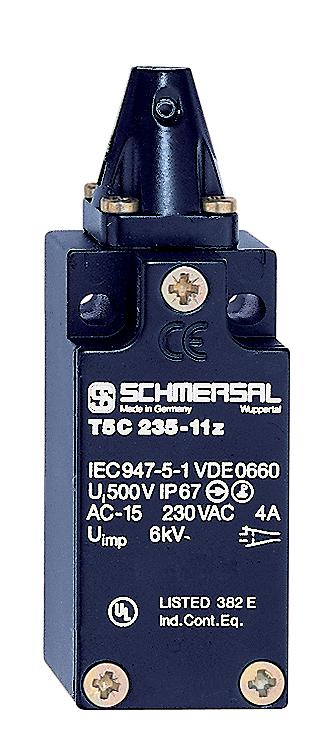

SCHMERSAL T4C235-11Z-M20 FLAP SAFETY SWITCH 101154291
