Product Code: 101154221

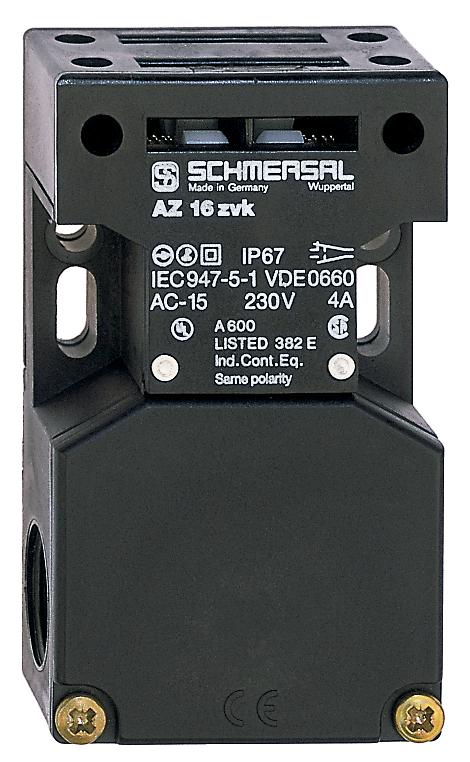

Ensure machine safety with the Schmersal AZ16 Series Safety Switch, featuring a robust thermoplastic enclosure and separate actuator for secure operation. This switch includes one auxiliary contact and two safety contacts, with screw terminals for reliable connections. It's designed to handle a thermal test current of 10 A and is suitable for various applications with utilisation categories AC-15: 230 VAC at 4 A, and DC-13: 24 VDC at 4 A. Ideal for engineers looking to maintain high safety standards in machine operations.

Cable Note	All indications including the conductor ferrules.
Coding Level According to EN ISO 14119	High
eCl@ss Number, Version 11.0	27-27-34-02
eCl@ss Number, Version 9.0	27-44-01-02
ETIM 6.0	EC002887
ETIM 7.0	EC001855
Gross Weight (g)	20
Housing Construction Form	Norm construction design
Maximum Actuating Speed (m/s)	1
Maximum Fuse Rating	6 A gG D-fuse
Maximum Temperature (°C)	80
Minimum Ambient Temperature (°C)	-30
Minimum Positive Break Force (N)	40
Minimum Temperature (°C)	-30
Net Weight (g)	3930
No. of Auxiliary Contacts	2
No. of Safety Contacts	2
Rated Short-circuit Current (A)	1000
Sensor Height (mm)	121.5
Sensor Length (mm)	33
Switching Element	Opener (NC)
Switching Principle	Snap action
Utilisation Category	DC-13 \| AC-15
Utilisation Category DC-13	0.05 A
Wire Cross-Section	0.5 mm
Working Principle	Electromechanical
Brand	SCHMERSAL
Actuator Type	Roller plunger
Contact Material	Silver
Degree of Protection	IP67
EAN	4030660000000
Enclosure Material	Aluminium
Maximum Ambient Temperature (°C)	70
Maximum Cable Cross Section (mm²)	1
Minimum Cable Cross Section (mm²)	0.34
Minimum Mechanical Life	1000000 Operations
Overvoltage Category	3
Rated Impulse Withstand Voltage (kV)	4
Rated Insulation Voltage (V)	500
Series	AZ16
Standards	EN IEC 61496-1 / EN IEC 61496-2
Storage Temperature (°C)	-25 to 85
Terminal Type	Screw terminals M20 x 1.5
