Brand	SCHMERSAL
Cable Note	All indications including the conductor ferrules.
Coding Level According to EN ISO 14119	Low
eCl@ss Number, Version 11.0	27-37-12-12
eCl@ss Number, Version 9.0	27-27-06-07
ETIM 6.0	EC002593
ETIM 7.0	EC002925
Gross Weight (g)	50
Housing Construction Form	Norm construction design
Maximum Actuating Speed (m/s)	1
Maximum Fuse Rating	6 A (slow blow)
Minimum Actuating Speed (mm/min)	1
Minimum Ambient Temperature (°C)	-25
Minimum Positive Break Force (N)	20
Net Weight (g)	192
No. of Auxiliary Contacts	1
No. of Safety Contacts	1
Rated Short-circuit Current (A)	1000
Resistance to Shock (g/ms)	30 / 11
Sensor Height (mm)	91.5
Sensor Length (mm)	56.5
Switching Element	NO contact, NC contact
Switching Principle	Slow action
Thermal Test Current (A)	16
Utilisation Category	DC-13 \| AC-15
Utilisation Category DC-13	0.05 A
Wire Cross-Section	0.14 mm
Working Principle	Electromechanical
Actuator Type	Roller lever H65
Contact Material	Silver
Degree of Protection	IP65
EAN	4030660000000
Enclosure Coating Material	Painted
Enclosure Material	Metal, zinc die-cast
Maximum Ambient Temperature (°C)	70
Maximum Cable Cross Section (mm²)	1 x 1.0 , flexible
Minimum Cable Cross Section (mm²)	0.75
Minimum Mechanical Life	10000000 Operations
Overvoltage Category	3
Rated Impulse Withstand Voltage (kV)	2.5
Rated Insulation Voltage (V)	400
Series	AZM415
Standards	EN IEC 60947-5-3 / BG-GS-ET-14
Storage Temperature (°C)	-25 to 70
Terminal Type	Screw terminals M20 x 1.5

Safety Interlocks

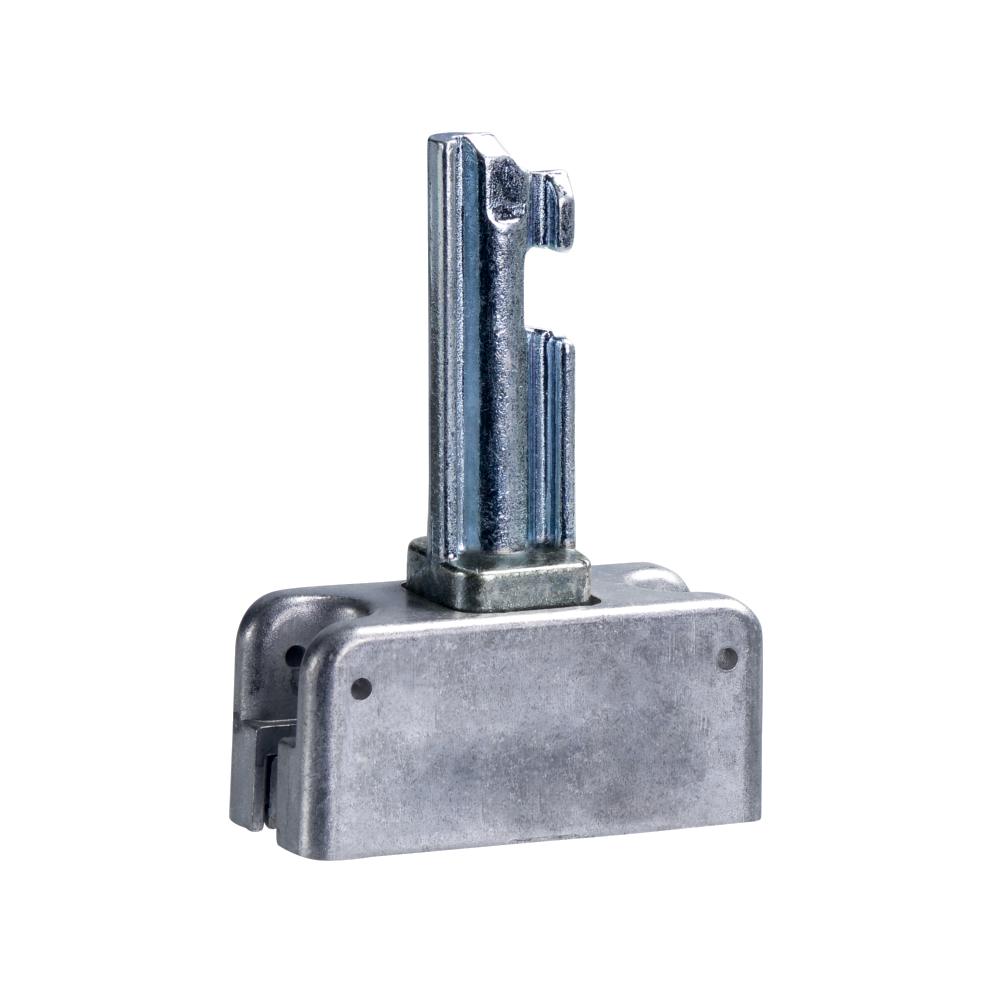

SCHMERSAL AZ/AZM 415-B3 SOLENOID INTERLOCK 101144797
