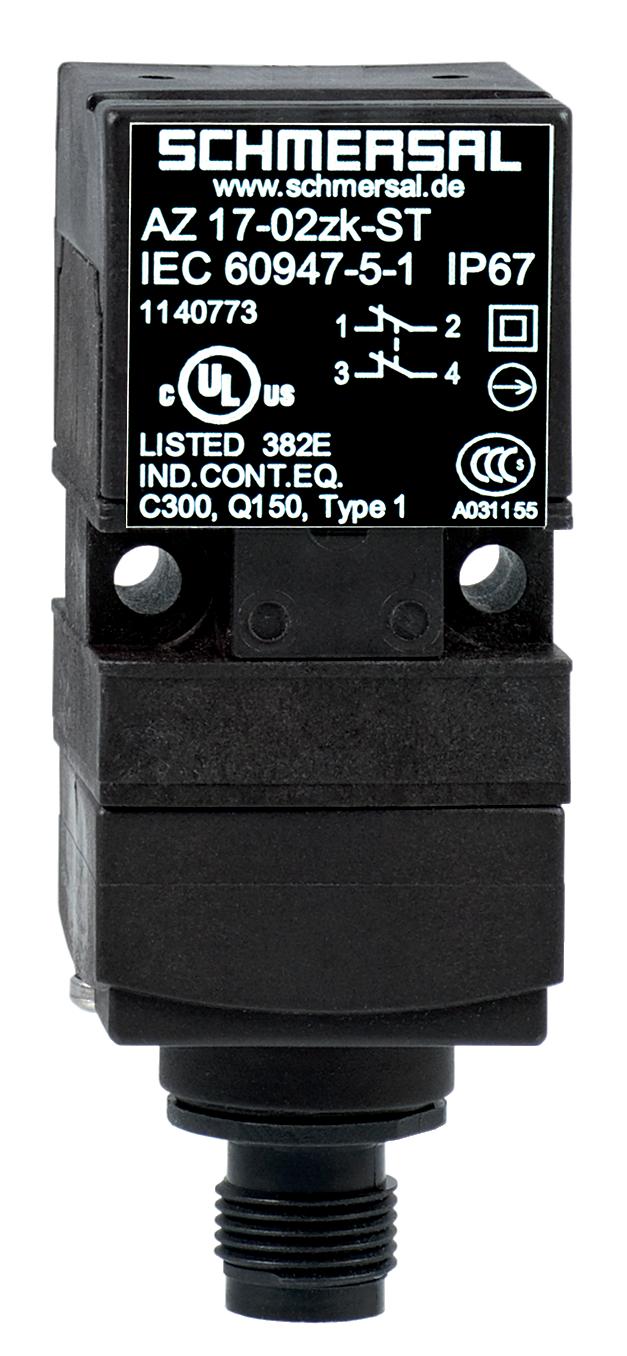

SCHMERSAL AZ17-02ZK-ST SAFETY SWITCH WITH SEPARATE ACTUATOR 101140773

Product Code: 101140773

Ensure machine safety with the Schmersal AZ17 Safety Switch, designed for reliable operation in industrial environments. This robust switch features a thermoplastic enclosure and comes equipped with a separate actuator for enhanced security. It includes two safety contacts and no auxiliary contacts, ensuring straightforward functionality. The switching element is an opener (NC) type, providing a fail-safe response. For easy integration, it has a connector plug M12 4-pole (A-coding) terminal connector. With a thermal test current of 10 A, it can handle utilisation categories AC-15 at 230 VAC up to 4 A and DC-13 at 24 VDC up to 4 A. Engineered for durability and consistent performance, the Schmersal AZ17 is an essential component for any machine safety system.

Technical Specifications

Actuator Type Magnet
Enclosure Material Glass-fibre, reinforced thermoplastic
Gross Weight (g) 1702
Net Weight (g) 50
Wire Cross-Section 13 AWG
Enclosure Coating Material Painted
Maximum Temperature (°C) 80
Minimum Ambient Temperature (°C) -25
Minimum Temperature (°C) -30
Brand SCHMERSAL
Series AZ17
Working Principle Mechanical
Housing Construction Form Norm construction design
EAN 4030660000000
eCl@ss Number, Version 9.0 27-27-06-09
Coding Level According to EN ISO 14119 Low
ETIM 7.0 EC000222
ETIM 6.0 EC002591
eCl@ss Number, Version 11.0 27-27-24-04
Protection Class of Operating Resource 3
Cable Note All indications including the conductor ferrules.
Maximum Ambient Temperature (°C) 70
Maximum Cable Cross Section (mm²) 2.5
Minimum Cable Cross Section (mm²) 0.75
Mounting Type A screw length of 25 mm is sufficient for sensor mounting and for side mounting of the actuators. 30 mm long screws are recommended when the actuator is mounted upright and/or when the sealing discs are used.
Storage Temperature (°C) -40 to 85
Contact Material Silver
Maximum Actuating Speed (m/s) 1
Maximum Fuse Rating 6 A gG D-fuse
Minimum Actuating Speed (mm/min) 10
Minimum Mechanical Life 5000000 Operations
Minimum Positive Break Force (N) 8.5
No. of Auxiliary Contacts 1
No. of Safety Contacts 1
Overvoltage Category 3
Rated Impulse Withstand Voltage (kV) 6
Rated Insulation Voltage (V) 500
Rated Short-circuit Current (A) 1000
Switching Element NO contact, NC contact
Switching Principle Slow action
Terminal Type Screw terminals M20 x 1.5
Height (mm) 75
Utilisation Category DC-13 | AC-15
Utilisation Category DC-13 0.25 A
Sensor Length (mm) 38.5
Sensor Height (mm) 25
Degree of Protection IP67
Pollution Degree 2
Standards EN IEC 60947-5-1 / EN ISO 14119 / BG-GS-ET-15
