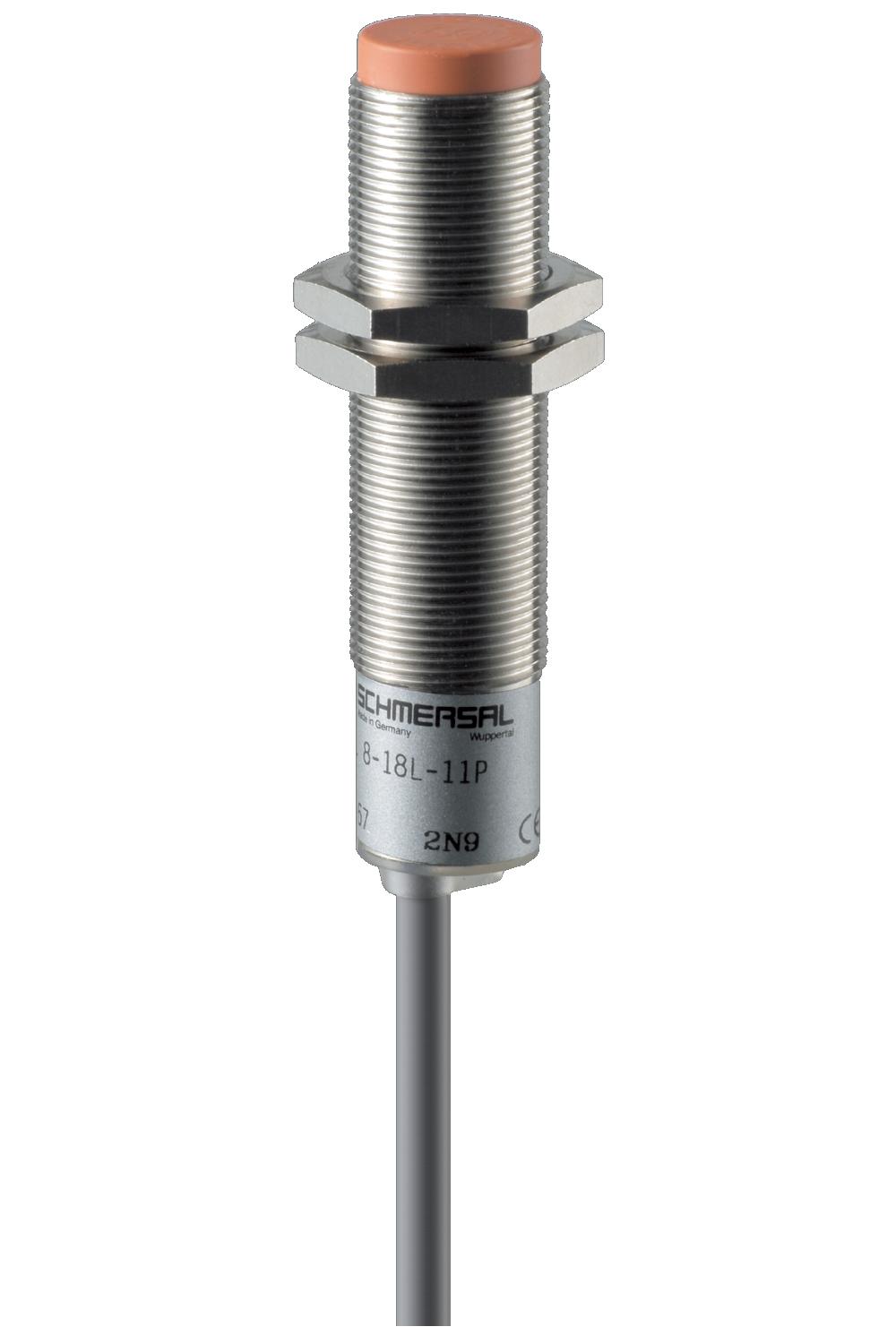

SCHMERSAL IFL8-18L-11P INDUCTIVE PROXIMITY SWITCH 101139936

Product Code: 101139936

Explore the Schmersal IFL Series inductive proximity switch, a robust metal-encased sensor designed for precision and durability. This DC 4-wire, long-bodied cylinder with an M18 ISO thread offers a reliable 8 mm sensing distance and is equipped with both normally open (NO) and normally closed (NC) contacts to suit diverse industrial applications. Operating within a voltage range of 10-60VDC at 400 mA, it ensures rapid response with a switching frequency of 3,500 Hz. The unit features a digital output of 1.5 V and 0.4 A, p-type, along with built-in inductive interference protection and polarity reversal safeguards. Visual status indication is provided for ease of monitoring. Engineered to perform in extreme temperatures ranging from -25°C to 70°C, this sensor maintains integrity in demanding environments with an IP67 rating according to IEC/EN 60532 standards. Perfect for precise position sensing needs across various industries.

Technical Specifications

Cable Note All indications including the conductor ferrules.
Coding Level According to EN ISO 14119 Low
eCl@ss Number, Version 11.0 27-27-06-90
eCl@ss Number, Version 9.0 27-27-26-01
ETIM 6.0 EC002544
ETIM 7.0 EC002887
Gross Weight (g) 50
Housing Construction Form Norm construction design
Maximum Actuating Speed (m/s) 2
Maximum Fuse Rating 6 A gG D-fuse
Maximum Nominal Output Voltage DC (V) 1.5
Maximum Temperature (°C) 70
Minimum Actuating Speed (mm/min) 1
Minimum Ambient Temperature (°C) -30
Minimum Positive Break Force (N) 16
Minimum Temperature (°C) -25
Net Weight (g) 30
No. of Auxiliary Contacts 2
No. of Safety Contacts 2
Nominal Output Current (A) 0.4
Protection Class of Operating Resource 3
Rated Maximum Operational Voltage DC (V) 60
Rated Minimum Operational Voltage DC (V) 10
Rated Operational Current (A) 0.4
Rated Short-circuit Current (A) 1000
Resistance to Shock (g/ms) 30 / 11
Sensor Height (mm) 101.5
Sensor Length (mm) 30
Switching Element Opener (NC)
Switching Principle Snap action
Utilisation Category DC-13 | AC-15
Utilisation Category DC-13 0.25 A
Wire Cross-Section 11 AWG
Working Principle Electromechanical
Brand SCHMERSAL
Actuator Type Magnet
Contact Material Silver
Degree of Protection IP67
Dimensions (mm) Ø18W x 79H
EAN 4030660000000
Enclosure Coating Material Painted
Enclosure Material Glass-fibre, reinforced thermoplastic
Height (mm) 100
Maximum Ambient Temperature (°C) 65
Maximum Cable Cross Section (mm²) 2.5
Minimum Cable Cross Section (mm²) 0.5
Minimum Mechanical Life 5000000 Operations
Mounting Type Threaded
Overvoltage Category 3
Pollution Degree 3
Rated Impulse Withstand Voltage (kV) 4
Rated Insulation Voltage (V) 500
Series IFL
Standards EN IEC 60947-5-1 / EN IEC 60947-1
Storage Temperature (°C) -25 to 70
Terminal Type Screw terminals M20 x 1.5
Weight (kg) 0.12
