Product Code: 101138969

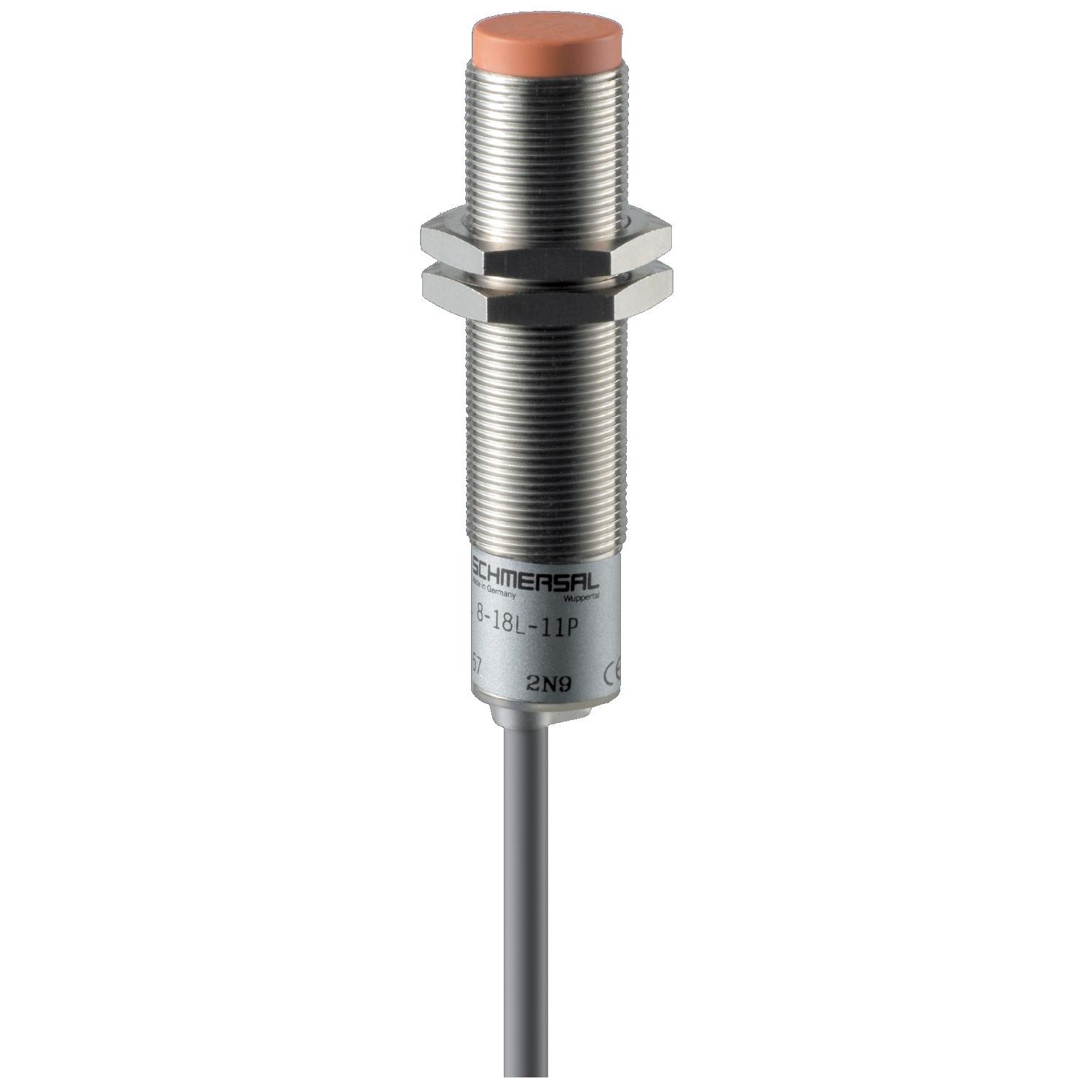

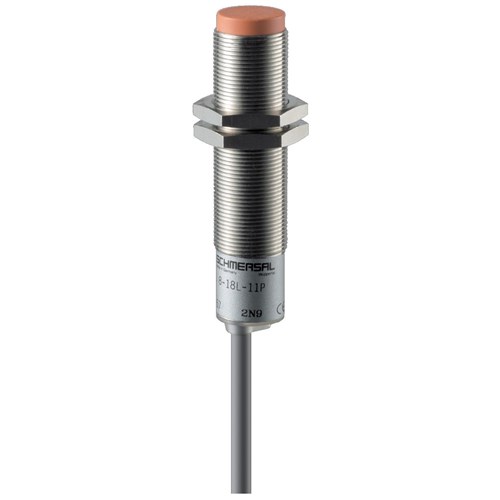

Discover the Schmersal IFL Series Inductive Proximity Switch, a robust metal-encased sensor designed for precision position sensing in demanding industrial environments. This DC 4-wire, long-bodied sensor features an M18 ISO thread cylinder with an 8 mm sensing distance and dual NO/NC antivalent contacts for versatile integration into control systems. It operates within a voltage range of 10 to 60 VDC at up to 400 mA, ensuring reliable performance with a high switching frequency of 3500 Hz. The digital output is rated at 1.5 V and 0.4 A (n-type), complemented by inductive interference protection and polarity reversal safeguards. With status indication for easy monitoring, this durable switch functions optimally between -25°C to 70°C and boasts an IP67 rating, confirming its resistance to dust and water ingress. Ideal for engineers seeking a dependable position sensor solution, the Schmersal IFL Series excels in both functionality and resilience.

Cable Note	All indications including the conductor ferrules.
Coding Level According to EN ISO 14119	Low
eCl@ss Number, Version 11.0	27-27-24-04
eCl@ss Number, Version 9.0	27-37-12-05
ETIM 6.0	EC000200
ETIM 7.0	EC002544
Gross Weight (g)	30
Housing Construction Form	Norm construction design
Maximum Actuating Speed (m/s)	2.5
Maximum Fuse Rating	6 A gG D-fuse
Maximum Nominal Output Voltage DC (V)	1.5
Maximum Temperature (°C)	70
Minimum Actuating Speed (mm/min)	1
Minimum Ambient Temperature (°C)	-30
Minimum Positive Break Force (N)	19
Minimum Temperature (°C)	-25
Net Weight (g)	40
No. of Auxiliary Contacts	4
No. of Safety Contacts	2
Nominal Output Current (A)	0.4
Protection Class of Operating Resource	3
Rated Maximum Operational Voltage DC (V)	60
Rated Minimum Operational Voltage DC (V)	10
Rated Operational Current (A)	0.4
Rated Short-circuit Current (A)	1000
Resistance to Shock (g/ms)	30 / 11
Sensor Height (mm)	25
Sensor Length (mm)	30
Switching Element	Opener (NC)
Switching Principle	Snap action
Utilisation Category	DC-13 \| AC-15
Wire Cross-Section	13 AWG
Working Principle	Electromechanical
Brand	SCHMERSAL
Actuator Type	Magnet
Contact Material	Silver
Degree of Protection	IP67
EAN	4030660000000
Enclosure Coating Material	Painted
Enclosure Material	Glass-fibre, reinforced thermoplastic
Height (mm)	100
Maximum Ambient Temperature (°C)	70
Maximum Cable Cross Section (mm²)	2.5
Minimum Cable Cross Section (mm²)	0.5
Minimum Mechanical Life	1000000 Operations
Mounting Type	Threaded
Overvoltage Category	3
Pollution Degree	3
Rated Impulse Withstand Voltage (kV)	4
Rated Insulation Voltage (V)	500
Series	IFL
Standards	EN IEC 60947-5-1 / EN IEC 60947-5-5 / EN IEC 60947-1
Storage Temperature (°C)	25 to 85
Terminal Type	Cable
