Cable Note	All indications including the conductor ferrules.
Coding Level According to EN ISO 14119	Low
eCl@ss Number, Version 11.0	27-27-26-01
eCl@ss Number, Version 9.0	27-37-12-12
ETIM 6.0	EC001038
ETIM 7.0	EC002544
Gross Weight (g)	30
Housing Construction Form	Norm construction design
Maximum Actuating Speed (m/s)	1
Maximum Fuse Rating	6 A gG D-fuse
Minimum Actuating Speed (mm/min)	10
Minimum Ambient Temperature (°C)	-30
Minimum Positive Break Force (N)	16
Net Weight (g)	40
No. of Auxiliary Contacts	8
No. of Safety Contacts	2
Protection Class of Operating Resource	3
Rated Short-circuit Current (A)	1000
Resistance to Shock (g/ms)	30 / 11
Sensor Height (mm)	25
Sensor Length (mm)	30
Switching Element	Normally open contact (NO)
Switching Principle	Snap action
Utilisation Category	DC-13 \| AC-15
Utilisation Category DC-13	0.25 A
Wire Cross-Section	13 AWG
Working Principle	Electromechanical
Brand	SCHMERSAL
Actuator Type	Magnet
Contact Material	Silver
Degree of Protection	IP65
EAN	4030660000000
Enclosure Coating Material	Painted
Enclosure Material	Brass
Height (mm)	100
Maximum Ambient Temperature (°C)	70
Maximum Cable Cross Section (mm²)	2.5
Minimum Cable Cross Section (mm²)	0.5
Minimum Mechanical Life	1000000 Operations
Mounting Type	2 x M5, Cylinder head screw
Overvoltage Category	3
Pollution Degree	3
Rated Impulse Withstand Voltage (kV)	4
Rated Insulation Voltage (V)	250
Standards	EN IEC 60947-5-1 / EN 620
Storage Temperature (°C)	25 to 85
Terminal Type	Screw connection

Position Switches & Sensors

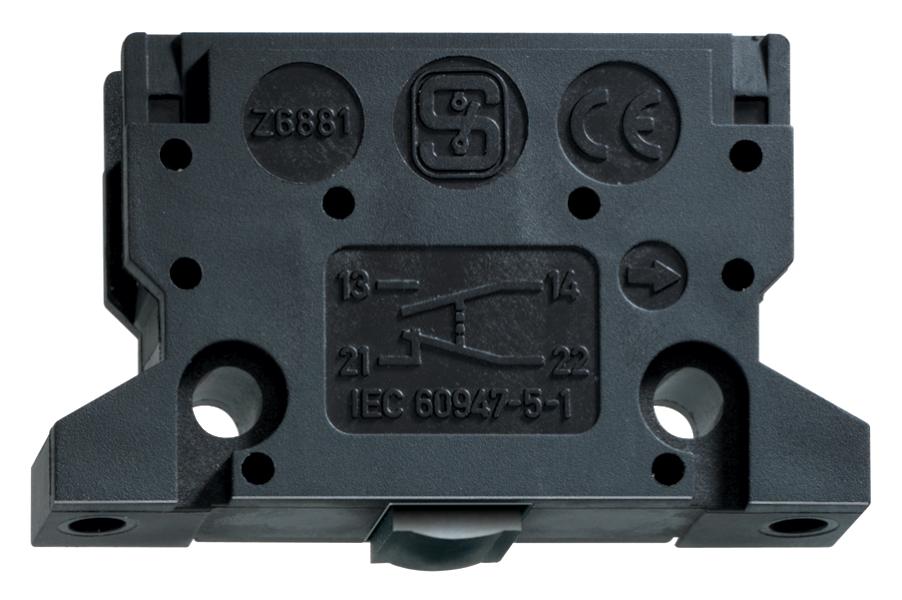

SCHMERSAL MICRO SWITCH 1NO+1NC T 6881-11-1
