Product Code: 101136325

Enhance your machine safety with the Schmersal AZM170 series solenoid interlock. This robust device ensures secure locking with a power-to-unlock mechanism and features a convenient manual release. Designed for versatility, it offers two actuating directions and includes one auxiliary contact alongside one safety contact for reliable integration into your safety system. The interlock boasts an IDC terminal connector for efficient wiring, NO/NC contacts, and can handle a thermal test current of 6 A. It operates optimally at a rated control voltage of 230 VAC, with AC-15 utilization at 4 A and DC-13 utilization at 24 VDC also at 4 A, ensuring compatibility with various control systems. Trust in Schmersal's commitment to machine safety with this dependable solenoid interlock solution.

Brand	SCHMERSAL
Cable Note	All indications including the conductor ferrules.
Coding Level According to EN ISO 14119	Low
eCl@ss Number, Version 11.0	27-27-26-03
eCl@ss Number, Version 9.0	27-27-26-06
ETIM 6.0	EC001038
ETIM 7.0	EC001487
Gross Weight (g)	36
Housing Construction Form	Norm construction design
Maximum Actuating Speed (m/s)	1
Maximum Fuse Rating	6 A gG D-fuse quick blow
Maximum Temperature (°C)	60
Minimum Actuating Speed (mm/min)	1
Minimum Ambient Temperature (°C)	-15
Minimum Positive Break Force (N)	40
Minimum Temperature (°C)	-25
Net Weight (g)	36
No. of Auxiliary Contacts	4
No. of Safety Contacts	1
Rated Short-circuit Current (A)	1000
Resistance to Shock (g/ms)	30 / 11
Sensor Height (mm)	289
Sensor Length (mm)	38.5
Switching Element	NO contact, NC contact
Switching Principle	Slow action
Thermal Test Current (A)	25
Utilisation Category	DC-13 \| AC-15
Utilisation Category DC-13	0.05 A
Wire Cross-Section	13 AWG
Working Principle	Electromechanical
Actuator Type	Magnet
Contact Material	Silver
Degree of Protection	IP67
EAN	4030660000000
Enclosure Coating Material	Painted
Enclosure Material	Plastic
Height (mm)	98
Maximum Ambient Temperature (°C)	70
Maximum Cable Cross Section (mm²)	1.5
Minimum Cable Cross Section (mm²)	0.75
Minimum Mechanical Life	1000000 Operations
Mounting Type	A 20 mm screw length usually suffices to mount the sensor. When the mounting plates are used, we recommend 25 mm long screws.
Overvoltage Category	3
Pollution Degree	3
Rated Impulse Withstand Voltage (kV)	4
Rated Insulation Voltage (V)	300
Series	AZM170
Standards	EN IEC 60947-5-1 / EN ISO 13849-1 / BG-GS-ET-15
Storage Temperature (°C)	-25 to 70
Terminal Type	Connector
Width (mm)	40

Safety Interlocks

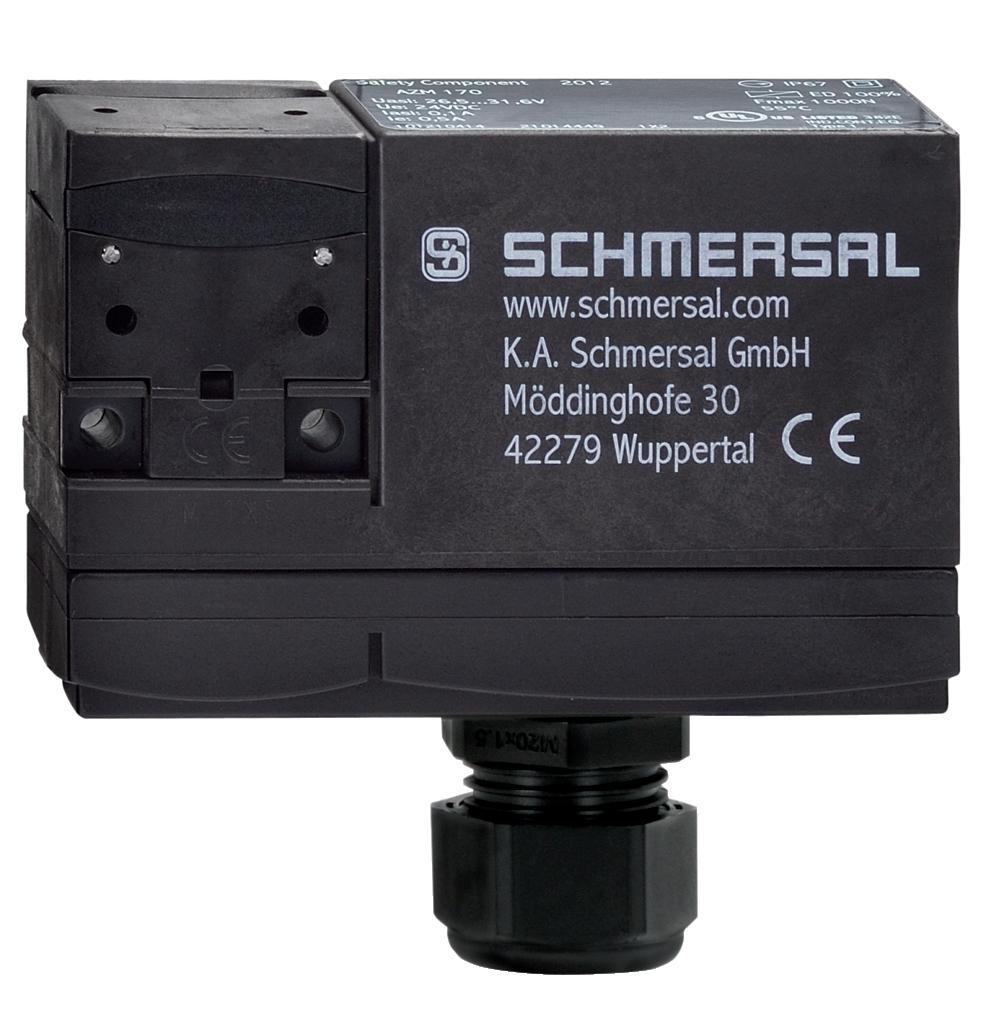

SCHMERSAL AZM170-11ZRK-230 VAC SOLENOID INTERLOCK 101136325
