Product Code: 101133843

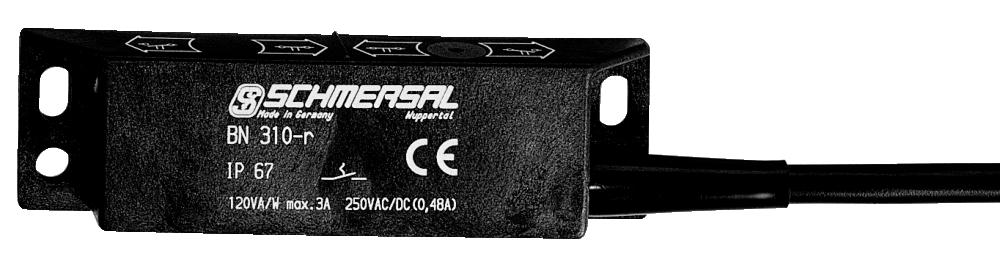

Explore the Schmersal BN310 Series Magnetic Reed Switch, a robust position sensor designed for precision and durability. This flat, rectangular switch features a thermoplastic enclosure with a terminal connector cable, ensuring easy integration into your system. Engineered for side actuation with a bistable contact element, it is ideal for elevator applications and latching mechanisms. The switch operates within an actuation distance range of 5 mm to 60 mm and can handle a maximum switching voltage of 250 VAC or DC. It supports a maximum switching current of 3 A and has a switching capacity of up to 120 W at 300 Hz. The reed contacts are crafted for reliability, but note that actuators are sold separately. This device is built to withstand harsh conditions with an operating temperature range from -25°C to 75°C and boasts an IP67 rating according to IEC/EN 60529 standards, ensuring protection against dust and water immersion. Trust in the quality and performance of Schmersal's BN310 Series for your positioning sensor needs in demanding environments.

Cable Note	All indications including the conductor ferrules.
Coding Level According to EN ISO 14119	Low
eCl@ss Number, Version 11.0	27-27-26-06
eCl@ss Number, Version 9.0	27-27-26-06
ETIM 6.0	EC001487
ETIM 7.0	EC000030
Gross Weight (g)	170
Housing Construction Form	Norm construction design
Installation Conditions	Not flush
Maximum Actuating Speed (m/s)	1
Maximum Fuse Rating	2 A gG D-fuse
Maximum Nominal Output Voltage AC (V)	250
Maximum Nominal Output Voltage DC (V)	250
Maximum Temperature (°C)	75
Minimum Actuating Speed (mm/min)	20
Minimum Ambient Temperature (°C)	0
Minimum Positive Break Force (N)	19
Minimum Temperature (°C)	-25
Net Weight (g)	25
No. of Auxiliary Contacts	2
No. of Safety Contacts	3
Nominal Output Current (A)	3
Nominal Power (W)	120
Protection Class of Operating Resource	3
Rated Short-circuit Current (A)	1000
Resistance to Shock (g/ms)	30 / 11
Sensor Height (mm)	107
Sensor Length (mm)	31
Switching Element	1 NO contact, 1 NC contacts
Switching Principle	Slow action
Thermal Test Current (A)	16
Utilisation Category	DC-13 \| AC-15
Utilisation Category DC-13	0.05 A
Wire Cross-Section	23 AWG
Working Principle	Mechanical
Brand	SCHMERSAL
Actuator Type	Magnet
Contact Material	Silver
Degree of Protection	IP67
EAN	4030660000000
Enclosure Coating Material	Painted
Enclosure Material	Plastic, glass-fibre-reinforced
Height (mm)	11.3
Maximum Ambient Temperature (°C)	50
Maximum Cable Cross Section (mm²)	1.5
Minimum Cable Cross Section (mm²)	0.75
Minimum Mechanical Life	1000000 Operations
Mounting Type	Threaded
Overvoltage Category	3
Pollution Degree	3
Rated Impulse Withstand Voltage (kV)	4
Rated Insulation Voltage (V)	300
Series	BN310
Standards	EN IEC 61496-1 / EN IEC 61496-2
Storage Temperature (°C)	25 to 85
Terminal Type	Connector
Width (mm)	22.5
