Cable Note	All indications including the conductor ferrules.
Coding Level According to EN ISO 14119	Low
eCl@ss Number, Version 11.0	27-27-26-06
eCl@ss Number, Version 9.0	27-27-26-06
ETIM 6.0	EC001487
ETIM 7.0	EC001029
Gross Weight (g)	380
Housing Construction Form	Norm construction design
Installation Conditions	Not flush
Maximum Actuating Speed (m/s)	1
Maximum Fuse Rating	6 A gG D-fuse
Minimum Actuating Speed (mm/min)	120
Minimum Ambient Temperature (°C)	-40
Minimum Positive Break Force (N)	16
Net Weight (g)	25
No. of Auxiliary Contacts	1
No. of Safety Contacts	1
Protection Class of Operating Resource	3
Rated Short-circuit Current (A)	1000
Resistance to Shock (g/ms)	30 / 11
Sensor Height (mm)	93.5
Sensor Length (mm)	30
Switching Element	NC contact, NO contact
Switching Principle	Slow action
Thermal Test Current (A)	16
Utilisation Category	DC-13 \| AC-15
Utilisation Category DC-13	0.05 A
Wire Cross-Section	13 AWG
Working Principle	Mechanical
Brand	SCHMERSAL
Actuator Type	Magnet
Contact Material	Silver
Degree of Protection	IP66
EAN	4030660000000
Enclosure Coating Material	Painted
Enclosure Material	Metal, zinc die-cast
Height (mm)	11
Maximum Ambient Temperature (°C)	80
Maximum Cable Cross Section (mm²)	1.5
Minimum Cable Cross Section (mm²)	0.75
Minimum Mechanical Life	1000000 Operations
Mounting Type	Snaps onto standard DIN rail to EN 60715
Overvoltage Category	3
Pollution Degree	3
Rated Impulse Withstand Voltage (kV)	4
Rated Insulation Voltage (V)	300
Standards	EN IEC 61496-1 / EN IEC 61496-2
Storage Temperature (°C)	25 to 85
Terminal Type	Connector
Width (mm)	112.5

Presence Sensing Safety Devices

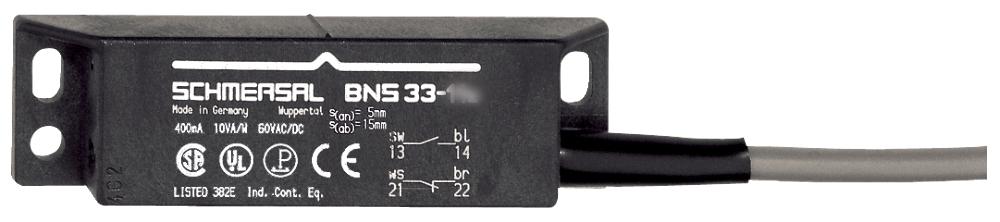

SCHMERSAL MAGNETIC SAFETY SENSOR 2NC+1NO CABLE 101133729
