Cable Note |
All indications including the conductor ferrules. |
|
Coding Level According to EN ISO 14119 |
Low |
|
eCl@ss Number, Version 11.0 |
27-27-26-01 |
|
eCl@ss Number, Version 9.0 |
27-37-12-43 |
|
ETIM 6.0 |
EC001029 |
|
ETIM 7.0 |
EC000030 |
|
Gross Weight (g) |
25 |
|
Housing Construction Form |
Norm construction design |
|
Installation Conditions |
Not flush |
|
Maximum Actuating Speed (m/s) |
1 |
|
Maximum Fuse Rating |
6 A gG D-fuse |
|
Maximum Temperature (°C) |
60 |
|
Minimum Actuating Speed (mm/min) |
60 |
|
Minimum Ambient Temperature (°C) |
-30 |
|
Minimum Positive Break Force (N) |
17 |
|
Minimum Temperature (°C) |
-25 |
|
Net Weight (g) |
50 |
|
No. of Auxiliary Contacts |
3 |
|
No. of Safety Contacts |
1 |
|
Nominal Output Current (A) |
0.1 |
|
Protection Class of Operating Resource |
3 |
|
Rated Maximum Operational Voltage DC (V) |
24 |
|
Rated Short-circuit Current (A) |
1000 |
|
Resistance to Shock (g/ms) |
30 / 11 |
|
Sensor Height (mm) |
107 |
|
Sensor Length (mm) |
57.25 |
|
Switching Element |
NC contact, NO contact |
|
Switching Principle |
Slow action with overlapping contacts |
|
Thermal Test Current (A) |
16 |
|
Utilisation Category |
DC-13 | AC-15 |
|
Utilisation Category DC-13 |
0.05 A |
|
Wire Cross-Section |
13 AWG |
|
Working Principle |
Mechanical |
|
Brand |
SCHMERSAL |
|
Actuator Type |
Magnet |
|
Contact Material |
Silver |
|
Degree of Protection |
IP20 |
|
EAN |
4030660000000 |
|
Enclosure Coating Material |
Painted |
|
Enclosure Material |
Plastic, glass-fibre-reinforced |
|
Height (mm) |
100 |
|
Maximum Ambient Temperature (°C) |
75 |
|
Maximum Cable Cross Section (mm²) |
1.5 |
|
Minimum Cable Cross Section (mm²) |
0.75 |
|
Minimum Mechanical Life |
1000000 Operations |
|
Mounting Type |
Snaps onto standard DIN rail to EN 60715 |
|
Overvoltage Category |
3 |
|
Pollution Degree |
3 |
|
Rated Impulse Withstand Voltage (kV) |
6 |
|
Rated Insulation Voltage (V) |
300 |
|

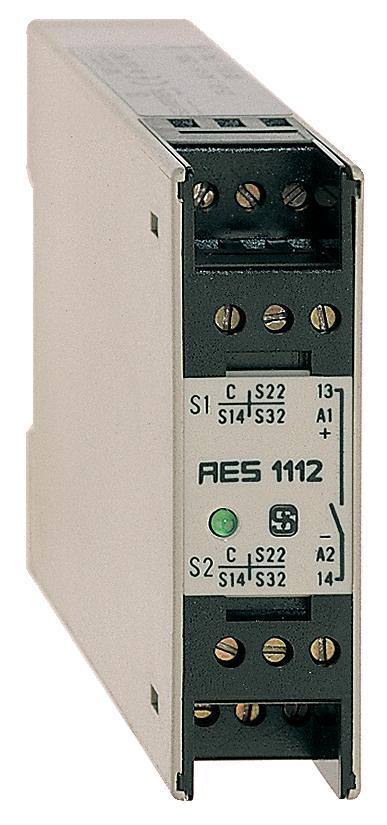

Series |
AES |
|
Standards |
EN IEC 61496-1 / EN IEC 61496-2 |
|
Storage Temperature (°C) |
-25 to 85 |
|
Terminal Type |
Screw terminals M20 x 1.5 |
|
Width (mm) |
22.5 |
