Product Code: 101128195

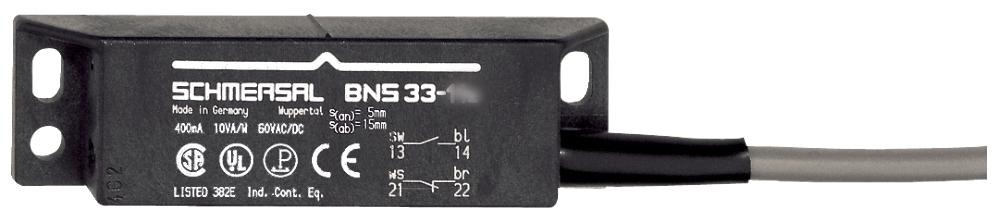

The Schmersal BNS33 series safety sensor is a robust machine safety solution designed with a thermoplastic enclosure to ensure durability. This sensor features a magnetic actuating element and lateral active area, requiring an evaluation unit for operation. It comes equipped with two openers and one shutter, streamlining integration into your safety system. The unit connects via a 1-meter cable terminal connector and operates at a switching voltage of 100 V AC/DC, with a current of 0.25 A and a switching capacity of 10 W. Ideal for engineers looking for reliable coding and machine safety without the need for additional safety contacts or cable wires, the BNS33 enhances workplace safety with precision and ease.

Cable Note	All indications including the conductor ferrules.
eCl@ss Number, Version 11.0	27-37-12-11
eCl@ss Number, Version 9.0	27-37-12-11
ETIM 6.0	EC000223
ETIM 7.0	EC002714
Gross Weight (g)	50
Housing Construction Form	Norm construction design
Installation Conditions	Not flush
Maximum Actuating Speed (m/s)	1
Maximum Fuse Rating	6 A gG D-fuse
Maximum Temperature (°C)	70
Minimum Actuating Speed (mm/min)	60
Minimum Ambient Temperature (°C)	-25
Minimum Positive Break Force (N)	17
Minimum Temperature (°C)	-25
Net Weight (g)	25
No. of Auxiliary Contacts	1
No. of Safety Contacts	1
Nominal Output Current (A)	0.25
Nominal Power (W)	10
Protection Class of Operating Resource	3
Rated Maximum Operational Voltage AC (V)	100
Rated Maximum Operational Voltage DC (V)	100
Rated Short-circuit Current (A)	1000
Resistance to Shock (g/ms)	30 / 11
Sensor Height (mm)	73.5
Sensor Length (mm)	24
Switching Element	NC contact, NO contact
Switching Principle	Slow action
Thermal Test Current (A)	2.5
Utilisation Category	DC-13 \| AC-15
Utilisation Category DC-13	2.5 A
Wire Cross-Section	0.25 mm
Working Principle	Mechanical
Brand	SCHMERSAL
Actuator Type	Magnet
Contact Material	Silver
Degree of Protection	IP67
EAN	4030660000000
Enclosure Coating Material	Painted
Enclosure Material	Metal, zinc die-cast
Height (mm)	120
Maximum Ambient Temperature (°C)	80
Maximum Cable Cross Section (mm²)	1.5
Minimum Cable Cross Section (mm²)	0.34
Minimum Mechanical Life	1000000 Operations
Mounting Type	Snaps onto standard DIN rail to EN 60715
Overvoltage Category	3
Pollution Degree	2
Rated Impulse Withstand Voltage (kV)	6
Rated Insulation Voltage (V)	400
Series	BNS33
Standards	EN IEC 61496-1 / EN IEC 61496-2
Storage Temperature (°C)	-25 to 70
Terminal Type	Connector
Width (mm)	22.5

Presence Sensing Safety Devices

SCHMERSAL BNS33-12Z-2187 SAFETY SENSOR 101128195
