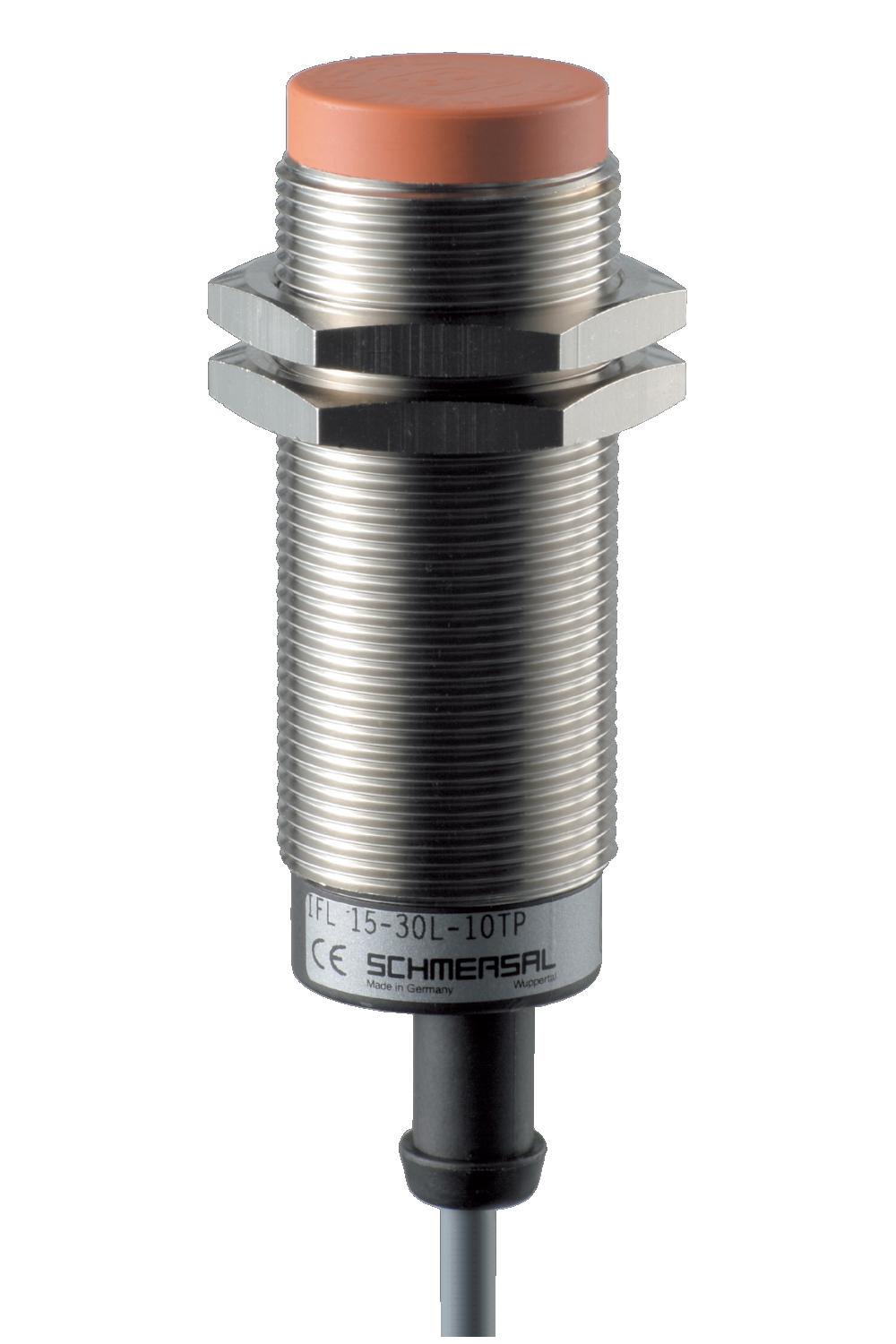

SCHMERSAL IFL15-30L-10TP INDUCTIVE PROXIMITY SWITCH 101127041

Product Code: 101127041

Explore the Schmersal IFL Series Inductive Proximity Switch, a robust sensor designed for precision and durability. This DC 3-wire, long-bodied sensor features a cylindrical M30 ISO thread for easy installation. With a generous 15 mm sensing distance and NO contact switching element, it ensures reliable detection for your engineering needs. The metal enclosure provides sturdy protection in demanding environments. Operating within a voltage range of 10 to 30VDC and capable of handling up to 200 mA, this switch is built to perform with a switching frequency of 100 Hz. Its digital output is rated at 1.2 V and 0.2 A, p-type, ensuring clear signal transmission even in the presence of inductive interference. Safety features include polarity reversal protection and surge protection, enhancing the longevity of the device. The unit operates effectively within a temperature range from -25°C to 70°C and boasts an IP67 rating according to IEC/EN 60532 standards, signifying its resistance to dust and water ingress. Status indication provides immediate operational feedback for ease of monitoring. Ideal for various applications requiring precise position sensing, the Schmersal IFL Series is an excellent choice for engineers seeking reliable performance in industrial settings.

Technical Specifications

Actuator Type Magnet
Enclosure Material Plastic, glass-fibre-reinforced
Gross Weight (g) 50
Net Weight (g) 25
Installation Conditions Not flush
Wire Cross-Section 0.25 mm
Enclosure Coating Material Painted
Maximum Temperature (°C) 70
Minimum Ambient Temperature (°C) -25
Minimum Temperature (°C) -25
Brand SCHMERSAL
Series IFL
Working Principle Electromechanical
Housing Construction Form Norm construction design
EAN 4030660000000
eCl@ss Number, Version 9.0 27-27-26-06
ETIM 7.0 EC001260
ETIM 6.0 EC000030
eCl@ss Number, Version 11.0 27-37-12-11
Protection Class of Operating Resource 3
Cable Note All indications including the conductor ferrules.
Maximum Ambient Temperature (°C) 70
Maximum Cable Cross Section (mm²) 1.5
Minimum Cable Cross Section (mm²) 0.34
Mounting Type Threaded
Storage Temperature (°C) -25 to 70
Contact Material Silver
Maximum Actuating Speed (m/s) 0.5
Maximum Fuse Rating 2 A gG D-fuse
Maximum Nominal Output Voltage DC (V) 1.2
Minimum Actuating Speed (mm/min) 10
Minimum Mechanical Life 100000000 Operations
Minimum Positive Break Force (N) 19
No. of Auxiliary Contacts 2
No. of Safety Contacts 2
Nominal Output Current (A) 0.2
Overvoltage Category 3
Rated Impulse Withstand Voltage (kV) 4
Rated Insulation Voltage (V) 250
Rated Maximum Operational Voltage DC (V) 30
Rated Minimum Operational Voltage DC (V) 10
Rated Operational Current (A) 0.2
Rated Short-circuit Current (A) 1000
Resistance to Shock (g/ms) 30 / 11
Switching Element 1 NO contact, 2 NC contacts
Switching Principle Slow action
Terminal Type Connector
Height (mm) 26
Utilisation Category DC-13 | AC-15
Width (mm) 22.5
Utilisation Category DC-13 2.5 A
Sensor Length (mm) 126
Sensor Height (mm) 67
Degree of Protection IP67
Pollution Degree 3
Standards EN IEC 61496-1 / EN IEC 61496-2
