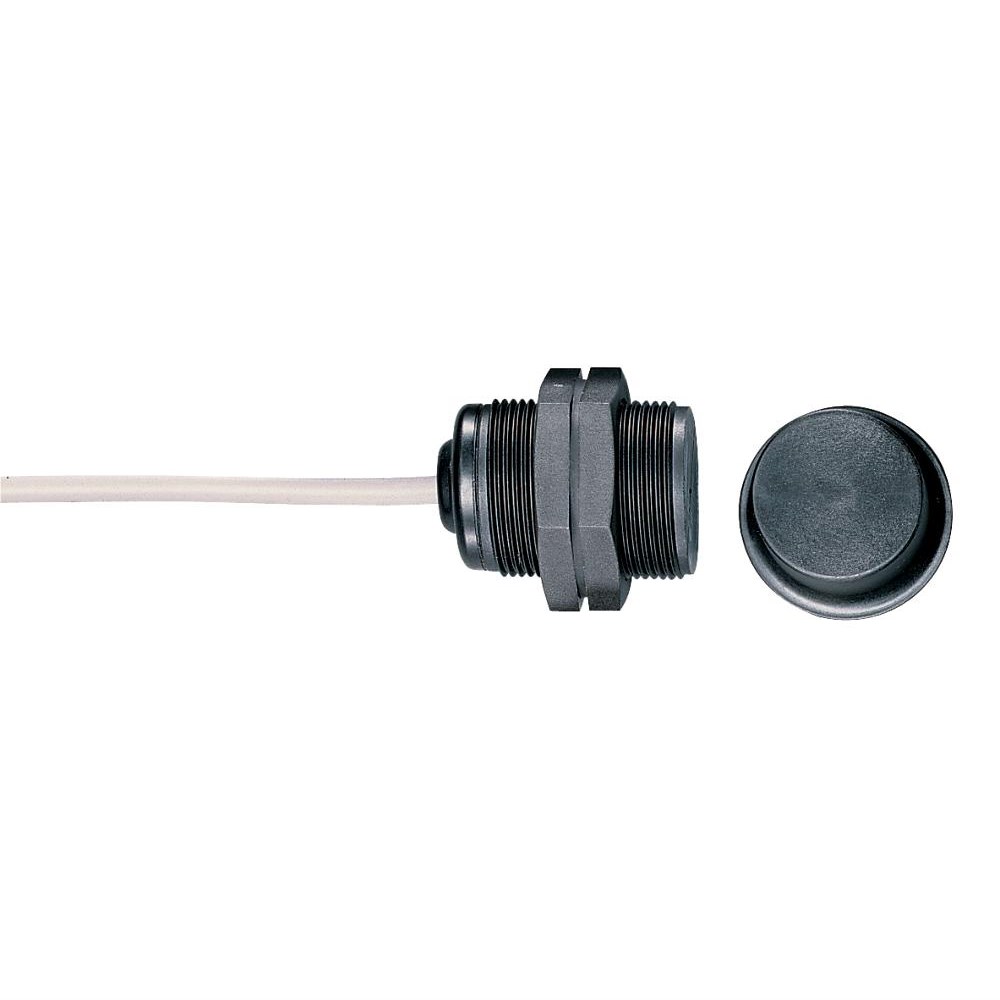

Cable Note |
All indications including the conductor ferrules. |
|
Coding Level According to EN ISO 14119 |
Low |
|
eCl@ss Number, Version 11.0 |
27-37-12-26 |
|
eCl@ss Number, Version 9.0 |
27-27-26-06 |
|
ETIM 6.0 |
EC001487 |
|
ETIM 7.0 |
EC000030 |
|
Gross Weight (g) |
25 |
|
Housing Construction Form |
Norm construction design |
|
Installation Conditions |
Not flush |
|
Maximum Actuating Speed (m/s) |
0.5 |
|
Maximum Fuse Rating |
6 A gG D-fuse |
|
Maximum Switching Capacity (W) |
0.24 |
|
Maximum Temperature (°C) |
70 |
|
Minimum Actuating Speed (mm/min) |
120 |
|
Minimum Ambient Temperature (°C) |
0 |
|
Minimum Positive Break Force (N) |
20 |
|
Minimum Temperature (°C) |
-25 |
|
Net Weight (g) |
285 |
|
No. of Auxiliary Contacts |
1 |
|
No. of Safety Contacts |
1 |
|
Nominal Output Current (A) |
0.4 |
|
Nominal Power (W) |
10 |
|
Protection Class of Operating Resource |
3 |
|
Rated Maximum Operational Voltage AC (V) |
100 |
|
Rated Maximum Operational Voltage DC (V) |
100 |
|
Rated Short-circuit Current (A) |
400 |
|
Recommended Safety Switchgear |
PROTECT PSC1 | SRB-E-301ST | SRB-E-201LC |
|
Resistance to Shock (g/ms) |
110 / 4 - 30 / 18 |
|
Sensor Height (mm) |
103.5 |
|
Sensor Length (mm) |
30 |
|
Switching Element |
1 NO contact, 1 NC contacts |
|
Switching Principle |
slow action, positive break NC contact |
|
Utilisation Category |
DC-13 | AC-15 |
|
Wire Cross-Section |
0.75 mm |
|
Working Principle |
Magnetic drive |
|
Brand |
SCHMERSAL |
|
Actuator Type |
Magnet |
|
Contact Material |
Silver |
|
Degree of Protection |
IP67 |
|
EAN |
4030660000000 |
|
Enclosure Coating Material |
Painted |
|
Enclosure Material |
Aluminium |
|
Height (mm) |
69 |
|
Maximum Ambient Temperature (°C) |
80 |
|
Maximum Cable Cross Section (mm²) |
1.5 |
|
Minimum Cable Cross Section (mm²) |
0.34 |
|
Minimum Mechanical Life |
1000000 Operations |
|
Mounting Type |
Snaps onto standard DIN rail to EN 60715 |
|
Overvoltage Category |
3 |
|
Pollution Degree |
3 |
|
Rated Impulse Withstand Voltage (kV) |
6 |
|
Rated Insulation Voltage (V) |
250 |
|
Series |
BNS303 |
|
Standards |
EN IEC 60947-5-1 |
|
Storage Temperature (°C) |
-25 to 70 |
|
Terminal Type |
Connector |
|
Width (mm) |
105 |
