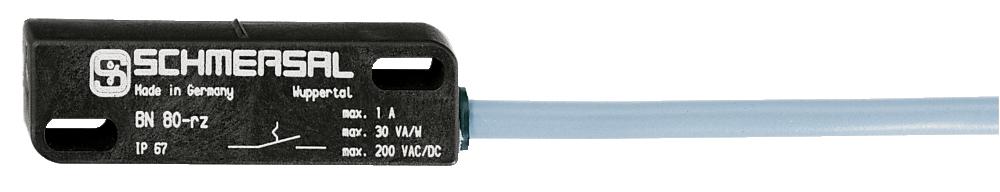

Assured "OFF" Switching Distance (mm) |
20 |
|
Assured "ON" Switching Distance (mm) |
1 |
|
Cable Note |
All indications including the conductor ferrules. |
|
Coding Level According to EN ISO 14119 |
Low |
|
Design of Control Element |
Short-circuit proof, p-type |
|
eCl@ss Number, Version 11.0 |
27-27-26-01 |
|
eCl@ss Number, Version 9.0 |
27-27-26-01 |
|
ETIM 6.0 |
EC002544 |
|
ETIM 7.0 |
EC002714 |
|
Gross Weight (g) |
1500 |
|
Housing Construction Form |
Norm construction design |
|
Installation Conditions |
Quasi-flush |
|
Integral System Diagnostics Status |
Yes |
|
Latching Force (N) |
30 |
|
Material of The Cable Mantle |
PUR |
|
Maximum Actuating Speed (m/s) |
1 |
|
Maximum Bounce Duration (ms) |
3 |
|
Maximum Electrical Power Consumption (W) |
10 |
|
Maximum Fuse Rating |
2 A gG D-fuse |
|
Maximum Holding Force (N) |
13000 |
|
Maximum Switching Capacity (W) |
8 |
|
Minimum Actuating Force (N) |
10 |
|
Minimum Actuating Speed (mm/min) |
10 |
|
Minimum Ambient Temperature (°C) |
-30 |
|
Minimum Positive Break Force (N) |
40 |
|
Net Weight (g) |
4.498 |
|
No. of Actuating Directions |
3 |
|
No. of Auxiliary Contacts |
1 |
|
No. of Cable Wires |
8 |
|
No. of Safety Contacts |
2 |
|
Positive Break Travel (mm) |
10 |
|
Protection Class of Operating Resource |
3 |
|
Rated Operating Current (mA) |
50 |
|
Rated Short-circuit Current (A) |
400 |
|
Recommended Actuator |
BPS 36-2 |
|
Recommended Safety Switchgear |
SRB-E-301ST | SRB-E-201LC |
|
Resistance to Shock (g/ms) |
30 / 11 |
|
Roller Material |
Plastic |
|
Sensor Height (mm) |
136 |
|
Sensor Length (mm) |
38 |
|
Switching Element |
2 NC contact |
|
Switching Principle |
Slow action |
|
Utilisation Category |
DC-13 | AC-15 |
|
Utilisation Category DC-13 |
0.05 A |
|
Wire Cross-Section |
0.25 mm |
|
Working Principle |
Mechanical |
|
Brand |
SCHMERSAL |
|
Actuator Type |
Magnet |
|
Cable Length (m) |
1 |
|
Contact Material |
Silver |
|
Degree of Protection |
IP54 |
|
Depth (mm) |
252.5 |
|
EAN |
4030660000000 |
|
Enclosure Coating Material |
Painted |
|
Enclosure Material |
Plastic, Polyamide PA 66 GV |
|
Height (mm) |
80 |
|
Maximum Ambient Temperature (°C) |
80 |
|
Maximum Cable Cross Section (mm²) |
2.5 |
|
Minimum Cable Cross Section (mm²) |
0.75 |
|
Minimum Mechanical Life |
30000000 Operations |
|
Mounting Type |
Rear-side mounting holes |
|
No. of Normally-open Contacts |
1 |
|
Overvoltage Category |
3 |
|
Pollution Degree |
2 |
|
Rated Impulse Withstand Voltage (kV) |
6 |
|
Rated Insulation Voltage (V) |
400 |
|
Standards |
EN IEC 60947-5-1 |
|
Storage Temperature (°C) |
-25 to 70 |
|
Terminal Type |
Cable outlet left and 2 shielding plates with LED |
|
Width (mm) |
10 |
