POWERDUCT BUSWAY

FLEXIBLE POWER DISTRIBUTION

IPD’s range of Powerduct busway systems are the ideal solution for distributing electrical power in any application, offering significant time, cost, safety and performance benefits over traditional cabling methods.

End to end service capabilities

Nation-wide technical support

Revit models provided

Why Powerduct?

Because Conventional Cabling Isn’t Enough

When it comes to electrical power distribution, traditional cabling can be complex, time consuming, and inflexible. That’s where IPD’s Powerduct busway systems change the game. Designed to deliver high performance and modular adaptability across a broad range of applications, Powerduct is the go to solution for modern power infrastructure.

Stay up to date

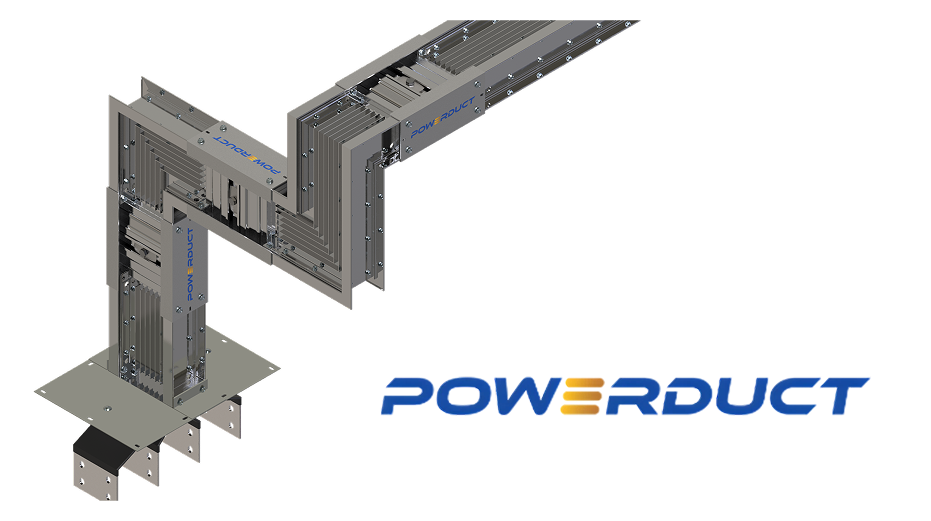

Powerduct Busway

The Powerduct Busduct provides a high-capacity, durable, and safety-focused power distribution solution for demanding electrical installations. Designed for heavy-duty environments, it offers reliable performance with feeder IP protection ratings up to IP68, mechanical interlocking for safe operation, and current ratings from 400A to 5000A (Al) and 400A to 6300A (Cu). Ideal for large scale infrastructure, the system supports applications in high-rise buildings, industrial and manufacturing facilities, hospitals, machine shops and labs, large data centres, EV charging networks, and transport hubs including rail, airports, and seaports.

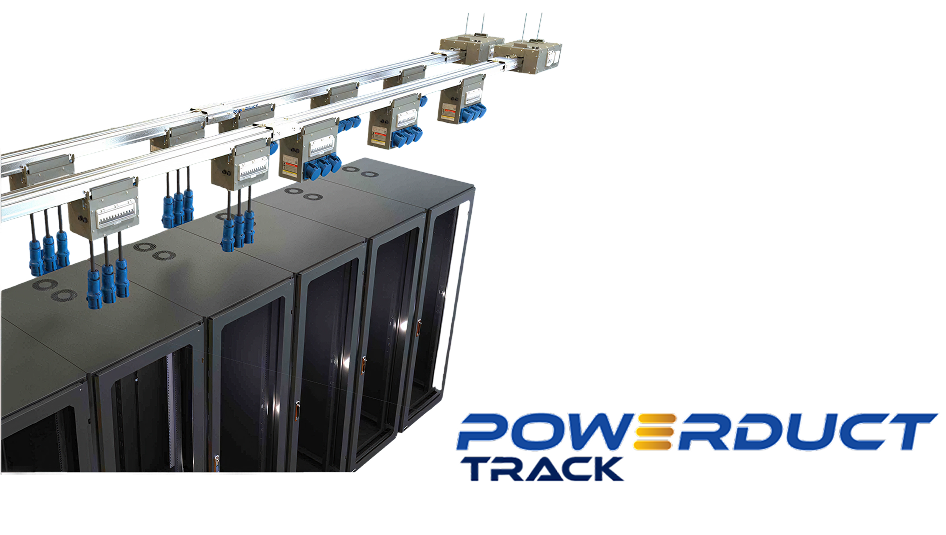

Powerduct Track

The Track Busway 800A (Cu) 1000V system provides a secure, flexible and high capacity power distribution solution for data centre environments. It features IP40 protection with cover plate / IP2X base, a fully grounded copper or aluminium housing and integrated DC management and monitoring. The design supports live pluggable plug-in units (<100A), enabling fast, safe load additions and changes without downtime making it ideal for modern data centres requiring scalable and continuous power availability.

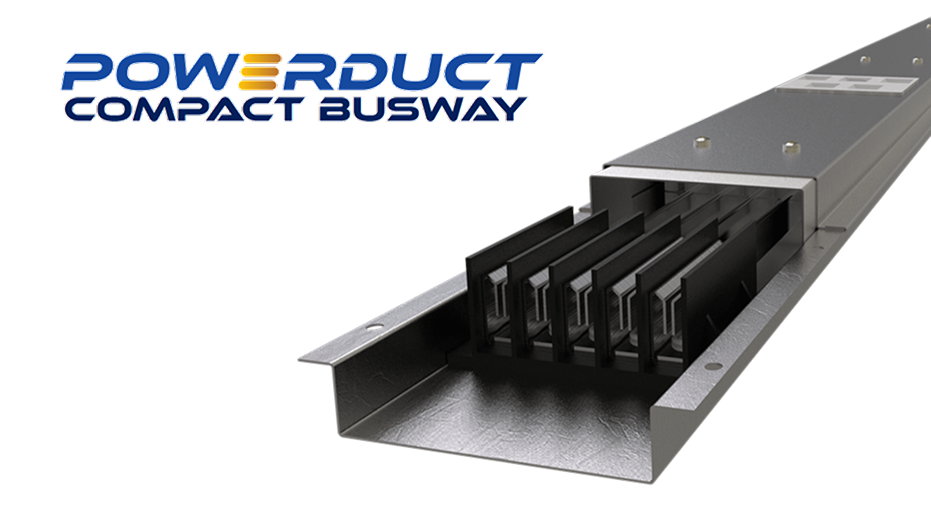

Powerduct Compact Busduct

The Compact Busduct 100A–250A provides a space efficient, flexible power distribution system rated to 600V with IP40–IP55 protection. Built with aluminium or steel housing, it offers a compact profile, supports plug-in and tap-off connections (15–200A). Ideal for EV charging, workshops and warehouses requiring quick-install, adaptable power distribution.

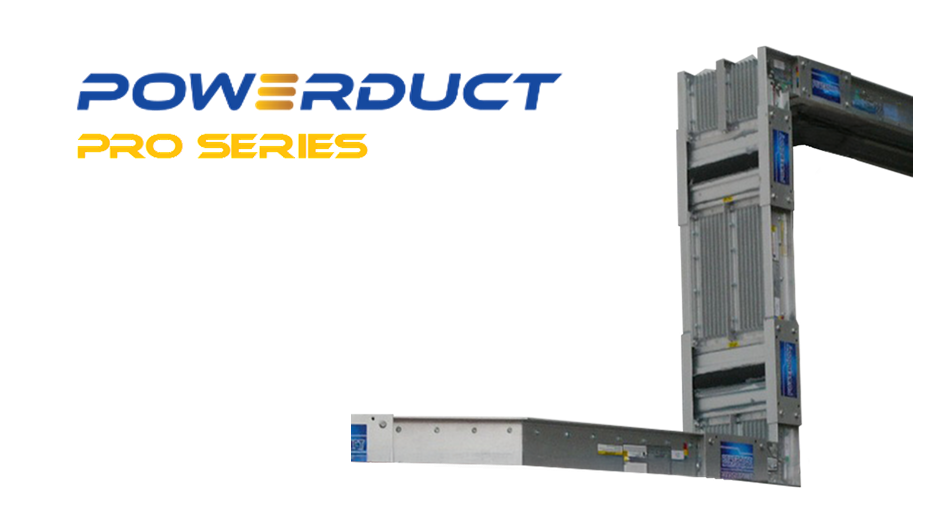

Powerduct Pro Busways

The Powerduct Pro Busway delivers high capacity, outdoor ready power distribution with ratings from 400A to 6300A (Cu) and 400A to 6000A (Al) at 1000V. Designed for harsh environments, it offers IP68 feeder protection, IP55 plug-in protection, UV resistant construction, optional thermal indicators and compact, lightweight housing. With IP68-rated joints for reliable weatherproofing, it is ideal for outdoor applications such as transformer to MSB connections, tunnels, HVAC systems and heavy machinery installations.
