Brand	ELKO
Contacts	3CO
Control Terminals	A1-S
Degree of Protection	IP40 (Front Panel), IP20 (Terminals)
Dimensions (mm)	17.6W x 90H x 64D
LED Colour	Supply - Green, Output - Red
Load Between S-A2	Yes
Maximum Power Dissipation (W)	2.4
Mounting Type	DIN Rail
No. of Functions	10
No. of Modules - Width 17.5 mm	1
Operational Temperature Range (°C)	-20 to +55
Output Contacts	1 x CO / SPDT 16 A, 2x CO / DPDT 8 A
Overvoltage Category	III
Pollution Degree	2
Rated Current (A)	8
Rated Frequency (Hz)	50/60
Standards and Approvals	EN 61812-1
Storage Temperature (°C)	-30 to +70
Switching Voltage (V)	250 AC/24 DC
Time Setting	Rotary switch, Potentiometer
Timing Range	0.1s - 10 days (divided into 10 ranges)
Universal Supply Voltage AC/DC (V)	12-240
Weight (g)	0.85

Electrical Time Switches, Timers & Control Relays

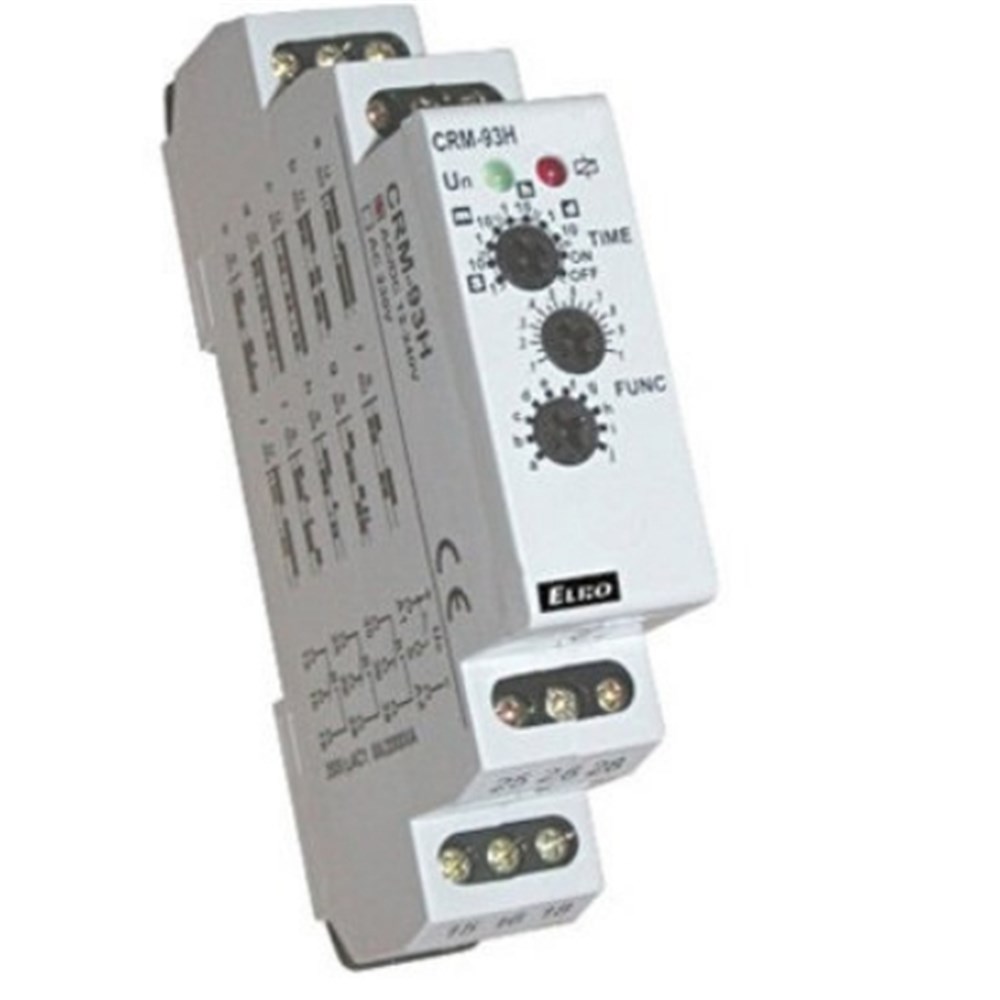

ELKO MULTIFUNCTION TIME RELAY 12-240V AC/DC 3C/O CONTACTS CRM-93H
