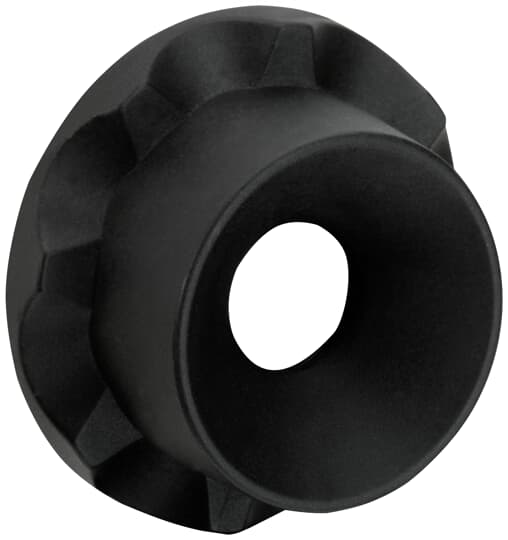

ABB SHAFT ALIGNMENT RING MSH-AR
Zoom
Zoom
ABB SHAFT ALIGNMENT RING MSH-AR
Product Code: MSH-AR
The shaft alignment ring MSH-AR can be used in door coupling solutions for operating manual motor starters MS116, MS132 or MS165 in the back of a switch cabinet from outside. MSH-AR supports long shafts OXS6 for alignment to the handle inlet. It is mandatory for the usage of shafts longer than 105mm.
Technical Specifications
Suitable Shaft Diameter (mm)
6 x 6
Brand
ABB
Dimensions (mm)
55W x 55H x 25D
Suitable For
MS116, MS132, MO132, MS450, MS451, MS495, MS496, MS497, MO450, MO495, MO496
Weight (kg)
0.02
Documents
Datasheet
Supplier Datasheet
IPD Product Catalogue V17
