Current Type	AC
Design of Control Element	Push Button
Earth Fault Protection	Yes
Icw (kA/3s) - Short-time Withstand Current Rating	50
Main Circuit Electrical Connection	Connection at Separate Chassis Part
Main Current Circuit Connection Position	Connection at Separate Chassis Part
No. of Auxiliary Change-over Contacts	4
Overload Release Current Setting (A)	1000
Rated Instantaneous Short-Circuit Current - Ii (A)	3750
Rated Short-time Withstand Current - Icw (kA/3s)	50
Brand	ABB
AC Voltage (V)	690
Breaking Capacity 400V AC - Icu (kA)	66
Component Type	Withdrawable
Current Rating (A)	2500
Degree of Protection	IP30
Dimensions (mm)	317W x 425H x 383D
EAN	8015644762667
Icw (kA/1s) - Short-time Withstand Current Rating	66
Indication	Switched-off Indicator
Iu - Uninterrupted Current Rating (A)	2500
No. of Poles	3
Poles	3P
Power Loss (W)	550
Rated Current (A)	2500
Rated Impulse Withstand Voltage (kV)	12
Rated Insulation Voltage AC (V)	1000
Rated Short-time Withstand Current - Icw (kA/1s)	66
Rated Uninterrupted Current - Iu (A)	2500
Rated Voltage (V)	690
Rated Voltage AC (V)	690
Suitable For	E2.2
Trip Unit	EKIP Touch LSIG
Trip Unit - Electronic	EKIP Touch LSIG
Version	Withdrawable

Air Circuit Breakers

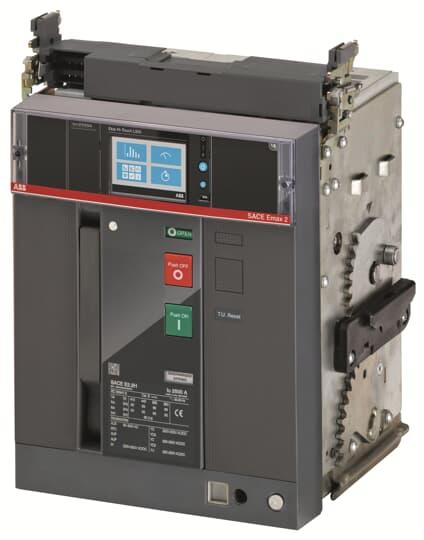

ABB E2.2N 2500 EKIP TOUCH LSIG 3P WMP 1SDA072416R1
