Current Type	AC
Design of Control Element	Push Button
Earth Fault Protection	Yes
Icw (kA/3s) - Short-time Withstand Current Rating	30
Main Circuit Electrical Connection	Connection at Separate Chassis Part
Main Current Circuit Connection Position	Connection at Separate Chassis Part
No. of Auxiliary Change-over Contacts	4
Overload Release Current Setting (A)	320
Rated Instantaneous Short-Circuit Current - Ii (A)	1200
Rated Short-time Withstand Current - Icw (kA/3s)	30
Brand	ABB
AC Voltage (V)	690
Breaking Capacity 400V AC - Icu (kA)	66
Component Type	Withdrawable
Current Rating (A)	800
Degree of Protection	IP30
Dimensions (mm)	278W x 363.5H x 271D
EAN	8015644759667
Icw (kA/1s) - Short-time Withstand Current Rating	50
Indication	Switched-off Indicator
Iu - Uninterrupted Current Rating (A)	800
No. of Poles	3
Poles	3P
Power Loss (W)	100
Rated Current (A)	800
Rated Impulse Withstand Voltage (kV)	12
Rated Insulation Voltage AC (V)	1000
Rated Short-time Withstand Current - Icw (kA/1s)	50
Rated Uninterrupted Current - Iu (A)	800
Rated Voltage (V)	690
Rated Voltage AC (V)	690
Suitable For	E1.2
Trip Unit	EKIP Touch LSIG
Trip Unit - Electronic	EKIP Touch LSIG
Version	Withdrawable

Air Circuit Breakers

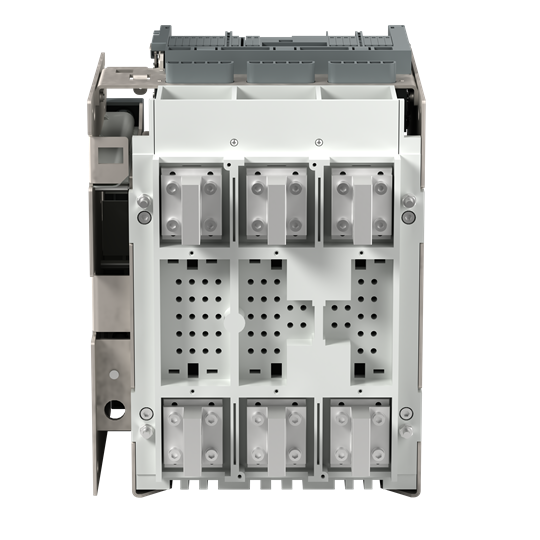

ABB E1.2N 800 EKIP TOUCH LSIG 3P WMP 1SDA072116R1
