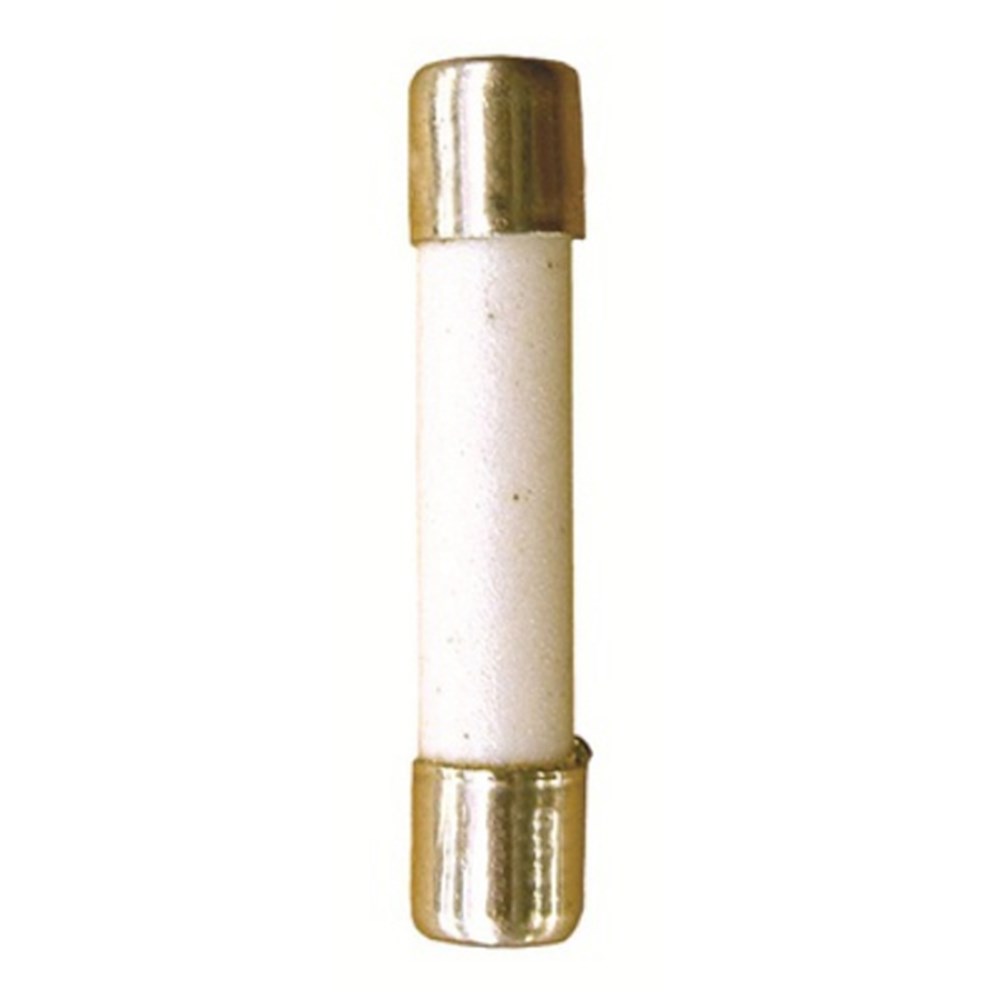

IPD AGDD500MA MINIATURE FUSE LINK TYPE M205, 500mA SLOW BLOW CERAMIC 5X20mm

Product Code: AGDD500MA

The AGDD Series is a slow blow, high breaking capacity ceramic tube type M205 miniature fuse link. It comes with a nickel-plated brass endcap and is designed to meet the IEC 60127-2 standard. This fuse has a voltage rating of 250VAC and a rated current of 500mA. The Interrupting Rating at the rated voltage (50Hz) is 1500A.

Technical Specifications

Brand IPD
Body Size (mm) 5 x 20
Functionality Time Delay
Interrupting Rating AC (A) 1500
Material Ceramic
Rated Current (A) 0.5
Rated Voltage AC (V) 250
