Industrial Fuse Links

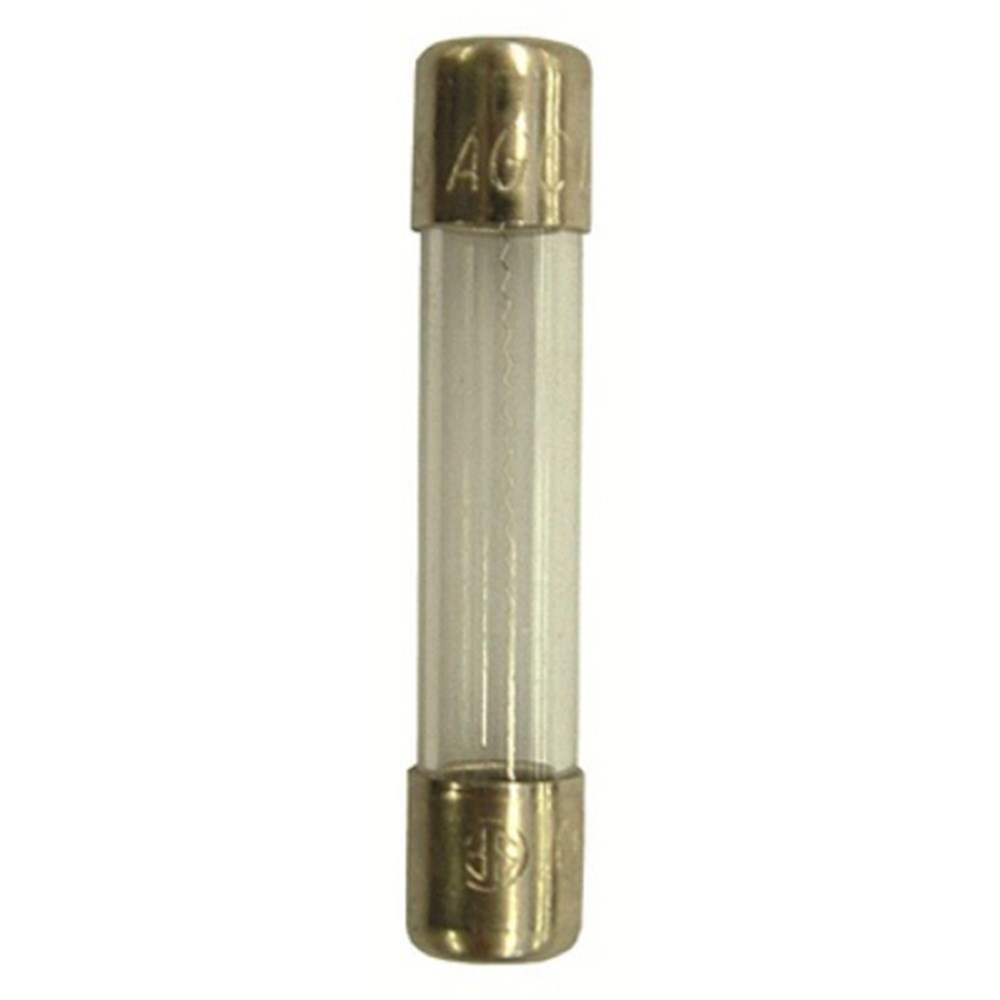

IPD MINIATURE FUSE LINK TYPE M205, 3.15A SLOW BLOW GLASS 5X20mm AGDC3.15

Product Code: AGDC3.15

The AGDC Series is a slow blow glass tube type M205 miniature fuse link. It comes with a nickel-plated brass endcap and is designed to meet the standards of IEC 60127-2. This fuse has a voltage rating of 250VAC and a rated current of 3.15A. Its interrupting rating at the rated voltage (50Hz) is 35A.

Technical Specifications

Brand IPD
Body Size (mm) 5 x 20
Functionality Time Delay
Interrupting Rating AC (A) 35
Material Glass
Rated Current (A) 3.15
Rated Voltage AC (V) 250
Typical DC Cold Resistance (?) 0.185
