Industrial Fuse Links

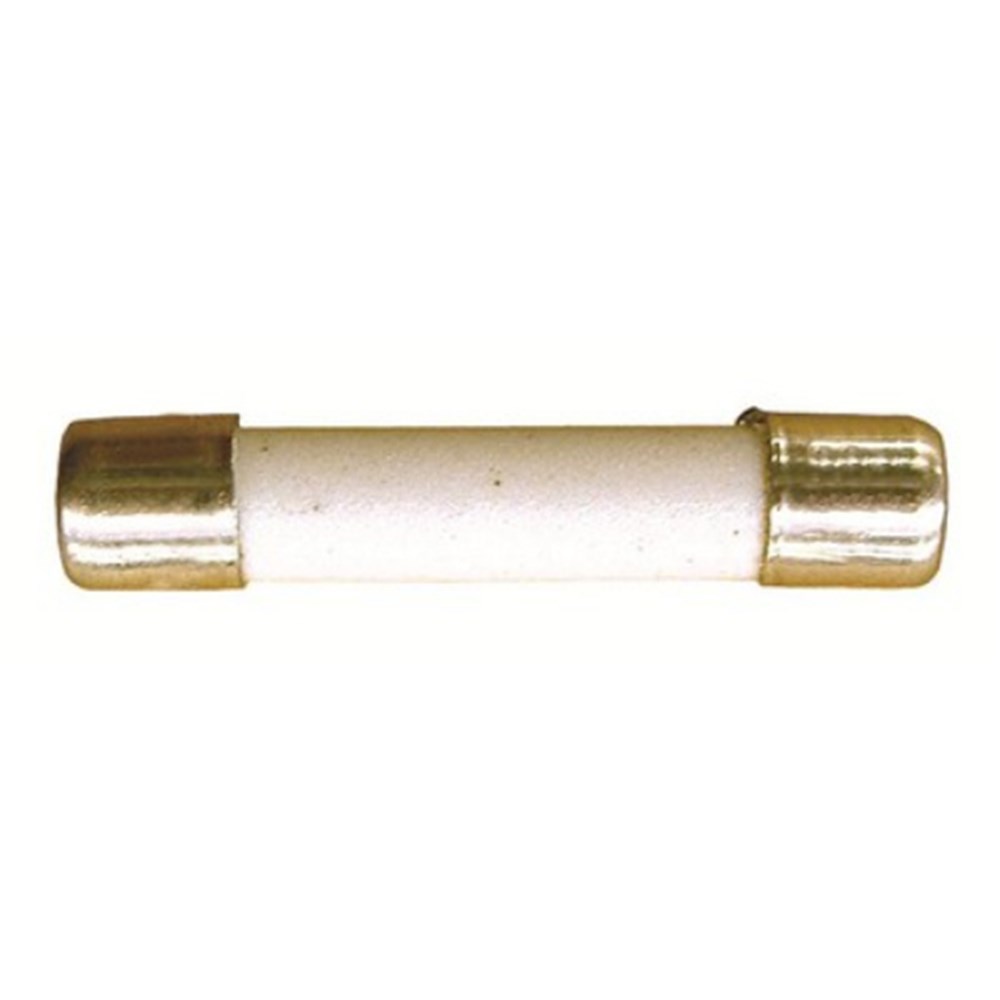

IPD AMDA25 MINIATURE FUSE LINK TYPE 3AG, 25A SLOW BLOW CERAMIC 6.3X32mm

Product Code: AMDA25

The AMDA Series is a slow blow ceramic tube type 3AG miniature fuse link. It comes with a nickel-plated brass endcap for added durability. This UL Listed product meets the standard 248-14. The voltage rating is 250VAC/125VDC, and it has a rated current of 25A.

Technical Specifications

Brand IPD
Body Size (mm) 6.3 x 32
Functionality Time Delay
Interrupting Rating AC (A) 1500 - 10000
Material Ceramic
Rated Current (A) 25
Rated Voltage AC (V) 250
Rated Voltage DC (V) 125

Documents
