Product Code: BC6301001

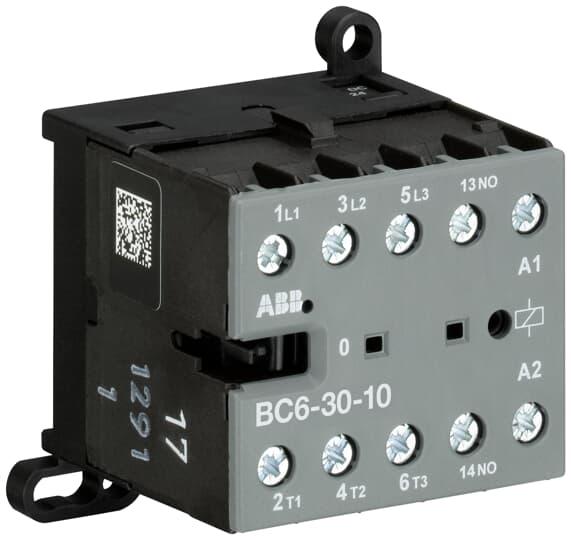

The BC6-30-10 mini contactor is a compact 3 pole contactor with 1 auxiliary contact and screw terminals. They are ideally suited for applications where reliability is a must and space is at a premium. Mini contactors are used in residential buldings, commercial buildings and industrial applications for the control of single or three-phase loads up to 4 kW (AC-3) and 20 A / 690 V (AC-1) or switching of control signals. Further features are the noiseless and hum-free coil, a switch position indication and the integrated possibility for rail or wall mounting.

Actuating Voltage Type	DC
Main Circuit Electrical Connection	Screw Connection
No. of Normally-open Auxiliary Contacts	1
Brand	ABB
Auxiliary Contacts	1NO
Degree of Protection	IP20
Dimensions (mm)	52.5W x 57.5H x 46.7D
Mounting Type	DIN Rail / Wall
No. of Normally-open Contacts	3
No. of Poles	3
Operating Voltage AC (V)	220
Operational Temperature Range (°C)	-25 to +55
Power Loss (W)	2.0/pole
Rated Control Circuit Voltage DC (V)	24
Rated Control Supply Voltage AC (V)	24
Rated Control Supply Voltage DC (V)	24
Rated Frequency (Hz)	50/60
Rated Impulse Withstand Voltage (kV)	6
Rated Insulation Voltage (V)	690
Rated Operational Current AC-1 240V (A)	20
Rated Operational Current AC-1 690V (A)	6
Rated Operational Power AC-3 400V (kW)	4
Rated Operational Power AC-3 415V (kW)	4
Rated Operational Voltage AC (V)	220
Rated Supply Voltage AC (V)	24
Terminal Type	Screw

Contactors

ABB BC6-30-10-01 MINI CONTACTOR 24 V DC - 3 NO - 0 NC - SCREW TERMINALS BC6301001

Product Code: BC6301001
