Brand	ABB
Design of Control Element	Toggle
I - Short-circuit Current Setting I3 (A)	1600
L - Overload Current Setting I1 (A)	112 - 160
Main Circuit Electrical Connection	Bolt Connection
Main Current Circuit Connection Position	Front Side
MCCB Type	XT1 Frame
Rated Instantaneous Short-Circuit Current - Ii (A)	1600
Trip Unit - Thermal Magnetic	TMD
Tripping Unit	TMD
Voltage (V)	690 AC
Breaking Capacity (kA)	70
Breaking Capacity 415V AC - Icu (kA)	70
Current Rating (A)	160
Degree of Protection	IP20
Dimensions (mm)	101.6W x 130H x 70D
EAN	8015644695248
No. of Poles	4
Poles	4P
Power Loss (W)	15
Rated Current (A)	160
Rated Frequency (Hz)	50/60
Rated Insulation Voltage (V)	800
Rated Uninterrupted Current - Iu (A)	160
Rated Voltage (V)	690
Standards and Approvals	IEC 60947-2
Trip Unit	TMD
Version	Fixed

Moulded Case Circuit Breakers

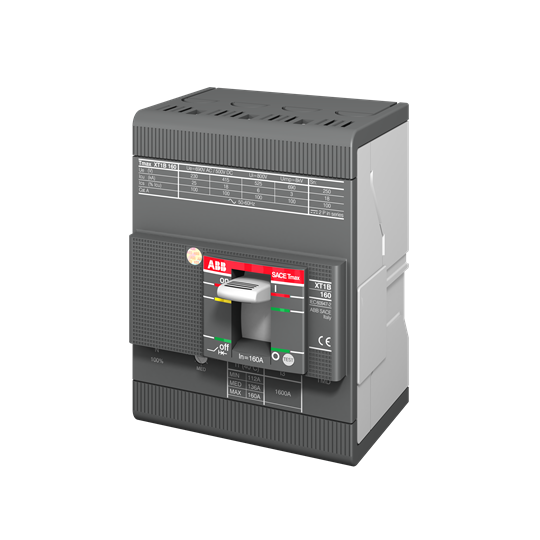

ABB XT1H 160 TMD 160-1600 4P F F INN=100% 1SDA067464R1
