Product Code: S804CC40

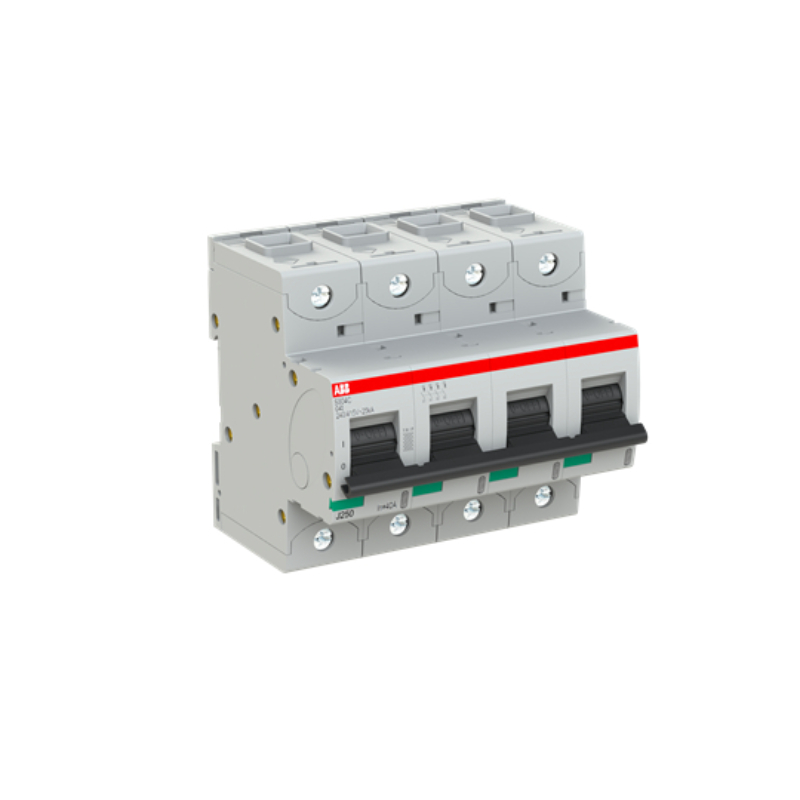

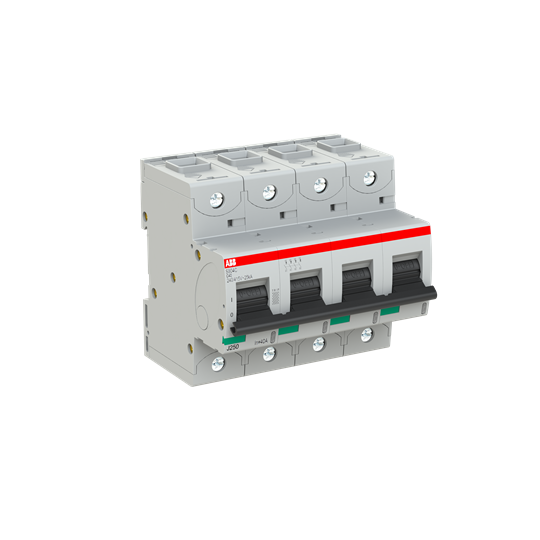

The ABB High Performance Miniature Circuit Breaker is designed for commercial and industrial use. It has a 4 pole configuration with a 40A capacity. The circuit breaker offers C curve protection against short circuits and thermal overload. It can handle high currents, with a rating of 25kA at 415VAC and 10kA at 500VDC. The breaker has a compact design, with a pole width of 27mm. Trust ABB for reliable circuit protection in your commercial or industrial applications.

Brand	ABB
Impulse Withstand Voltage (kV/1.2µS)	8
AC Voltage (V)	230/400
Application	Commercial and Industrial
Breaking Capacity (kA)	25 @400 V AC
Breaking Capacity 400V AC - Icu (kA)	25
Cable Cross Section - Flexible (mm²)	Top/Bottom - 70/70
Cable Cross Section - Solid/Stranded (mm²)	Top/Bottom - 50/50
Current Rating (A)	40
Curve Type	C Curve
DC Voltage (V)	500
Degree of Protection	IP20
Dimensions (mm)	95H x 82.5D x 106W
Family	S800C
Housing Material	Insulation group I, RAL 7035
Icn-Rated Short Circuit Capacity (kA)	15
Inc-Rated Conditional Short Circuit Capacity (kA)	25
Maximum Operational Voltage AC (V)	440
Maximum Operational Voltage DC (V)	500
Minimum Operational Voltage AC (V)	12
Mounting Type	DIN Rail
No. of Poles	4P
Pole Width (mm)	27
Poles	4P
Pollution Degree	3
Power Loss (W)	3.7/Pole
Rated Conditional Short-Circuit Current - Inc (kA)	25
Rated Current (A)	40
Rated Frequency (Hz)	50/60
Rated Impulse Withstand Voltage (kV)	8
Rated Insulation Voltage (V)	500
Rated Operational Voltage AC (V)	230/400
Rated Operational Voltage DC (V)	500
Rated Short-Circuit Capacity - Icn (kA)	15
Rated Voltage AC (V)	400
Series	S800C
Standards and Approvals	AS/NZS 60898-1,AS/NZS 60947-2, UL 1077
Trip Curve	C Curve

DIN MCB

ABB S804CC40 HIGH PERF. MCB 25kA 4P 40A 415VAC C CURVE
