ABB S804CC25 HIGH PERF. MCB 25kA 4P 25A 415VAC C CURVE
Zoom
Zoom
Zoom

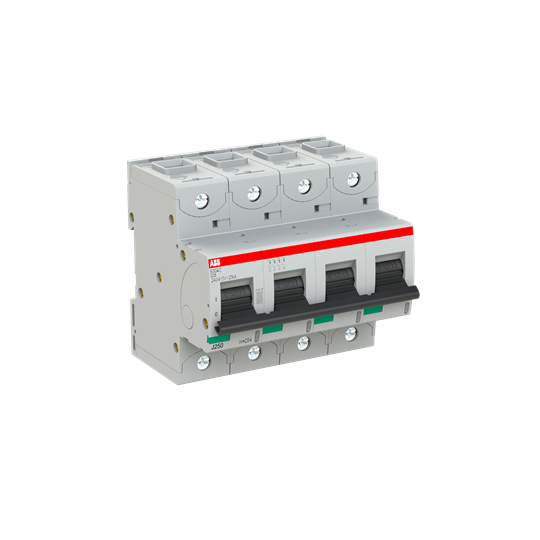

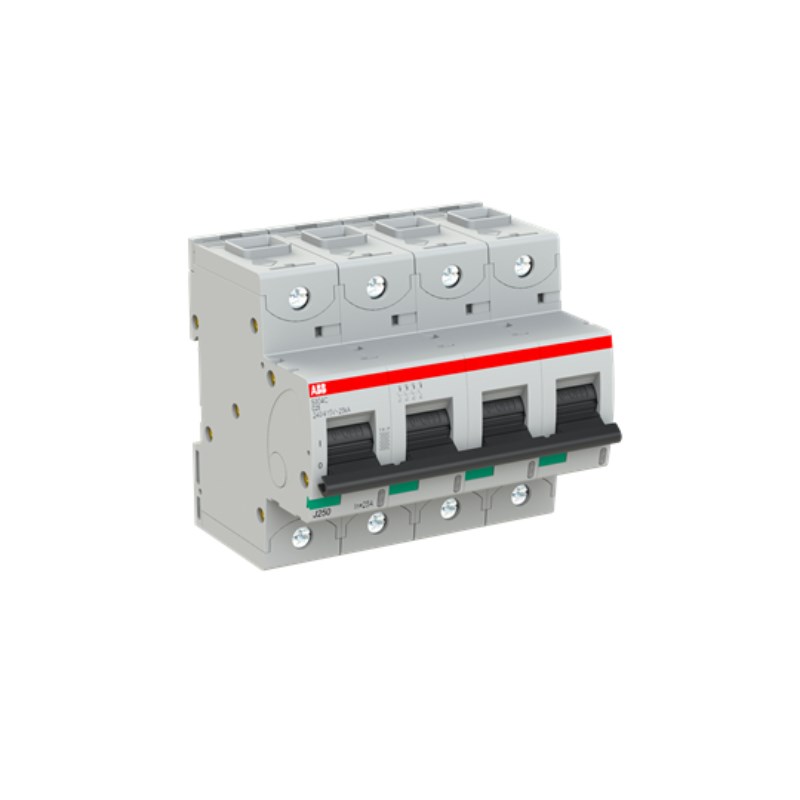

ABB S804CC25 HIGH PERF. MCB 25kA 4P 25A 415VAC C CURVE
Product Code: S804CC25
The ABB High Performance Miniature Circuit Breaker is designed for commercial and industrial use. It offers 4 poles with a 25A capacity and C curve protection against short circuit and thermal overload. With a pole width of 27mm, it provides high performance with a breaking capacity of 25kA at 415VAC and 10kA at 500VDC.
Technical Specifications
Brand
ABB
Impulse Withstand Voltage (kV/1.2µS)
8
AC Voltage (V)
230/400
Application
Commercial and Industrial
Breaking Capacity (kA)
25 @400 V AC
Breaking Capacity 400V AC - Icu (kA)
25
Cable Cross Section - Flexible (mm²)
Top/Bottom - 70/70
Cable Cross Section - Solid/Stranded (mm²)
Top/Bottom - 50/50
Current Rating (A)
25
Curve Type
C Curve
DC Voltage (V)
500
Degree of Protection
IP20
Dimensions (mm)
95H x 82.5D x 106W
Family
S800C
Housing Material
Insulation group I, RAL 7035
Icn-Rated Short Circuit Capacity (kA)
15
Inc-Rated Conditional Short Circuit Capacity (kA)
25
Maximum Operational Voltage AC (V)
440
Maximum Operational Voltage DC (V)
500
Minimum Operational Voltage AC (V)
12
Mounting Type
DIN Rail
No. of Poles
4P
Pole Width (mm)
27
Poles
4P
Pollution Degree
3
Power Loss (W)
4.3/Pole
Rated Conditional Short-Circuit Current - Inc (kA)
25
Rated Current (A)
25
Rated Frequency (Hz)
50/60
Rated Impulse Withstand Voltage (kV)
8
Rated Insulation Voltage (V)
500
Rated Operational Voltage AC (V)
230/400
Rated Operational Voltage DC (V)
500
Rated Short-Circuit Capacity - Icn (kA)
15
Rated Voltage AC (V)
400
Series
S800C
Standards and Approvals
AS/NZS 60898-1,AS/NZS 60947-2, UL 1077
Trip Curve
C Curve
