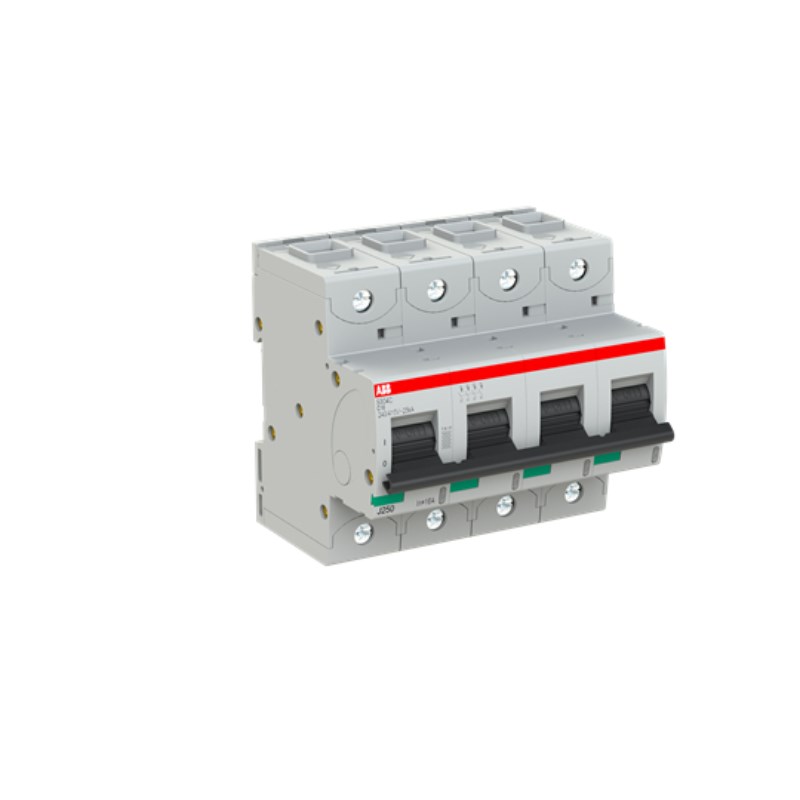

ABB S804CC16 HIGH PERF. MCB 25kA 4P 16A 415VAC C CURVE

Product Code: S804CC16

The ABB High Performance Miniature Circuit Breaker is designed for commercial and industrial use. It offers 4 poles with a 16A rating and C curve protection against short circuit and thermal overload. With a pole width of 27mm, it provides reliable performance. It has a high breaking capacity of 25kA at 415VAC and 10kA at 500VDC, ensuring efficient operation in various electrical systems.

Technical Specifications

Brand ABB
Impulse Withstand Voltage (kV/1.2µS) 8
AC Voltage (V) 230/400
Application Commercial and Industrial
Breaking Capacity (kA) 25 @400 V AC
Breaking Capacity 400V AC - Icu (kA) 25
Cable Cross Section - Flexible (mm²) Top/Bottom - 70/70
Cable Cross Section - Solid/Stranded (mm²) Top/Bottom - 50/50
Current Rating (A) 16
Curve Type C Curve
DC Voltage (V) 500
Degree of Protection IP20
Dimensions (mm) 95H x 82.5D x 106W
Family S800C
Housing Material Insulation group I, RAL 7035
Icn-Rated Short Circuit Capacity (kA) 15
Inc-Rated Conditional Short Circuit Capacity (kA) 25
Maximum Operational Voltage AC (V) 440
Maximum Operational Voltage DC (V) 500
Minimum Operational Voltage AC (V) 12
Mounting Type DIN Rail
No. of Poles 4P
Pole Width (mm) 27
Poles 4P
Pollution Degree 3
Power Loss (W) 3.1/Pole
Rated Conditional Short-Circuit Current - Inc (kA) 25
Rated Current (A) 16
Rated Frequency (Hz) 50/60
Rated Impulse Withstand Voltage (kV) 8
Rated Insulation Voltage (V) 500
Rated Operational Voltage AC (V) 230/400
Rated Operational Voltage DC (V) 500
Rated Short-Circuit Capacity - Icn (kA) 15
Rated Voltage AC (V) 400
Series S800C
Standards and Approvals AS/NZS 60898-1,AS/NZS 60947-2, UL 1077
Trip Curve C Curve
