Product Code: S804SK10

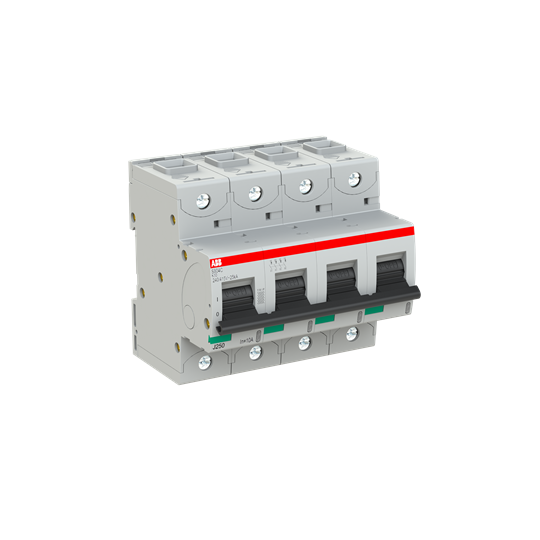

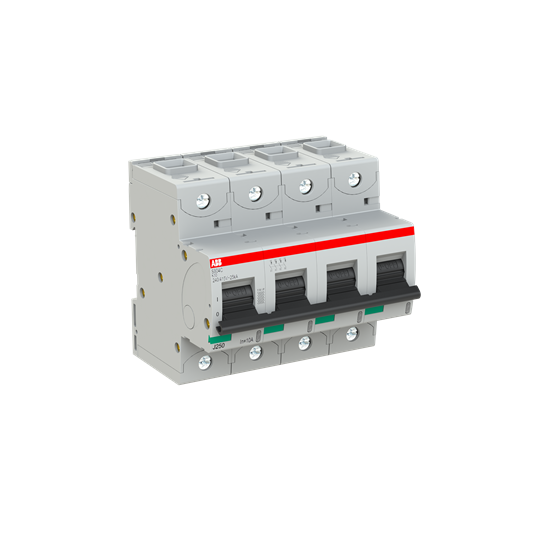

The S804S-K10 is a 4-pole High Performance Circuit breaker with K-Characteristic, with cage terminal and a rated current of 10 A. It is a current limiting device with a maximum breaking capacity of 50kA at 240/415V. It can be used for voltages up to 400/690V and in DC as well. It has two different tripping mechanisms, the thermal tripping mechanism for overload protection and the electromechanic tripping mechanism for short circuit protection. The S804S-K10 complies with IEC/EN 60898-1 and IEC/EN 60947-2 and allows the use for residential, commercial and industrial applications. It has numerous of approvals, therefore it can be used worldwide. The extensive range of accessory makes the use of S804S-K10 more comfortable. Due to the fast arc extinction of S804S-K10 your application will be secured.

Breaking Capacity 125V DC - Icu (kA)	30
Breaking Capacity 240/415V AC - Icu (kA)	50
Built-in Depth (mm)	82.5
Current Limiting Class	3
Minimum Temperature (°C)	-25
No. of Protected Poles	4
Release Type	K
Voltage Type	AC/DC
Brand	ABB
Impulse Withstand Voltage (kV/1.2µS)	8
AC Voltage (V)	400/690
Ambient Temperature Range (°C)	-25 to 60
Breaking Capacity (kA)	50 @240/415 V AC
Breaking Capacity 230V AC - Icu (kA)	50
Breaking Capacity 400V AC - Icu (kA)	6
Current Rating (A)	10
Curve Type	K Curve
DC Voltage (V)	500
Degree of Protection	IP20
Dimensions (mm)	106W x 95H x 82.5D
Mounting Type	DIN Rail
No. of Poles	4
Overvoltage Category	4
Poles	4P
Pollution Degree	3
Power Loss (W)	6
Rated Current (A)	10
Rated Frequency (Hz)	50
Rated Impulse Withstand Voltage (kV)	8
Rated Insulation Voltage (V)	690
Rated Operational Voltage AC (V)	400/690
Rated Operational Voltage DC (V)	500
Rated Voltage (V)	400
Standards and Approvals	IEC/EN 60947-2, IEC/EN 60898-1
Terminal Type	Screw
Trip Curve	K Curve
Width in Number of Modular Spacings	6
