Product Code: S803PVSP63

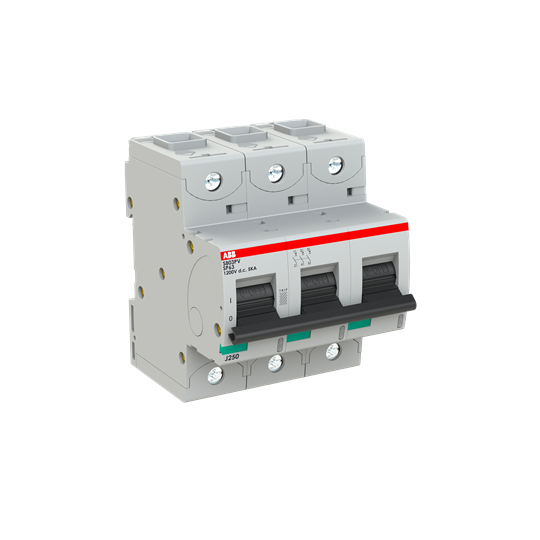

The S803PV-SP63 is a 3-pole High Performance Circuit breaker for photovoltaics (DC) with B-characteristic, with cage terminal and a rated current of 63 A. It is a current limiting device with a maximum breaking capacity of 5kA at 1200V. It can be used for voltages up to 1200V DC. It has two different tripping mechanisms, the thermal tripping mechanism for overload protection and the electromechanic tripping mechanism for short circuit protection. The S803PV-SP63 complies with IEC/EN 60947-2 and allows the use for industrial applications. It has numerous of approvals, therefore it can be used worldwide. The extensive range of accessory makes the use of S803PV-SP63 more comfortable. Due to the fast arc extinction of S803PV-SP63 your application will be secured.

Built-in Depth (mm)	82.5
Current Limiting Class	3
Minimum Temperature (°C)	-25
No. of Protected Poles	3
Release Type	B
Voltage Type	DC
Brand	ABB
Impulse Withstand Voltage (kV/1.2µS)	8
Breaking Capacity (kA)	5 @415 V AC
Breaking Capacity 415V AC - Icu (kA)	5
Current Rating (A)	63
Curve Type	B Curve
DC Voltage (V)	1200
Degree of Protection	IP20
Dimensions (mm)	81W x 95H x 82.5D
Family	S800PV
No. of Poles	3
Operational Temperature Range (°C)	-25 to +60
Overvoltage Category	3
Poles	3P
Pollution Degree	2
Power Loss (W)	19.2
Rated Current (A)	63
Rated Impulse Withstand Voltage (kV)	8
Rated Insulation Voltage (V)	1500
Rated Insulation Voltage DC (V)	1200
Rated Operational Voltage DC (V)	1200
Rated Voltage (V)	400
Series	S800PV
Trip Curve	B Curve
Width in Number of Modular Spacings	4.5

DIN MCB

ABB HIGH PERFORMANCE MCB, 5kA 3 POLE 63A B-CURVE 1200V DC S803PVSP63
