Product Code: S803SC6

The S803S-C6 is a 3-pole High Performance Circuit breaker with C-characteristic, with cage terminal and a rated current of 6 A. It is a current limiting device with a maximum breaking capacity of 50kA at 240/415V. It can be used for voltages up to 400/690V and in DC as well. It has two different tripping mechanisms, the thermal tripping mechanism for overload protection and the electromechanic tripping mechanism for short circuit protection. The S803S-C6 complies with IEC/EN 60947-2 and allows the use for industrial applications. It has numerous of approvals, therefore it can be used worldwide. The extensive range of accessory makes the use of S803S-C6 more comfortable. Due to the fast arc extinction of S803S-C6 your application will be secured.

Built-in Depth (mm)	82.5
Current Limiting Class	3
Minimum Temperature (°C)	-25
No. of Protected Poles	3
Release Type	C
Voltage Type	AC/DC
Brand	ABB
Impulse Withstand Voltage (kV/1.2µS)	8
AC Voltage (V)	400/690
Application	Commercial and Industrial
Breaking Capacity (kA)	50 @400 V AC
Breaking Capacity 230V AC - Icu (kA)	50
Breaking Capacity 400V AC - Icu (kA)	6
Cable Cross Section - Flexible (mm²)	Top/Bottom - 70/70
Cable Cross Section - Solid/Stranded (mm²)	Top/Bottom - 50/50
Current Rating (A)	6
Curve Type	C Curve
DC Voltage (V)	375
Degree of Protection	IP20
Dimensions (mm)	81W x 95H x 82.5D
Family	S800S
Housing Material	Insulation Group I, RAL 7035
Icn-Rated Short Circuit Capacity (kA)	25
Inc-Rated Conditional Short Circuit Capacity (kA)	50
Maximum Operational Voltage AC (V)	690
Maximum Operational Voltage DC (V)	375
Mounting Type	DIN Rail
No. of Poles	3
Overvoltage Category	4
Pole Width (mm)	27
Poles	3P
Pollution Degree	3
Power Loss (W)	5.4
Rated Conditional Short-Circuit Current - Inc (kA)	50
Rated Current (A)	6
Rated Frequency (Hz)	50
Rated Impulse Withstand Voltage (kV)	8
Rated Insulation Voltage (V)	690
Rated Operational Voltage AC (V)	400/690
Rated Operational Voltage DC (V)	375
Rated Short-Circuit Capacity - Icn (kA)	25
Rated Voltage (V)	400
Rated Voltage AC (V)	400
Series	S800S
Standards and Approvals	AS/NZS 60898-1,AS/NZS 60947-2, UL 1077
Trip Curve	C Curve
Width in Number of Modular Spacings	4.5

DIN MCB

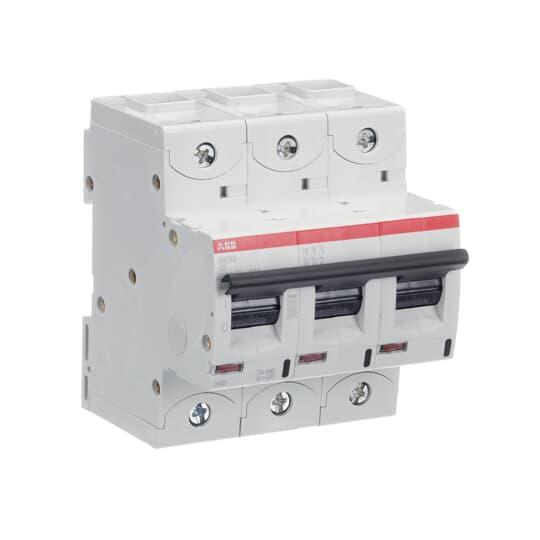

ABB S803SC6 HIGH PERF. MCB 50kA 3P 6A 415VAC C CURVE
