Product Code: S803SC50

The S803S-C50 is a 3-pole High Performance Circuit breaker with C-characteristic, with cage terminal and a rated current of 50 A. It is a current limiting device with a maximum breaking capacity of 50kA at 240/415V. It can be used for voltages up to 400/690V and in DC as well. It has two different tripping mechanisms, the thermal tripping mechanism for overload protection and the electromechanic tripping mechanism for short circuit protection. The S803S-C50 complies with IEC/EN 60898-1 and IEC/EN 60947-2 and allows the use for residential, commercial and industrial applications. It has numerous of approvals, therefore it can be used worldwide. The extensive range of accessory makes the use of S803S-C50 more comfortable. Due to the fast arc extinction of S803S-C50 your application will be secured.

Built-in Depth (mm)	82.5
Current Limiting Class	3
Minimum Temperature (°C)	-25
No. of Protected Poles	3
Release Type	C
Voltage Type	AC/DC
Brand	ABB
Impulse Withstand Voltage (kV/1.2µS)	8
AC Voltage (V)	400/690
Application	Commercial and Industrial
Breaking Capacity (kA)	50 @400 V AC
Breaking Capacity 230V AC - Icu (kA)	50
Breaking Capacity 400V AC - Icu (kA)	6
Cable Cross Section - Flexible (mm²)	Top/Bottom - 70/70
Cable Cross Section - Solid/Stranded (mm²)	Top/Bottom - 50/50
Current Rating (A)	50
Curve Type	C Curve
DC Voltage (V)	375
Degree of Protection	IP20
Dimensions (mm)	81W x 95H x 82.5D
Family	S800S
Housing Material	Insulation Group I, RAL 7035
Icn-Rated Short Circuit Capacity (kA)	25
Inc-Rated Conditional Short Circuit Capacity (kA)	50
Maximum Operational Voltage AC (V)	690
Maximum Operational Voltage DC (V)	375
Mounting Type	DIN Rail
No. of Poles	3
Overvoltage Category	4
Pole Width (mm)	27
Poles	3P
Pollution Degree	3
Power Loss (W)	12.9
Rated Conditional Short-Circuit Current - Inc (kA)	50
Rated Current (A)	50
Rated Frequency (Hz)	50
Rated Impulse Withstand Voltage (kV)	8
Rated Insulation Voltage (V)	690
Rated Operational Voltage AC (V)	400/690
Rated Operational Voltage DC (V)	375
Rated Short-Circuit Capacity - Icn (kA)	25
Rated Voltage (V)	400
Rated Voltage AC (V)	400
Series	S800S
Standards and Approvals	AS/NZS 60898-1,AS/NZS 60947-2, UL 1077
Trip Curve	C Curve
Width in Number of Modular Spacings	4.5

DIN MCB

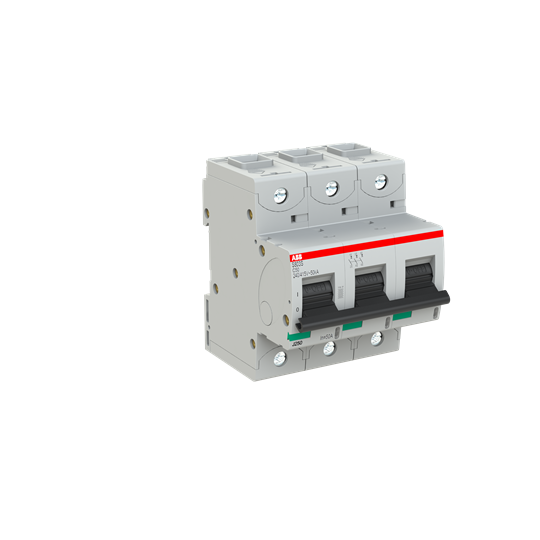

ABB S803SC50 HIGH PERF. MCB 50kA 3P 50A 415VAC C CURVE
