Brand	ABB
Impulse Withstand Voltage (kV/1.2µS)	4
AC Voltage (V)	400/415
Application	Commercial and Industrial
Breaking Capacity (kA)	15 @400 V AC
Breaking Capacity 400V AC - Icu (kA)	15
Busbar Cross Section (mm²)	Top/Bottom - 10/10
Cable Cross Section - Flexible (mm²)	Top/Bottom - 25/25
Cable Cross Section - Solid/Stranded (mm²)	Top/Bottom - 35/35
Current Rating (A)	10
Curve Type	C Curve
DC Voltage (V)	440
Degree of Protection	IP20
Dimensions (mm)	85H x 69D x 35W
Family	S200MUC
Housing Material	Insulation group I, RAL 7035
Icn-Rated Short Circuit Capacity (kA)	10
Inc-Rated Conditional Short Circuit Capacity (kA)	15
Maximum Operational Voltage AC (V)	440
Maximum Operational Voltage DC (V)	500
Minimum Operational Voltage AC (V)	12
Minimum Operational Voltage DC (V)	12
Mounting Type	DIN Rail
No. of Poles	2P
Pole Width (mm)	17.5
Poles	2P
Pollution Degree	2
Power Loss (W)	1.69/Pole
Rated Conditional Short-Circuit Current - Inc (kA)	15
Rated Current (A)	10
Rated Frequency (Hz)	50/60
Rated Impulse Withstand Voltage (kV)	4
Rated Insulation Voltage (V)	484
Rated Operational Voltage AC (V)	400
Rated Operational Voltage DC (V)	440
Rated Short-Circuit Capacity - Icn (kA)	10
Rated Voltage AC (V)	400
Series	S200MUC
Standards and Approvals	AS/NZS 60898-1,AS/NZS 60947-2,UL 1077
Trip Curve	C Curve

DIN MCB

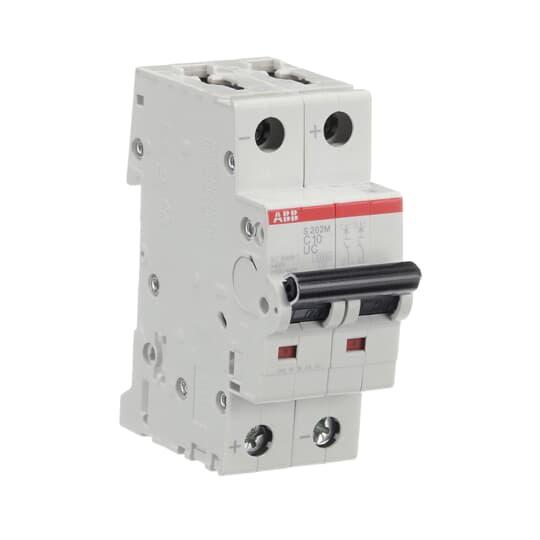

ABB S202MC10UC MCB 10kA 2P 10A 440VDC C CURVE INDUSTRIAL
