Product Code: S802NC50

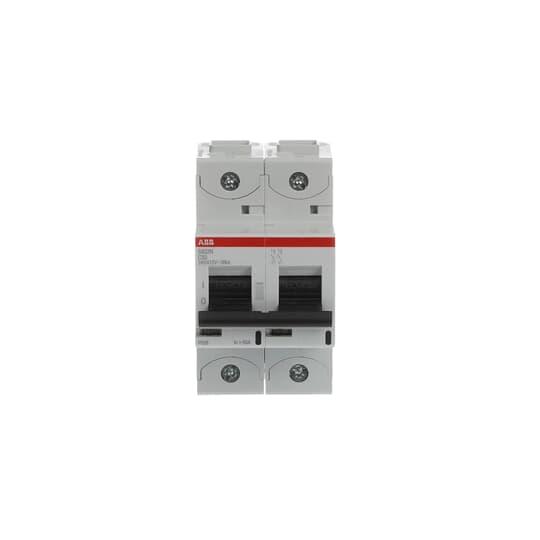

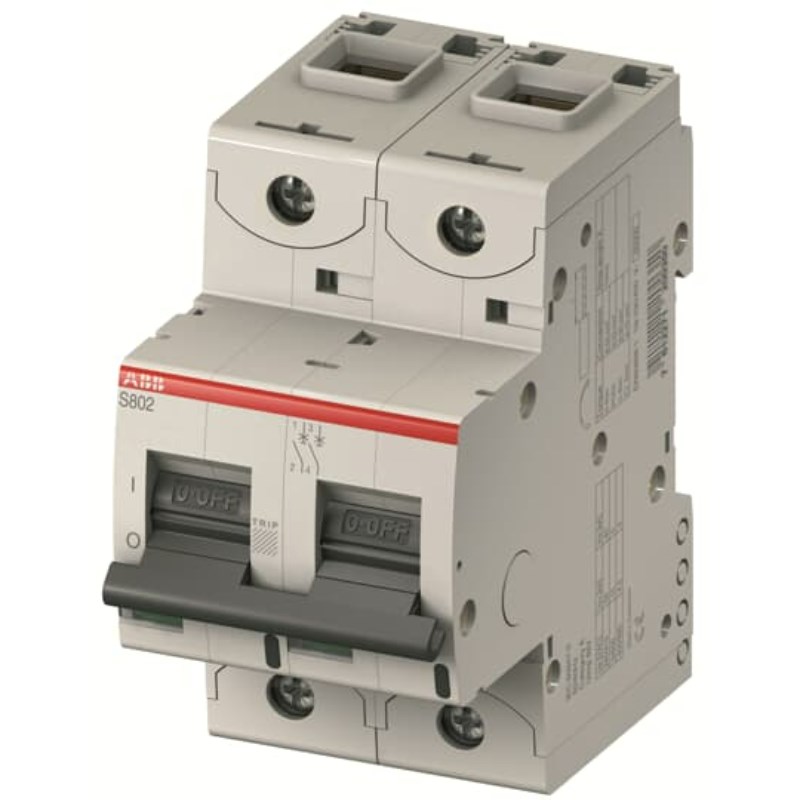

The ABB Miniature Circuit Breaker is a high-performance device designed for commercial and industrial applications. With a 36kA rating at 415VAC and 20kA rating at 250VDC, it provides reliable protection against short circuits and thermal overload. This 2-pole breaker has a C curve and can handle up to 50A of current. Its compact design features a 27mm pole width, making it suitable for various installations. Trust ABB for quality and performance in circuit protection.

Brand	ABB
Impulse Withstand Voltage (kV/1.2µS)	8
AC Voltage (V)	400/690
Application	Commercial and Industrial
Breaking Capacity (kA)	36 @400 V AC
Breaking Capacity 400V AC - Icu (kA)	36
Cable Cross Section - Flexible (mm²)	Top/Bottom - 70/70
Cable Cross Section - Solid/Stranded (mm²)	Top/Bottom - 50/50
Current Rating (A)	50
Curve Type	C Curve
DC Voltage (V)	250
Degree of Protection	IP20
Dimensions (mm)	95H x 82.5D x 54W
Family	S800N
Housing Material	Insulation group I, RAL 7035
Icn-Rated Short Circuit Capacity (kA)	20
Inc-Rated Conditional Short Circuit Capacity (kA)	36
Maximum Operational Voltage AC (V)	690
Maximum Operational Voltage DC (V)	250
Minimum Operational Voltage AC (V)	12
Mounting Type	DIN Rail
No. of Poles	2P
Pole Width (mm)	27
Poles	2P
Pollution Degree	3
Power Loss (W)	4.3/Pole
Rated Conditional Short-Circuit Current - Inc (kA)	36
Rated Current (A)	50
Rated Frequency (Hz)	50/60
Rated Impulse Withstand Voltage (kV)	8
Rated Insulation Voltage (V)	690
Rated Operational Voltage AC (V)	400/690
Rated Operational Voltage DC (V)	250
Rated Short-Circuit Capacity - Icn (kA)	20
Rated Voltage AC (V)	400
Series	S800N
Standards and Approvals	AS/NZS 60898-1,AS/NZS 60947-2
Trip Curve	C Curve

DIN MCB

ABB S802NC50 HIGH PERF. MCB 36kA 2P 50A 415VAC C CURVE

Product Code: S802NC50
