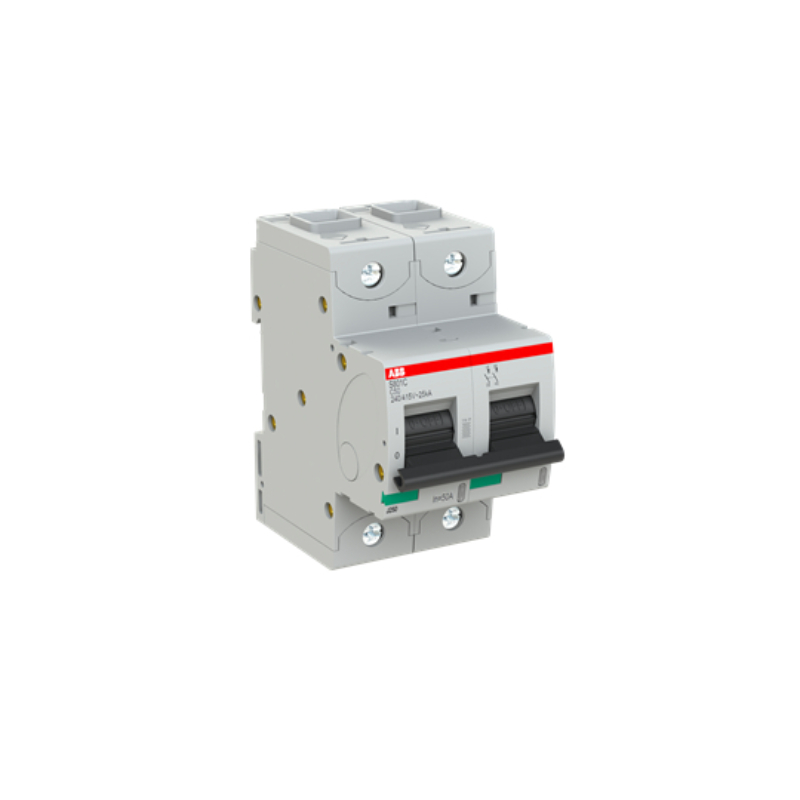

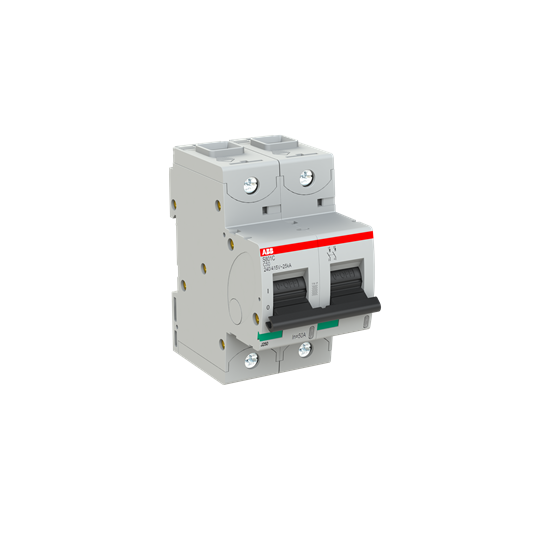

ABB S802CC50 HIGH PERF. MCB 25kA 2P 50A 415VAC C CURVE

Product Code: S802CC50

The ABB High Performance Miniature Circuit Breaker is designed for commercial and industrial use. It has a 2 pole configuration with a 50A capacity. The circuit breaker offers C curve protection against short circuits and thermal overload. It can handle a maximum current of 25kA at 415VAC and 10kA at 250VDC. With a pole width of 27mm, this circuit breaker provides reliable and efficient electrical protection.

Technical Specifications

Brand ABB
Impulse Withstand Voltage (kV/1.2µS) 8
AC Voltage (V) 230/400
Application Commercial and Industrial
Breaking Capacity (kA) 25 @400 V AC
Breaking Capacity 400V AC - Icu (kA) 25
Cable Cross Section - Flexible (mm²) Top/Bottom - 70/70
Cable Cross Section - Solid/Stranded (mm²) Top/Bottom - 50/50
Current Rating (A) 50
Curve Type C Curve
DC Voltage (V) 250
Degree of Protection IP20
Dimensions (mm) 95H x 82.5D x 54W
Family S800C
Housing Material Insulation group I, RAL 7035
Icn-Rated Short Circuit Capacity (kA) 15
Inc-Rated Conditional Short Circuit Capacity (kA) 25
Maximum Operational Voltage AC (V) 440
Maximum Operational Voltage DC (V) 250
Minimum Operational Voltage AC (V) 12
Mounting Type DIN Rail
No. of Poles 2P
Pole Width (mm) 27
Poles 2P
Pollution Degree 3
Power Loss (W) 4.3/Pole
Rated Conditional Short-Circuit Current - Inc (kA) 25
Rated Current (A) 50
Rated Frequency (Hz) 50/60
Rated Impulse Withstand Voltage (kV) 8
Rated Insulation Voltage (V) 500
Rated Operational Voltage AC (V) 230/400
Rated Operational Voltage DC (V) 250
Rated Short-Circuit Capacity - Icn (kA) 15
Rated Voltage AC (V) 400
Series S800C
Standards and Approvals AS/NZS 60898-1,AS/NZS 60947-2, UL 1077
Trip Curve C Curve
