Brand	ABB
Degree of Protection	IP20
Dimensions (mm)	35W x 88H x 69D
Family	SH200
Icn-Rated Short Circuit Capacity (kA)	6
Inc-Rated Conditional Short Circuit Capacity (kA)	6
Mounting Type	DIN Rail
No. of Poles	2P
Pollution Degree	2
Power Loss (W)	9.6
Rated Current (A)	40
Rated Frequency (Hz)	50/60
Rated Impulse Withstand Voltage (kV)	4
Rated Insulation Voltage (V)	440
Rated Operational Voltage (V)	400
Standards and Approvals	IEC/EN 60898-1
Trip Curve	C Curve
Weight (kg)	0.25

DIN MCB

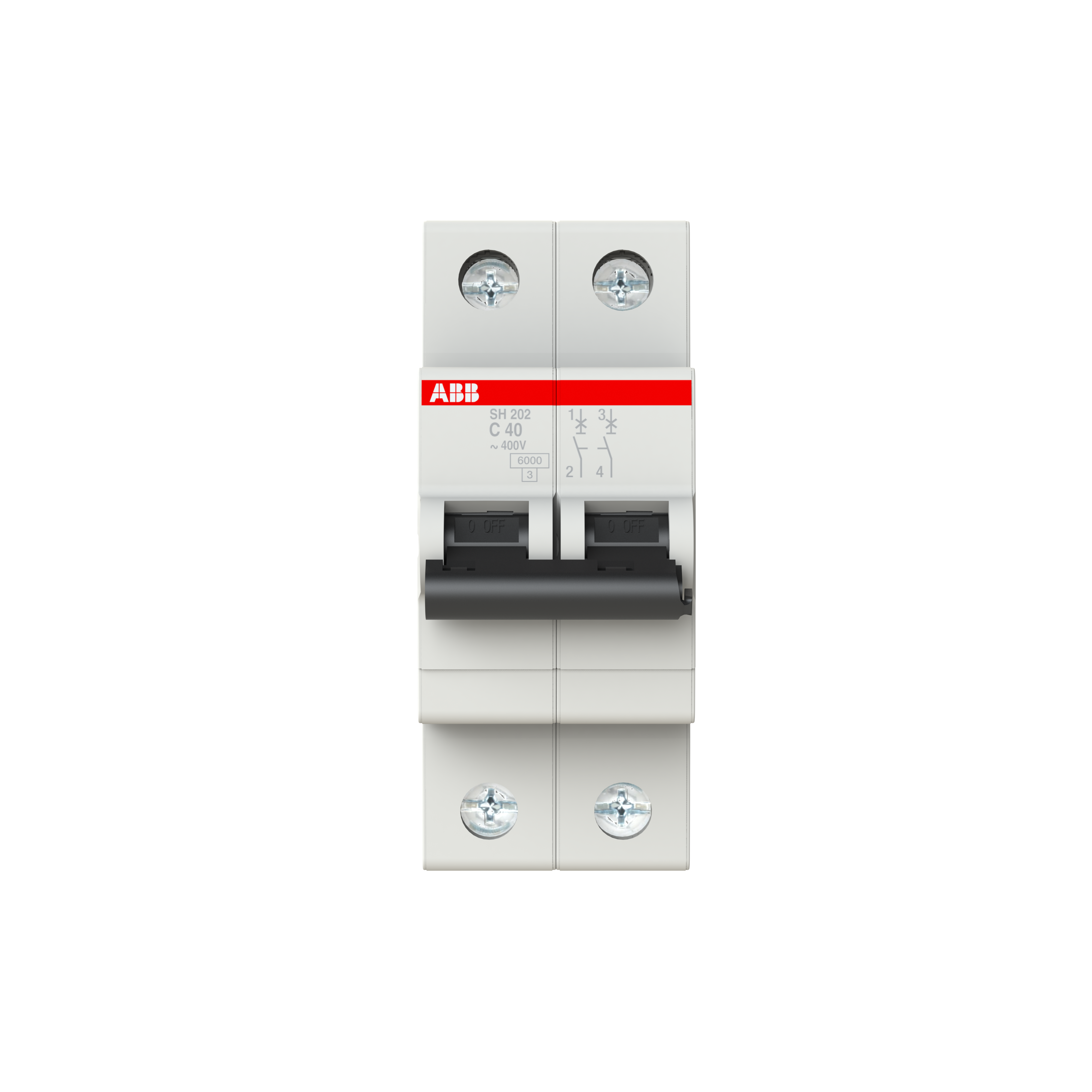

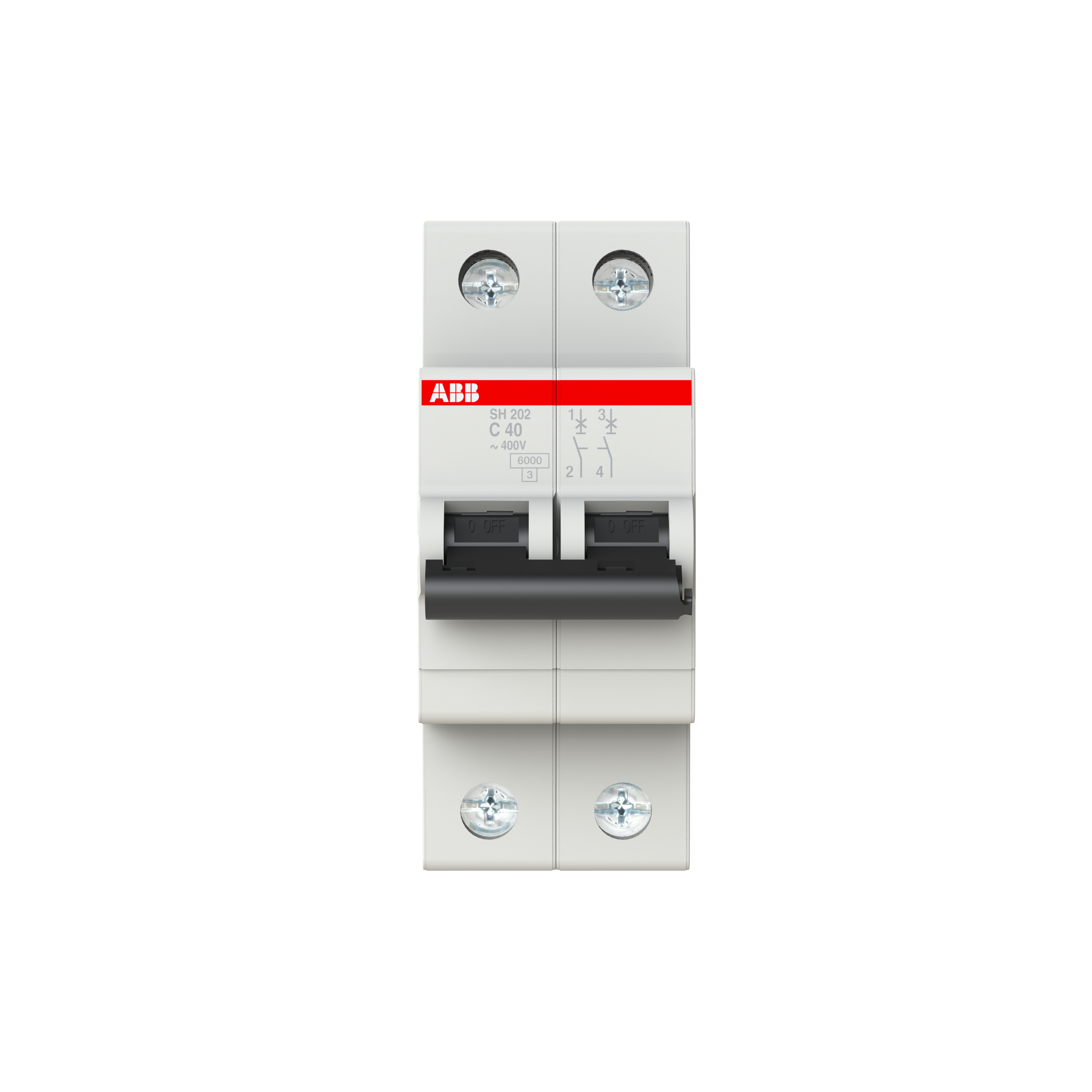

ABB MCB 2 POLE 40A 6kA C CURVE SH202C40
