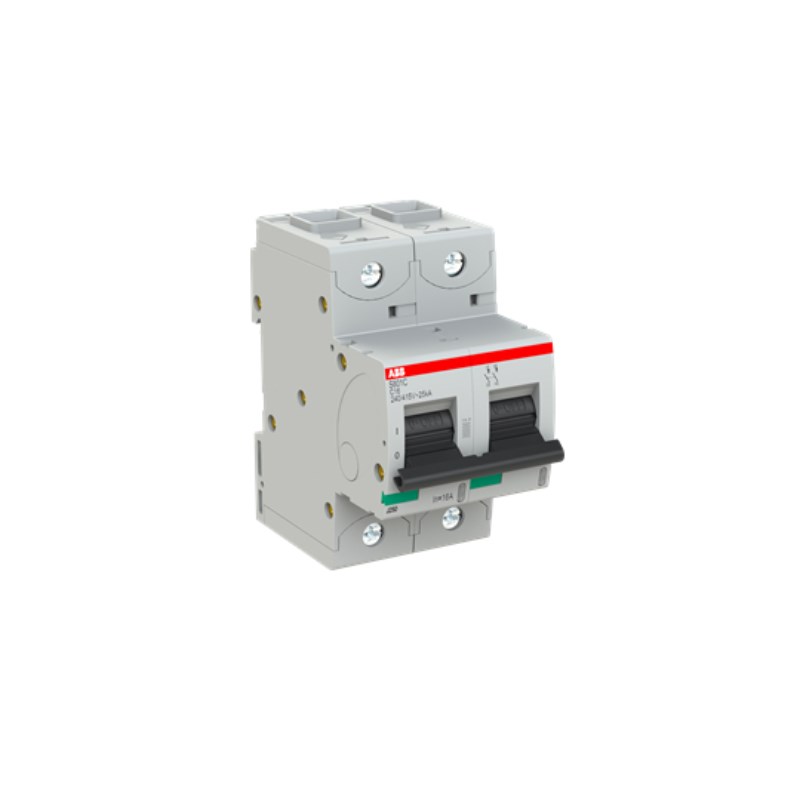

ABB S802CC16 HIGH PERF. MCB 25kA 2P 16A 415VAC C CURVE

Product Code: S802CC16

ABB's high performance Miniature Circuit Breaker offers reliable protection against short circuit and thermal overload. With a 25kA rating at 415VAC and 10kA rating at 250VDC, this 2 pole breaker is designed for commercial and industrial applications. It has a C curve protection characteristic and a pole width of 27mm. Trust ABB for top-notch circuit breaker solutions.

Technical Specifications

Brand ABB
Impulse Withstand Voltage (kV/1.2µS) 8
AC Voltage (V) 230/400
Application Commercial and Industrial
Breaking Capacity (kA) 25 @400 V AC
Breaking Capacity 400V AC - Icu (kA) 25
Cable Cross Section - Flexible (mm²) Top/Bottom - 70/70
Cable Cross Section - Solid/Stranded (mm²) Top/Bottom - 50/50
Current Rating (A) 16
Curve Type C Curve
DC Voltage (V) 250
Degree of Protection IP20
Dimensions (mm) 95H x 82.5D x 54W
Family S800C
Housing Material Insulation group I, RAL 7035
Icn-Rated Short Circuit Capacity (kA) 15
Inc-Rated Conditional Short Circuit Capacity (kA) 25
Maximum Operational Voltage AC (V) 440
Maximum Operational Voltage DC (V) 250
Minimum Operational Voltage AC (V) 12
Mounting Type DIN Rail
No. of Poles 2P
Pole Width (mm) 27
Poles 2P
Pollution Degree 3
Power Loss (W) 3.1/Pole
Rated Conditional Short-Circuit Current - Inc (kA) 25
Rated Current (A) 16
Rated Frequency (Hz) 50/60
Rated Impulse Withstand Voltage (kV) 8
Rated Insulation Voltage (V) 500
Rated Operational Voltage AC (V) 230/400
Rated Operational Voltage DC (V) 250
Rated Short-Circuit Capacity - Icn (kA) 15
Rated Voltage AC (V) 400
Series S800C
Standards and Approvals AS/NZS 60898-1,AS/NZS 60947-2, UL 1077
Trip Curve C Curve
