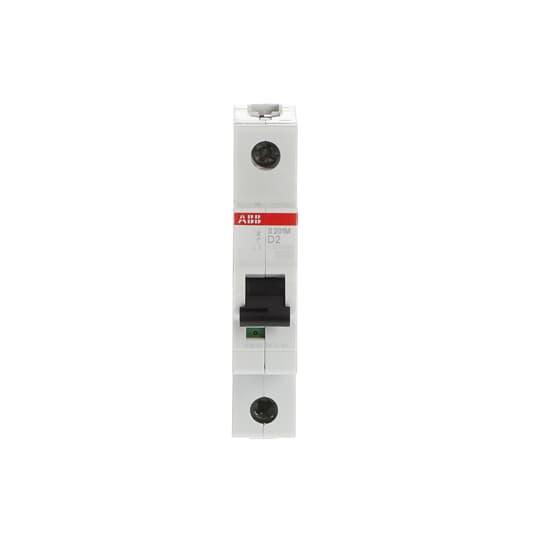

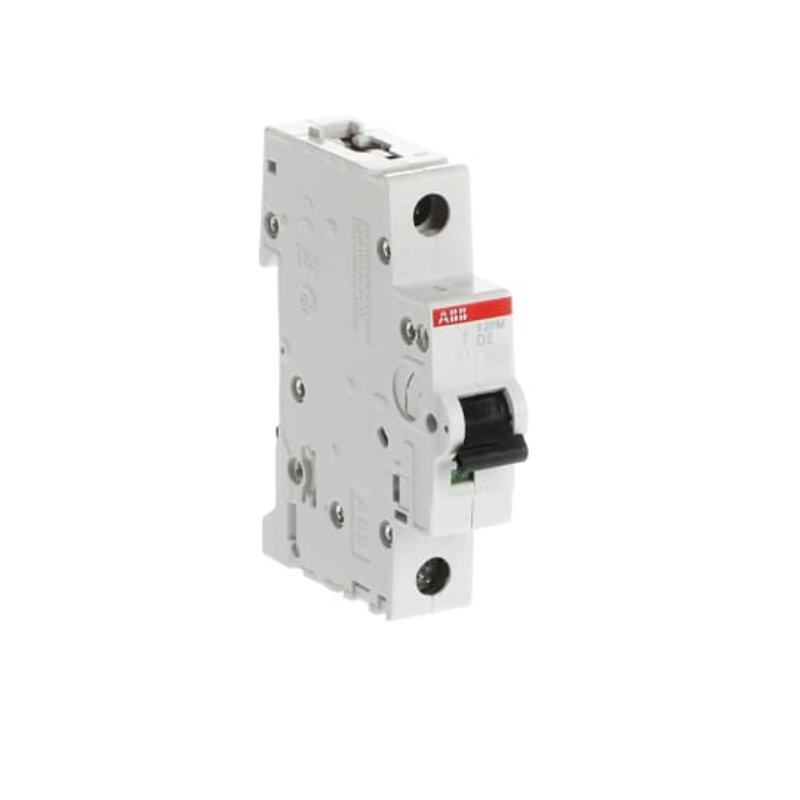

ABB S201MD2 MCB 10kA 1P 2A 230VAC D CURVE INDUSTRIAL

Product Code: S201MD2

The ABB Miniature Circuit Breaker is designed for commercial and industrial use. It offers 10kA protection at 230VAC and 15kA protection at 60VDC. With a single pole and a rating of 2A, it provides D curve protection against both short circuits and thermal overload.

Technical Specifications

Housing Material Insulation Group II, RAL 7035
Brand ABB
Series S200M
Busbar Cross Section (mm²) Top/Bottom - 10/10
Cable Cross Section - Flexible (mm²) Top/Bottom - 25/25
Cable Cross Section - Solid/Stranded (mm²) Top/Bottom - 35/35
Mounting Type DIN Rail
AC Voltage (V) 230/400
Application Commercial and Industrial
Breaking Capacity 230V AC - Icu (kA) 15
Current Rating (A) 2
Curve Type D Curve
Family S200M
Icn-Rated Short Circuit Capacity (kA) 10
Impulse Withstand Voltage (kV/1.2µS) 4
Maximum Operational Voltage AC (V) 253
Maximum Operational Voltage DC (V) 72
Minimum Operational Voltage AC (V) 12
Minimum Operational Voltage DC (V) 12
No. of Poles 1P
Power Loss (W) 1.65/Pole
Rated Conditional Short-Circuit Current - Inc (kA) 15
Rated Current (A) 2
Rated Frequency (Hz) 50/60
Rated Impulse Withstand Voltage (kV) 4
Rated Insulation Voltage (V) 440
Rated Operational Voltage AC (V) 230/400
Rated Short-Circuit Capacity - Icn (kA) 10
Rated Voltage AC (V) 230
Dimensions (mm) 88H x 69D x 17.5W
Trip Curve D Curve
Pole Width (mm) 17.5
Degree of Protection IP20
Pollution Degree 3
Standards and Approvals AS/NZS 60898-1,AS/NZS 60947-2,UL 1077
Poles 1P
Breaking Capacity (kA) 15 @230 V AC
Inc-Rated Conditional Short Circuit Capacity (kA) 15
