Brand	ABB
Impulse Withstand Voltage (kV/1.2µS)	4
AC Voltage (V)	230/400
Application	Commercial and Industrial
Breaking Capacity (kA)	15 @230 V AC
Breaking Capacity 230V AC - Icu (kA)	15
Busbar Cross Section (mm²)	Top/Bottom - 10/10
Cable Cross Section - Flexible (mm²)	Top/Bottom - 25/25
Cable Cross Section - Solid/Stranded (mm²)	Top/Bottom - 35/35
Current Rating (A)	25
Curve Type	C Curve
Degree of Protection	IP20
Dimensions (mm)	88H x 69D x 17.5W
Family	S200M
Housing Material	Insulation Group II, RAL 7035
Icn-Rated Short Circuit Capacity (kA)	10
Inc-Rated Conditional Short Circuit Capacity (kA)	15
Maximum Operational Voltage AC (V)	253
Maximum Operational Voltage DC (V)	72
Minimum Operational Voltage AC (V)	12
Minimum Operational Voltage DC (V)	12
Mounting Type	DIN Rail
No. of Poles	1P
Pole Width (mm)	17.5
Poles	1P
Pollution Degree	3
Power Loss (W)	3.2/Pole
Rated Conditional Short-Circuit Current - Inc (kA)	15
Rated Current (A)	25
Rated Frequency (Hz)	50/60
Rated Impulse Withstand Voltage (kV)	4
Rated Insulation Voltage (V)	440
Rated Operational Voltage AC (V)	230/400
Rated Short-Circuit Capacity - Icn (kA)	10
Rated Voltage AC (V)	230
Series	S200M
Standards and Approvals	AS/NZS 60898-1,AS/NZS 60947-2,UL 1077
Trip Curve	C Curve

DIN MCB

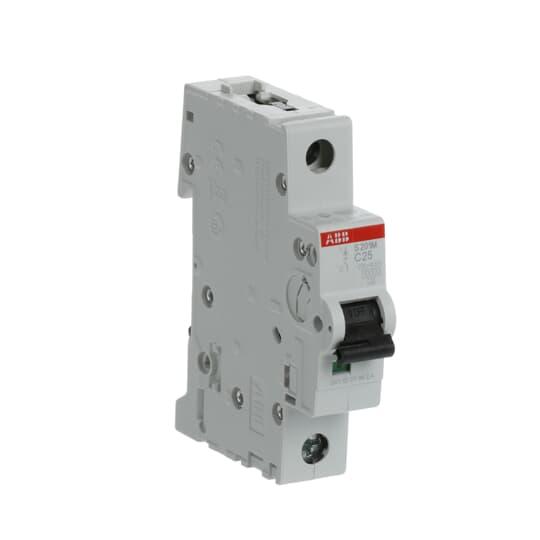

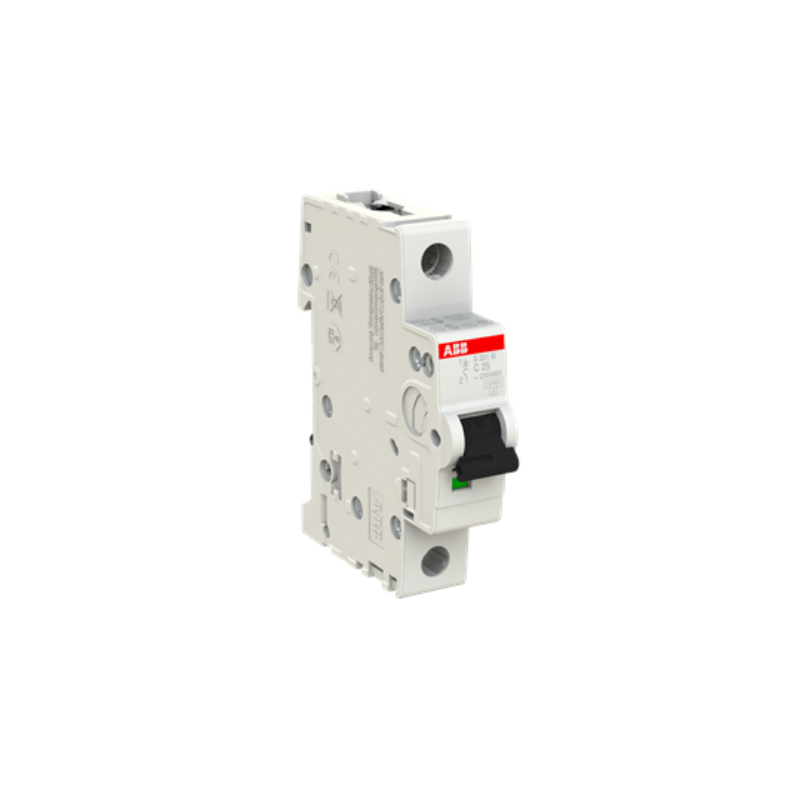

ABB S201MC25 MCB 10kA 1P 25A 230VAC C CURVE INDUSTRIAL
