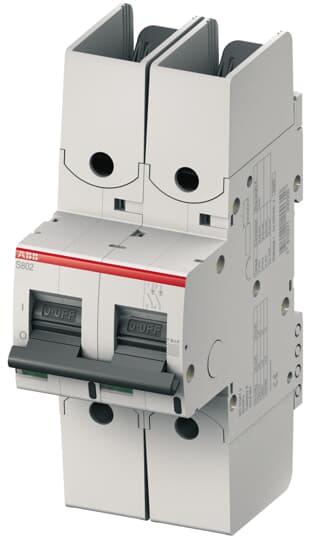

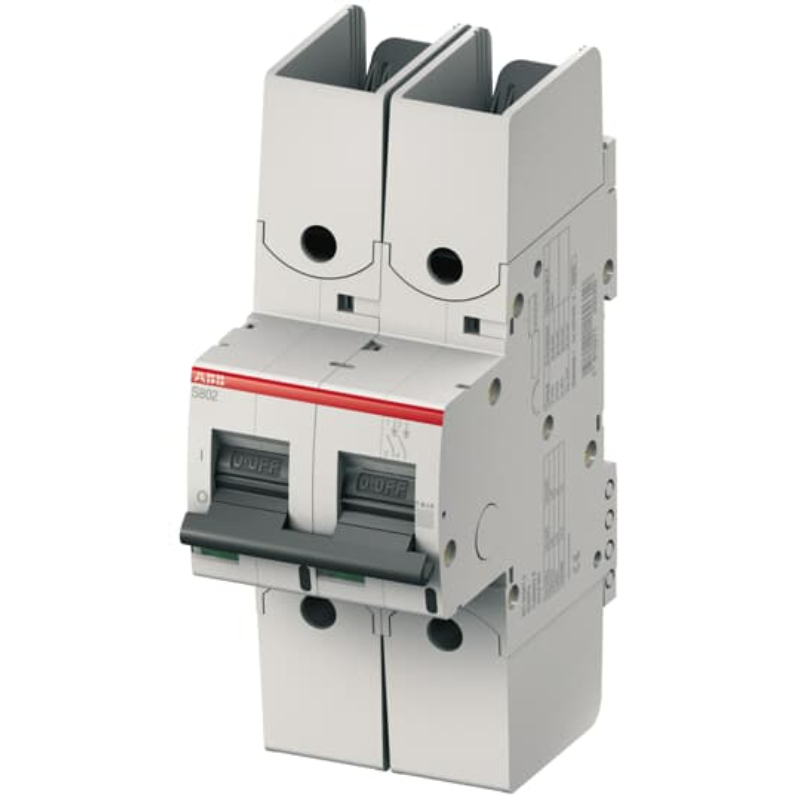

ABB HIGH-PERFORMANCE MCB 2P 1A K CURVE 1.5KA S802HVK1

Product Code: S802HVK1

The High-Performance MCB 2P is a circuit breaker with a rated current of 10A. It has a tripping characteristic of K and a rated ultimate short-circuit breaking capacity (Icu) of 1.5kA at 580/1000VAC. This MCB features cage terminals and long separating plates for easy installation. It is designed for DIN rail mounting and has an IP20 rating for protection against solid objects.

Technical Specifications

Brand ABB
Impulse Withstand Voltage (kV/1.2µS) 8
Current Rating (A) 1
Curve Type K Curve
Dimensions (mm) 54Wx142Hx82.5D
Family S800HV
No. of Poles 2P
Operational Temperature Range (°C) -25 to +60
Poles 2P
Rated Current (A) 1
Rated Frequency (Hz) 50/60
Rated Impulse Withstand Voltage (kV) 8
Series S800HV
Terminal Type Screw Terminals
Trip Curve K Curve
