Product Code: S801CC32

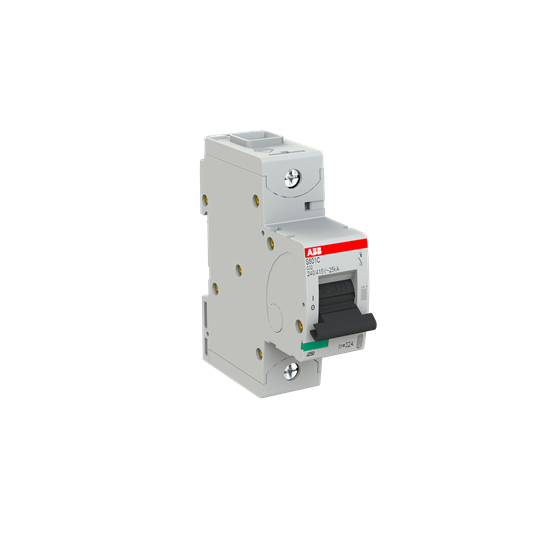

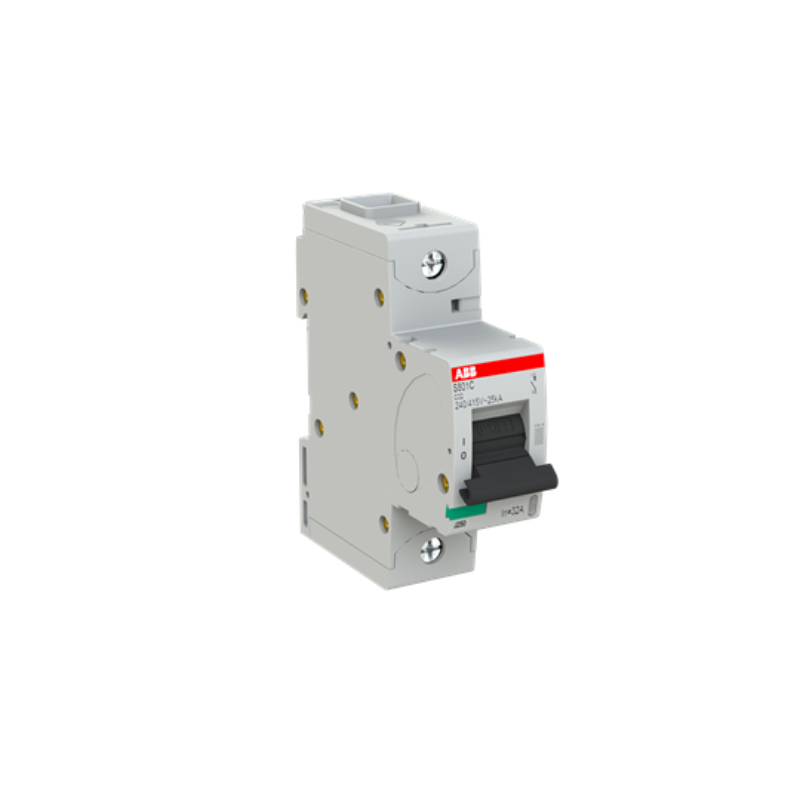

The ABB Miniature Circuit Breaker is a high-performance device designed for commercial and industrial applications. With a 1 Pole configuration and a 32A rating, it provides reliable protection against short circuits and thermal overload. The circuit breaker has a C curve characteristic and can handle up to 25kA at 240VAC and 10kA at 125VDC. It features a compact design with a pole width of 27mm, making it suitable for various installation requirements. Trust ABB for quality and performance in circuit protection.

Brand	ABB
Impulse Withstand Voltage (kV/1.2µS)	8
AC Voltage (V)	230/400
Application	Commercial and Industrial
Breaking Capacity (kA)	25 @230 V AC
Breaking Capacity 230V AC - Icu (kA)	25
Cable Cross Section - Flexible (mm²)	Top/Bottom - 70/70
Cable Cross Section - Solid/Stranded (mm²)	Top/Bottom - 50/50
Current Rating (A)	32
Curve Type	C Curve
DC Voltage (V)	125
Degree of Protection	IP20
Dimensions (mm)	95H x 82.5D x 27W
Family	S800C
Housing Material	Insulation group I, RAL 7035
Icn-Rated Short Circuit Capacity (kA)	15
Inc-Rated Conditional Short Circuit Capacity (kA)	25
Maximum Operational Voltage AC (V)	254
Maximum Operational Voltage DC (V)	125
Minimum Operational Voltage AC (V)	12
Mounting Type	DIN Rail
No. of Poles	1P
Pole Width (mm)	27
Poles	1P
Pollution Degree	3
Power Loss (W)	3.2/Pole
Rated Conditional Short-Circuit Current - Inc (kA)	25
Rated Current (A)	32
Rated Frequency (Hz)	50/60
Rated Impulse Withstand Voltage (kV)	8
Rated Insulation Voltage (V)	500
Rated Operational Voltage AC (V)	230/400
Rated Operational Voltage DC (V)	125
Rated Short-Circuit Capacity - Icn (kA)	15
Rated Voltage AC (V)	230
Series	S800C
Standards and Approvals	AS/NZS 60898-1,AS/NZS 60947-2, UL 1077
Trip Curve	C Curve

DIN MCB

ABB S801CC32 HIGH PERF. MCB 25kA 1P 32A 240VAC C CURVE
