Brand	ABB
Impulse Withstand Voltage (kV/1.2µS)	4
AC Voltage (V)	230/240
Application	Commercial and Industrial
Breaking Capacity (kA)	10 @230 V AC
Breaking Capacity 230V AC - Icu (kA)	10
Busbar Cross Section (mm²)	Top/Bottom - 10/10
Cable Cross Section - Flexible (mm²)	Top/Bottom - 25/25
Cable Cross Section - Solid/Stranded (mm²)	Top/Bottom - 35/35
Current Rating (A)	25
Curve Type	C Curve
DC Voltage (V)	220
Degree of Protection	IP20
Dimensions (mm)	85H x 69D x 17.5W
Family	S200MUC
Housing Material	Insulation group I, RAL 7035
Icn-Rated Short Circuit Capacity (kA)	10
Inc-Rated Conditional Short Circuit Capacity (kA)	10
Maximum Operational Voltage AC (V)	253
Maximum Operational Voltage DC (V)	250
Minimum Operational Voltage AC (V)	12
Minimum Operational Voltage DC (V)	12
Mounting Type	DIN Rail
No. of Poles	1P
Pole Width (mm)	17.5
Poles	1P
Pollution Degree	2
Power Loss (W)	2.62/Pole
Rated Conditional Short-Circuit Current - Inc (kA)	10
Rated Current (A)	25
Rated Frequency (Hz)	50/60
Rated Impulse Withstand Voltage (kV)	4
Rated Insulation Voltage (V)	484
Rated Operational Voltage AC (V)	230
Rated Operational Voltage DC (V)	220
Rated Short-Circuit Capacity - Icn (kA)	10
Rated Voltage AC (V)	230
Series	S200MUC
Standards and Approvals	AS/NZS 60898-1,AS/NZS 60947-2,UL 1077
Trip Curve	C Curve

DIN MCB

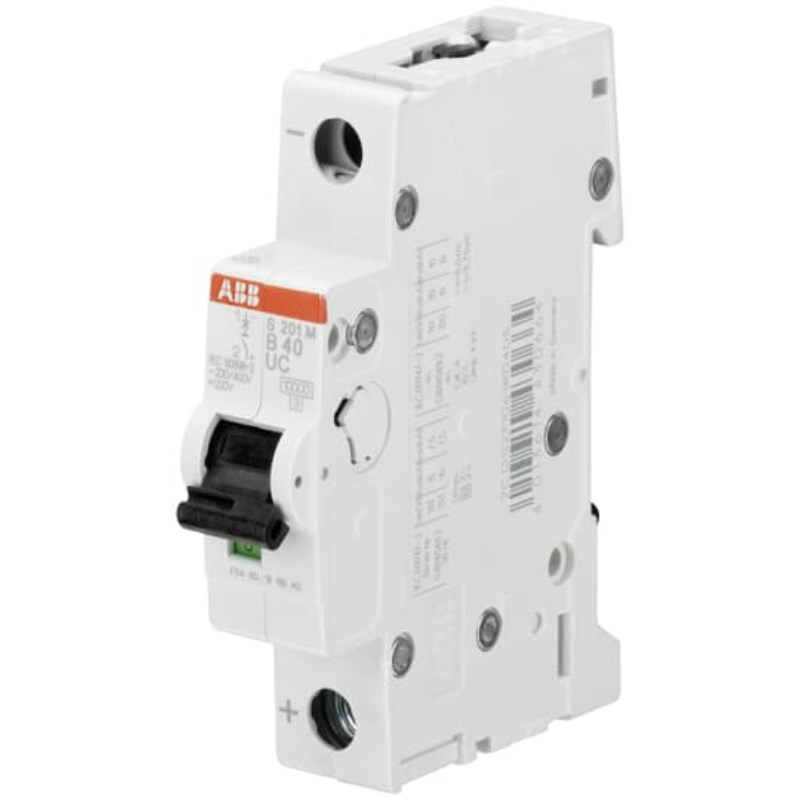

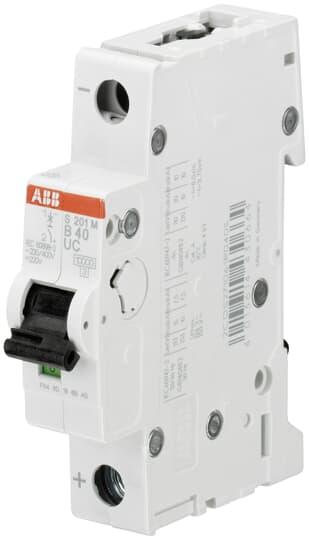

ABB S201MC25UC MCB 10kA 1P 25A 220VDC C CURVE INDUSTRIAL
